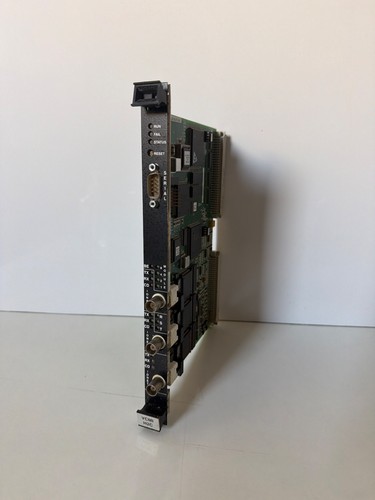

The GE IS215VCMIH2CC is a VCMI (VME Communication Module Interface) card designed for the GE Mark VI turbine control system. This module acts as the critical bridge between the control rack and the system network, facilitating high-speed data communication between the controller, the I/O processors, and the operator interface (HMI). It is a core component for maintaining network integrity and synchronization in large-scale turbine control environments.
Product Specifications
| Feature | Specification |
| Model | GE IS215VCMIH2CC |
| Series | Mark VI |
| Board Type | VCMI Communication Module |
| Weight | Approx. 0.7 kg |
| Compatibility | GE Mark VI Control System |
| Dimensions | Standard Mark VI VME board form factor |
| Origin | United States |
Applications
The VCMI card is vital for the operational communication architecture of GE control systems:
- Managing communication between the Mark VI controller and remote I/O
- Facilitating data exchange with HMI/SCADA systems
- Supporting system synchronization and diagnostic reporting
- Ensuring real-time data throughput for turbine monitoring
Usage Instructions
- Handling: This board is an ESD-sensitive device. Always use an anti-static wrist strap and handle by the edges to avoid contact with circuitry.
- Installation: Ensure the rack is powered down. Align the VCMI card with the correct VME backplane slot in the Mark VI controller rack and slide it in until the connectors seat firmly.
- Cabling: Secure the communication cables (often fiber optic or high-speed serial) to the front panel ports. Ensure the cables are routed correctly to avoid mechanical stress on the board connectors.
- Configuration: The VCMI typically handles network parameters automatically, but ensure that the rack ID and network configuration are correctly set in the CIMPLICITY or Toolbox software to match the system-wide communication map.
- Monitoring: Once powered, observe the status LEDs on the front panel. A steady green “Link” or “OK” light confirms that the communication network is active and the board is communicating with the rack master.
Frequently Asked Questions (Q&A)
Q: Can I use this board to replace an IS215VCMIH1A?
A: You must consult your specific Mark VI system manual or the GE replacement parts catalog. While boards look similar, they may have different revision levels or hardware settings that are not backward compatible without software adjustments.
Q: What do the different LED patterns indicate?
A: Usually, flashing status lights represent network data traffic, while a solid red light indicates a hardware fault or loss of network heartbeat. Refer to your system’s “Mark VI System Guide” for specific diagnostic code interpretations.
Q: Does this card store my control application?
A: No, the VCMI is primarily a communication interface. Your application logic resides in the main processor (e.g., the VCCC or similar controller board).
