GE IS420UCSCH2A-G-V0.1-A | Mark VIe UCSC Controller Module

The GE IS420UCSCH2A (UCSC H2) is a high-performance controller module engineered for the GE Mark VIe SPEEDTRONIC control system. This specific revision, G-V0.1-A, represents a highly optimized hardware build designed to handle mission-critical computational tasks in power generation and heavy industrial environments. By providing sub-millisecond scan times and advanced communication capabilities, the UCSC H2 acts as the intelligent hub for turbine control, ensuring precise process regulation and high-speed safety interlocks.

Technical Specifications

Parameter	Detail
Product Model	IS420UCSCH2A
Revision/Version	G-V0.1-A
Series	Mark VIe SPEEDTRONIC
Manufacturer	GE / General Electric
Form Factor	Controller Module
Ethernet Ports	10/100/1000 Mbps
Power Input	24V DC
Operating Temperature	-30°C to +65°C
Dimensions (Approx.)	150mm x 180mm x 40mm
Weight	0.65 kg
Country of Origin	USA

Application Fields

Gas Turbine Control: Advanced fuel scheduling, flame monitoring, and temperature regulation.
Steam Turbine Management: High-speed governing for steam valve control.
Complex Industrial Drives: Managing multi-axis motion and synchronized power conversion.
Distributed Control Systems (DCS): Acting as the primary controller for redundant (TMR) safety and control configurations.

Usage Instructions

Physical Mounting: Align the module carefully with the Mark VIe control rack backplane. Ensure the mechanical levers are fully retracted before insertion and locked firmly into place to ensure high-speed bus connectivity.
Network Integration: Connect redundant Ethernet cables to the designated I/O ports. Use shielded cables compliant with GE industrial standards to prevent EMI-related communication drops.
Firmware Loading: Utilize the GE ControlST software suite to perform the initial firmware download. Verify that the G-V0.1-A hardware ID is correctly recognized by the configuration software.
Diagnostic Monitoring: During operation, the front-panel status LEDs provide a real-time health index. A steady light confirms the controller is communicating properly; flashing amber or red indicates a diagnostic fault needing immediate attention via the WorkstationST tool.
Redundancy: If operating in a TMR (Triple Modular Redundant) system, ensure that all three controllers are running the same software version to prevent synchronization mismatches.

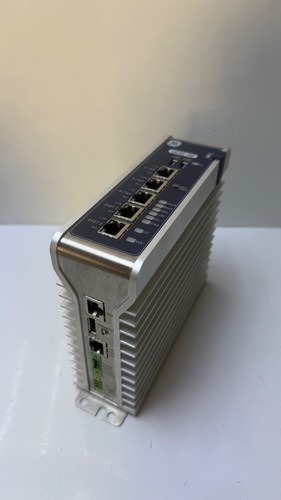

GE IS420UCSCH2A-G-V0.1-A , UCSC H2 Controller Module

Frequently Asked Questions (Q&A)

Q: What does the “G-V0.1-A” suffix indicate?
- A: This denotes the specific hardware build and base firmware level. It is important to match this revision during hot-swapping or cabinet expansion to ensure full compatibility with your existing control logic.
Q: Is this controller backwards compatible with older Mark VIe hardware?
- A: Generally, yes, provided your ControlST software project is updated to recognize the hardware profile of the UCSC H2 controller.
Q: How do I resolve a “Controller Mismatch” error?
- A: This usually occurs if the hardware revision (like G-V0.1-A) in the software configuration does not match the actual physical hardware. Update the hardware hardware property in your project file and perform a “Download to Controller.”
