GE IS420UCSCS2A | GE Mark VIe Controller Module

The GE IS420UCSCS2A (often referred to as the UCSC S2) is a high-performance, robust controller module engineered for the GE Mark VIe Distributed Control System (DCS). As the central processing unit of the control rack, this module is tasked with executing time-critical control algorithms, managing I/O communication across the plant network, and ensuring deterministic performance for heavy-duty industrial rotating machinery.

Product Specifications

Feature	Specification
Model	GE IS420UCSCS2A
Series	Mark VIe (UCSC-S2)
Processor	High-performance embedded microprocessor
Compatibility	GE Mark VIe Control Systems
Mounting	DIN-rail or Rack-mounted (Controller Slot)
Weight	Approx. 0.85 kg
Operating Temp	-30°C to +65°C
Origin	United States

Applications

The UCSC S2 controller is essential for mission-critical operations where reliability and high-speed data processing are non-negotiable:

Gas and Steam Turbine Control
Large-scale Combined-cycle Power Plant Automation
Centrifugal and Reciprocating Compressor Control
Emergency Shutdown Systems (ESD)
Plant-wide DCS architecture for Power Generation

Usage Instructions

Safety First: Always de-energize the control cabinet before handling internal modules. Utilize ESD (Electrostatic Discharge) wrist straps to prevent damage to sensitive CMOS components.
Installation: Slide the IS420UCSCS2A module into the designated controller slot in the Mark VIe I/O rack. Ensure the backplane connectors are fully seated.
Network Setup: Connect the module to the I/O Ethernet network using the appropriate ruggedized RJ-45 or fiber-optic cables.
Software Integration: Use the GE ToolboxST software to download the specific application code to the controller. Ensure the hardware revision matches your project configuration.
Operational Verification: Observe the front-panel status LEDs. A healthy “RUN” light indicates the controller is executing the programmed logic and communicating effectively with the I/O network.

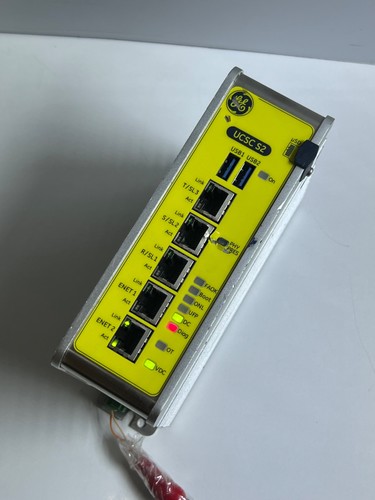

GE IS420UCSCS2A-B , UCSC S2 , Controller Module (For Parts)

Frequently Asked Questions (Q&A)

Q: What is the difference between the UCSC S1 and S2 versions?

A: The “S2” designation often refers to specific hardware iteration or feature sets tailored for enhanced processing capacity or specific communication interface options within the Mark VIe platform.

Q: Is the IS420UCSCS2A-B a direct replacement for an older IS420UCSCS2A?

A: Usually, yes; the “-B” indicates a hardware revision. You should verify the “Form, Fit, and Function” in your specific GE Mark VIe system manual or contact your GE representative for compatibility verification regarding existing application files.

Q: How is this controller cooled?

A: The Mark VIe rack design utilizes convection cooling. Ensure that ventilation paths in the cabinet are clear and that rack-mounted fans are operational.
