Servomex S2500904A | Power Control PCB

The Servomex S2500904A is a specialized Power Control Printed Circuit Board (PCB) designed for Servomex gas analysis systems, particularly within the 2500 series analyzer platforms. This board is critical for managing the power distribution, voltage regulation, and signal conditioning required for high-precision gas sensing instrumentation. It ensures that the sensitive analytical sensors receive clean, stable power, which is essential for accurate measurement in process control and emissions monitoring applications.

Technical Specifications

Parameter	Detail
Product Model	S2500904A
Manufacturer	Servomex
Function	Power Control & Regulation Board
Voltage Input	Standard industrial 24V DC (System dependent)
Compatibility	Servomex 2500 Series Analyzers
Mounting	Internal Analyzer Chassis / PCB Slot
Operating Temp	-10°C to +55°C
Dimensions (Approx.)	180mm x 120mm x 30mm
Weight	0.3 kg
Country of Origin	United Kingdom / USA

Application Fields

Emissions Monitoring (CEMS): Providing stable power to analyzer modules in environmental monitoring systems.
Process Control: Maintaining measurement integrity in petrochemical, chemical, and pharmaceutical manufacturing.
Combustion Analysis: Powering oxygen and gas sensors for boiler and furnace efficiency optimization.
Safety & Inerting: Monitoring inert gas purity in industrial storage tanks and pipelines.

Usage Instructions

Handling: This board contains sensitive electronic components. Always use an anti-static wrist strap and handle by the edges to prevent ESD (Electrostatic Discharge) damage.
Installation: Ensure the analyzer is isolated from all power sources before opening the chassis. Carefully align the S2500904A board with the backplane connectors and ensure it is fully seated before securing the mounting screws.
Connectivity: Verify that all cable harnesses from the power supply and sensor arrays are properly connected to the board’s headers, ensuring the locking mechanisms are engaged.
Calibration: After board replacement, perform a system diagnostic check via the analyzer’s front-panel interface. It may be necessary to perform a span/zero calibration of the sensors, as power stability changes can subtly affect sensor baselines.
Maintenance: Periodically inspect the board for signs of thermal distress (darkened PCB material) or electrolyte leakage from capacitors, particularly if the analyzer has been in operation for several years.

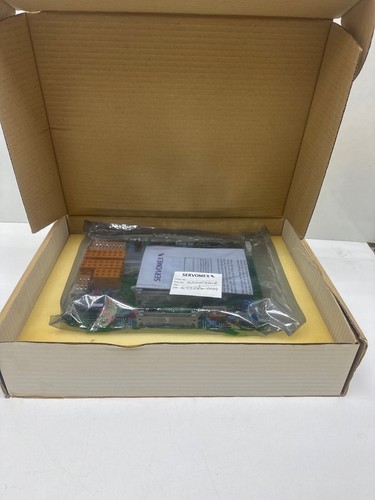

Servomex S2500904A Power Control Pcb Circuit Board

Frequently Asked Questions (Q&A)

Q: How can I tell if the S2500904A has failed?
- A: Common indicators include a “Power Supply Fault” alarm on the analyzer display, erratic measurement readings, or the failure of the unit to power up entirely.
Q: Is this board compatible with all 2500 series analyzers?
- A: The S2500904A is revision-specific. Always match the part number exactly with your existing board to ensure compatibility with your specific analyzer firmware and sensor configuration.
Q: Can I repair this board locally?
- A: Due to the high-precision nature of gas analysis electronics, component-level repair is generally not recommended. It is standard industry practice to replace the board with a tested, verified unit to maintain regulatory compliance and measurement accuracy.
