TEREX | 08.0682.1223 Display Unit

The TEREX 08.0682.1223 is a specialized operator display unit used primarily in TEREX heavy equipment, such as mobile cranes and material handlers. This unit serves as the primary interface between the machine’s control system and the operator, providing real-time data on load status, engine health, and diagnostic information.

Product Specifications

Feature	Specification
Model	TEREX 08.0682.1223
Application	Heavy Machinery Control/Monitoring
Interface	High-visibility graphical operator display
Compatibility	TEREX Crane/Heavy Equipment Control Systems
Weight	Approx. 1.2 kg
Environment	IP-rated for outdoor heavy-duty construction use
Origin	Germany/International

Applications

This display unit is a critical component for safe machine operation:

Load Moment Indicators (LMI): Providing crucial data on crane capacity, boom angle, and radius to prevent tipping.
Diagnostic Monitoring: Alerting operators to engine faults, hydraulic pressure issues, or electrical errors.
Parameter Setting: Allowing authorized technicians to adjust working parameters or configure machine operational limits.
Safety Compliance: Ensuring the operator has immediate feedback for critical safety protocols during lift operations.

Understanding the Role of LMI/Display Systems

The operator display acts as the “brain” for safe lifting operations. It receives data from various sensors (load cells, angle sensors, pressure transducers) and converts those electrical signals into actionable information for the operator.

Usage and Maintenance Instructions

Startup: Upon powering up the machine, the display performs a self-diagnostic sequence. Ensure all indicators turn on briefly before the main operating screen appears.
Maintenance: Keep the screen clean of dust, grease, and dirt to ensure clarity. Use only non-abrasive cleaners, as aggressive chemicals can damage the display’s protective anti-glare coating.
Troubleshooting: If the unit shows “No Data” or an error code, first check the electrical harness connections at the rear of the unit. A loose connection due to machine vibration is a common point of failure.
Configuration: Access to deep menus for machine calibration usually requires a technician password. Unauthorized changes to these settings can lead to unsafe operation.

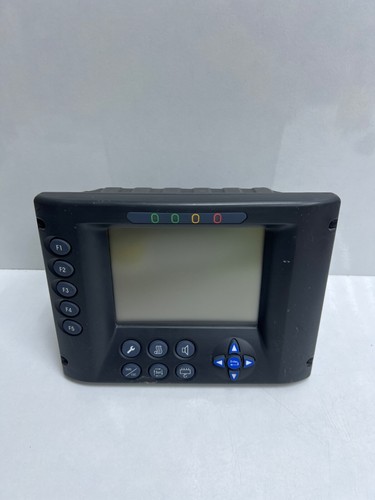

TEREX 08.0682.1223 Display Unit

Frequently Asked Questions (Q&A)

Q: Can I replace this display unit myself?

A: Yes, it is typically a “plug-and-play” module, but it must be configured for your specific crane model’s software version. Simply swapping a unit from a different machine without checking the software load may result in the display not showing the correct machine graphics or data.

Q: The display is flickering or dark—what is the issue?

A: Flickering is often related to a unstable power supply (check battery/alternator) or a failing internal backlight. If it is completely dark, verify that the 24V supply is reaching the unit’s power pins.

Q: Is the 08.0682.1223 compatible with older TEREX crane models?

A: Compatibility is based on the machine’s CAN-bus architecture. Always verify the part number with the machine’s serial number through a TEREX service portal or official parts dealer.
