Product Overview

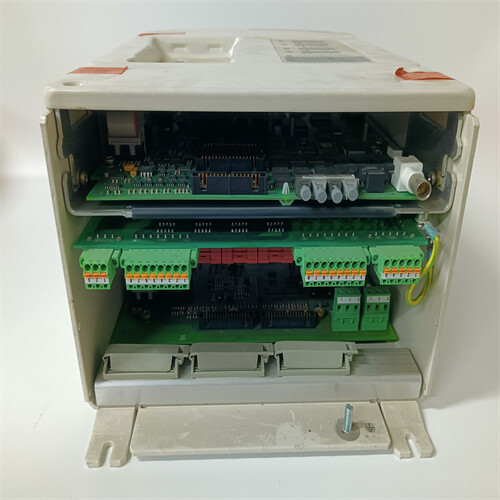

The UNS4881b,V4 (Part Number: 3BHE009949R0004) is a high-performance control board manufactured by ABB, specifically designed for use within excitation systems. This module serves as a critical interface and processing unit for regulating synchronous generators, ensuring stable power delivery and precise voltage control. Known for its reliability in demanding industrial environments, the V4 version represents a refined iteration of this hardware, offering robust processing capabilities and high-speed signal acquisition to maintain system equilibrium during transient conditions.
Technical Specifications
The following parameters define the physical and operational characteristics of the UNS4881b,V4 module:
- Model Designation: UNS4881b,V4
- Part Number: 3BHE009949R0004
- Manufacturer: ABB
- Dimensions: 233mm x 160mm x 20mm
- Weight: 0.45 kg
- Country of Origin: Switzerland / Estonia
- Power Supply: 24V DC nominal
- Operating Temperature: -5 to +60 degrees Celsius
- Storage Temperature: -40 to +85 degrees Celsius
- Humidity: 5% to 95% non-condensing
Application Fields
This module is primarily utilized in large-scale power generation and heavy industrial sectors. It is a core component in:
- Hydroelectric and Thermal Power Plants for generator excitation control.
- Synchronous Motor Starters in mining and cement industries.
- Static Excitation Systems (SES) and Automatic Voltage Regulators (AVR).
- Grid stability management systems within utility substations.
Product Instructions and Handling
To ensure the longevity and performance of the UNS4881b,V4, professional installation is required. The board should be mounted in a standard sub-rack system with adequate airflow. Before installation, technicians must discharge any static electricity by wearing a grounded wrist strap, as the onboard CMOS components are sensitive to Electrostatic Discharge (ESD). When replacing an existing unit, ensure the firmware revision (V4) is compatible with the existing system configuration. Connections should be secured according to the system’s wiring diagram to prevent signal noise or intermittent contact.
Questions and Answers
Q: Is the UNS4881b,V4 interchangeable with earlier versions? A: While it shares the core functional architecture of the UNS4881 series, the V4 revision may include hardware optimizations or firmware updates. It is recommended to verify your system software version before direct replacement.
Q: What is the primary function of the 3BHE009949R0004 within an AVR? A: It functions as a signal processing interface that monitors generator output parameters and provides feedback to the power bridge to adjust the field current accordingly.
Q: Does this unit require external cooling? A: Under standard operating temperatures, passive cooling within a ventilated cabinet is sufficient. However, in high-ambient environments, forced air cooling is recommended to prevent thermal derating.
