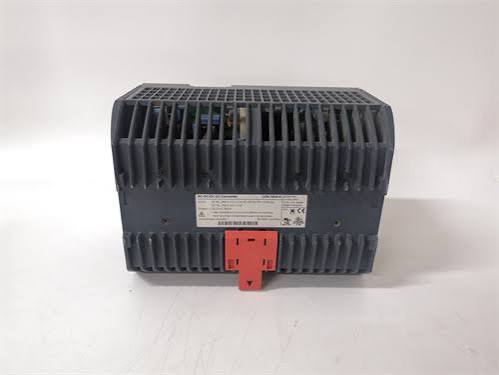

The ABB LXN1604-6 3BHL000986P7000 is an industrial AC-DC power supply / converter module, rather than a PLC processor or communication module. Cross-reference records identify the part number with LXN 1604-6 and classify it as an electronic power/frequency converter.
Available technical references identify the unit as a 500 W single-phase AC input power supply with a nominal output of approximately 24.7–27 VDC at 20 A. The published electrical data also gives an input range of 85–264 VAC and 90–350 VDC, making the unit suitable for industrial control power applications.
The part is associated with ABB industrial and marine/turbine equipment, while current distributor records list it specifically as an ABB power supply.
Product Datasheet
| Item | Specification |
|---|---|
| Model | LXN1604-6 |
| Part Number | 3BHL000986P7000 |
| Brand | ABB |
| Product Type | AC-DC Power Supply / Converter |
| Rated Power | 500 W |
| Input Type | Single Phase AC / DC |
| AC Input Range | 85–264 VAC |
| DC Input Range | 90–350 VDC |
| Output Voltage | Approx. 24.7–27 VDC |
| Output Current | 20 A |
| Output Channels | 1 |
| Insulation Voltage | 2.8 kVDC |
| Mounting | DIN Rail / Industrial Installation |
| Operating Temperature | -40°C to +60°C |
| Dimensions | Approx. 194 × 113.6 × 138 mm |
| Weight | Approx. 3 kg* |
| Application | Industrial Control / Automation Power |
| Status | Legacy / Discontinued reference |
The 500 W rating, 85–264 VAC input, 90–350 VDC input, approximately 24.7 VDC / 20 A output, 2.8 kVDC insulation, dimensions, and temperature range are reported in cross-reference technical data.
Typical Applications
- Industrial automation control cabinets
- ABB DCS and control-system power
- Marine automation systems
- Turbine and power-generation equipment
- Industrial instrumentation
- PLC and I/O system power
- Legacy ABB equipment maintenance
Installation & Use
- Verify the part number — Confirm LXN1604-6 / 3BHL000986P7000 before replacement.
- Check the input supply — Make sure the available AC or DC input falls within the specified range.
- Check the DC load — Keep the connected load within the 500 W / 20 A output capability.
- Inspect wiring — Check input/output terminals, grounding, insulation, and signs of overheating.
- Power-up test — Measure the DC output voltage before connecting sensitive downstream equipment.
- Load verification — After startup, monitor output voltage and current under normal system load.
⚠️ Important identification note: The supplied listing calls the unit an “ABB Convert Module,” while technical cross-references and distributor records identify LXN1604-6 3BHL000986P7000 as a 500 W power supply / AC-DC converter.
