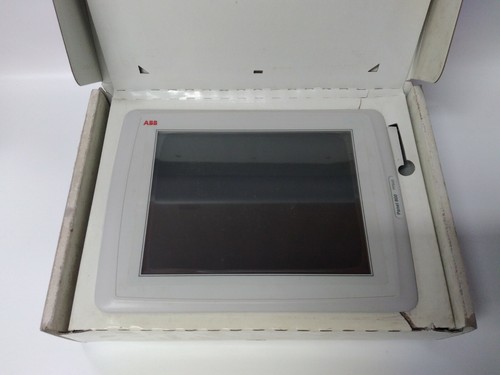

The ABB PP845 (part number 3BSE042235R1) is a high-performance Operator Panel / Human-Machine Interface (HMI) from the ABB Panel 800 series. It is designed for demanding industrial automation applications, providing robust monitoring and control capabilities within ABB’s System 800xA and Compact Product Suite environments.
This unit features a balanced display size and tactile interface, making it suitable for localized machine control or distributed process supervision where space and reliability are critical.
Technical Specifications
| Parameter | Specification |
| Manufacturer | ABB |
| Product Family | Panel 800 Series |
| Model / Part Number | PP845 / 3BSE042235R1 |
| Display Type | TFT Color LCD with CCFL/LED Backlight |
| Screen Size | 6.5-inch diagonal |
| Resolution | 640 x 480 pixels (VGA) |
| Operator Input | Resistive touch screen + Physical function keys |
| Status Indicators | Integrated two-color status LEDs |
| Communication Ports | 1x Ethernet (RJ45), RS-232, RS-422/RS-485 serial ports |
| Peripheral Interfaces | USB Host (Type A), USB Device (Type B), CompactFlash (CF) slot |
| Power Supply | 24 V DC (20–30 V DC range) |
| Front Panel Protection | IP66 / NEMA 4X |
| Operating Temperature | 0°C to +50°C (+32°F to +122°F) |
Core Features & Operating Capabilities
- Compact Industrial Interface: The 6.5-inch display offers a compact footprint, ideal for mounting directly on machine consoles or localized control cabinets where space is limited.
- Dual-Interaction Control: Operators can utilize the resistive touch screen for complex navigation or the physical function keys for rapid, reliable execution of critical commands, even while wearing industrial PPE.
- System 800xA Compatibility: Engineered for seamless integration with ABB’s Industrial IT architecture, supporting efficient tag sharing and alarm/event handling within the 800xA environment.
- Durability and Environmental Protection: Features an IP66-rated front seal, ensuring resilience against dust, moisture, and cleaning procedures in harsh manufacturing settings.
- Data and Network Connectivity: Equipped with a comprehensive suite of ports, including Ethernet and serial communication, alongside local storage via a CompactFlash slot for recipes, data logging, and backups.
Related ABB Panel 800 Components
- PP836 (3BSE042237R1) — 5.7-inch Panel 800 variant.
- PP846 (3BSE042238R1) — Larger 10.4-inch Panel 800 variant.
- Compact Control Builder — Engineering tool used for configuring Panel 800 applications.
- AC 800M Controllers — High-performance modular controllers frequently used in conjunction with Panel 800 units.
