Product Introduction
โ๏ธ Product: T9110
๐ท๏ธ Brand: ICS Triplex / Rockwell Automation
๐ก๏ธ System: AADvance Safety Controller
๐ป Product Type: Processor Module

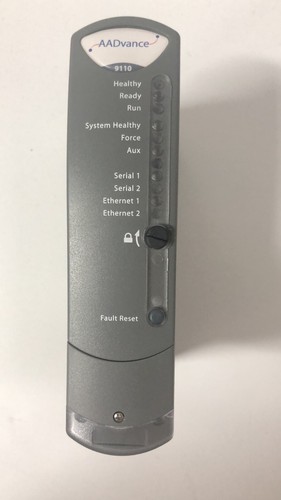

The ICS Triplex T9110 is the central processor module of an AADvance controller. It executes the AADvance Safety Kernel, processes application logic, communicates with I/O modules and other processor modules, performs controller diagnostics, and supports communication with HMIs and other systems.
๐ The T9110 supports redundant processor configurations. Rockwell Automation documentation identifies configurations using two or three T9110 processor modules for safety-related applications, including SIL 3 architectures. A processor module can also be replaced online in suitable redundant configurations, with automatic synchronization to the remaining processors.
๐ก๏ธ The processor includes diagnostic and watchdog functions and uses dual redundant 24 VDC power supplies. The documented architecture supports 1oo1D, 1oo2D, and 2oo3D configurations depending on the application.
Product Datasheet
๐น Model: T9110
๐น Brand: ICS Triplex / Rockwell Automation
๐น Product Family: AADvance
๐น Product Type: Processor Module
๐น Controller Function: Central Processing Unit
๐น Processor Clock: 400 MHz
๐น Boot Flash: 512 KB
๐น SRAM: 512 KB
๐น Bulk Flash: 64 MB
๐น SDRAM: 32 MB
๐น Sequence-of-Events Resolution: 1 ms
๐น Supported I/O Modules: Up to 48
๐น Processor Architectures: 1oo1D / 1oo2D / 2oo3D
๐น Safety Capability: Up to SIL 3, configuration dependent
๐น Supply: Dual redundant 24 VDC
๐น Backplane Voltage: 18โ32 VDC
๐น Module Current: Approx. 380 mA
๐น Mounting: AADvance T9100 Processor Base Unit
๐น Dimensions: Configuration dependent
๐น Weight: Approx. 0.5 kg*
๐น Country of Origin: USA / UK, production dependent
*Exact mechanical dimensions and shipping weight can vary by hardware revision and packaging. Rockwell documentation specifies 18โ32 VDC for the T9110 backplane supply and approximately 380 mA module current.
Typical Applications
๐ก๏ธ Safety Instrumented Systems
๐จ Emergency Shutdown Systems
๐ญ Process Safety Control
๐ข๏ธ Oil & Gas Facilities
โก Power Generation
๐ฅ Fire & Gas Systems
โ๏ธ Turbine and Compressor Protection
Installation & Use
๐ ๏ธ Before installation, verify the complete T9110 hardware revision, Effective Date, firmware version, T9100/T9300 base-unit compatibility, and existing AADvance configuration.
๐ The module uses a redundant 24 VDC supply architecture. Check the supply voltage, backplane connections, grounding, and processor seating before energizing the controller.
๐ป During commissioning, verify the processor firmware and AADvance Workbench compatibility. Rockwell Automation has released different T9110 firmware revisions, so the installed firmware should be checked rather than assumed.
๐ก After startup, check the Healthy, Ready, Run, and other front-panel status indicators. A green Healthy LED indicates that the module is operating without a detected hardware fault.
โ ๏ธ For safety applications, verify the complete controller architecture, application configuration, firmware, diagnostics, and safety function before returning the system to operation. Do not substitute a different T9000-series processor without checking the AADvance system configuration and certification requirements.
