📌 Product Introduction

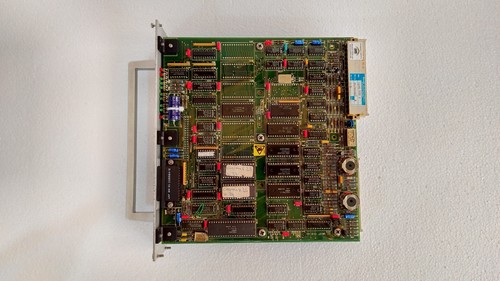

The SAAB Stalectronic 2000 1891 701-1 CU/MU Type B is a specialized PCB card used within the Stalectronic 2000 automation/control platform. The referenced configuration carries PCB part number 8537000423 B. Available product records identify it as a CU/MU Type B PCB card for the Stalectronic 2000 system.

The card is associated with industrial and marine automation equipment and is intended primarily as a replacement or maintenance spare for existing installations. Related listings identify the same 1891 701-1 platform and CU/MU Type B configuration with closely related part numbers, so the complete PCB marking should be checked before substitution.

📊 Product Datasheet

Parameter	Specification
Brand	SAAB / Stalectronic
Model	1891 701-1
Series	Stalectronic 2000
Product Name	CU/MU Type B PCB Card
PCB Part Number	8537000423 B
Controller Platform	Stalectronic 2000
PCB Type	CU/MU Type B
Application	Industrial / Marine Automation
Product Status	Used / Legacy Spare
Power	+5 V, +15 V, -15 V associated with related 1891 701-1 PCB configuration

The referenced listing identifies the unit as used and gives additional related identification numbers including MK 8537 412-003 and KK 8537 012-411.

A related Stalectronic 2000 PCB record lists a weight of approximately 1.32 kg and identifies +5 V, +15 V, and -15 V rails on the associated PCB configuration. Because these specifications are from a related 1891 701-1 card rather than an official datasheet for the exact “B” revision, they should be treated as reference values rather than guaranteed specifications for every 8537000423 B unit.

⚙️ Main Features

🔹 Stalectronic 2000 system PCB
🔹 CU/MU Type B configuration
🔹 PCB part number 8537000423 B
🔹 Designed for integration within an existing control system
🔹 Suitable for industrial and marine automation maintenance
🔹 Useful as a replacement or strategic spare
🔹 Requires correct system compatibility before installation

🛠️ Operating Procedure & How to Use

Before installation, compare the PCB markings with the existing card. Pay particular attention to the model number, PCB part number, revision, connector arrangement, and CU/MU designation.

1. Isolate the Stalectronic 2000 system from power.
2. Follow the vessel or plant’s electrical isolation procedure.
3. Record the original PCB position and cable/connector locations.
4. Photograph the existing installation before removal.
5. Check the replacement PCB for physical damage, contamination, corrosion, or loose components.
6. Verify the part number 8537000423 B and applicable revision.
7. Install the PCB into the correct rack or mounting position.
8. Reconnect all connectors according to the original wiring arrangement.
9. Check that the card is firmly seated.
10. Energize the system according to the approved startup procedure.
11. Check system status and communication.
12. Confirm that the associated control functions operate normally.

🔌 Startup Sequence

⚠️ Do not insert or remove the PCB from an energized system unless the equipment documentation specifically permits hot-swapping.

1. Confirm the system is mechanically complete.
2. Verify all connectors are correctly installed.
3. Confirm the required supply rails are available.
4. Ensure adjacent modules are correctly installed.
5. Energize the main control-system power.
6. Allow the Stalectronic 2000 system to complete its initialization.
7. Observe status indicators and system alarms.
8. Check communication with connected control equipment.
9. Verify the expected CU/MU functions.
10. Perform operational testing before returning the equipment to normal service.

⏹️ Shutdown Sequence

1. Place the controlled process in its approved safe condition.
2. Stop associated machinery or equipment according to the plant procedure.
3. Isolate the Stalectronic 2000 system.
4. Disconnect power using the approved isolation procedure.
5. Verify that hazardous voltage has been removed.
6. Wait for stored energy to discharge.
7. Remove connectors only after the system is safely isolated.
8. Protect the PCB against ESD during removal and storage.

📖 Product Usage Notes

This type of legacy PCB should normally be treated as a system-specific replacement component rather than a universal controller. A card with a similar part number is not automatically interchangeable.

For maintenance work, keep a record of the original card’s position, connector arrangement, revision marking, and system configuration. If the replacement card has been stored for an extended period, inspect connectors and PCB surfaces before installation.

ESD protection is recommended when handling the PCB. Store the card in an antistatic bag and avoid touching connector contacts or exposed electronic components.

❓ Common Questions & Answers

Q: What is the SAAB 1891 701-1 used for?
A: It is a PCB card associated with the Stalectronic 2000 automation/control platform, specifically the CU/MU Type B configuration.

Q: What is the PCB part number?
A: The referenced unit is marked 8537000423 B.

Q: Is this a complete controller?
A: No. It is identified as a PCB card for the Stalectronic 2000 platform rather than a standalone PLC or complete control cabinet.

Q: Is it suitable for marine applications?
A: Stalectronic 2000 equipment is found in industrial and marine automation applications. Compatibility should be verified against the specific vessel or system configuration.

Q: Can I replace another 1891 701-1 PCB with this card?
A: Only after checking the complete part number, revision, CU/MU configuration, connectors, and system requirements.

Q: What power rails are associated with this PCB family?
A: A related 1891 701-1 Stalectronic PCB listing identifies +5 V, +15 V, and -15 V rails.

Q: What is the approximate weight?
A: A related Stalectronic 2000 1891 701-1 PCB is listed at approximately 1.32 kg. The actual weight of the exact 8537000423 B assembly may differ.

Q: Is the referenced unit new or used?
A: The referenced listing identifies the unit as used.

Q: What should I check before ordering?
A: Confirm the Stalectronic 2000 platform, 1891 701-1 designation, CU/MU Type B configuration, PCB part number 8537000423 B, connector arrangement, and revision marking.

🔎 Recommended SAAB / Stalectronic Related Models & Parts

1. Stalectronic 2000 1891 701-1 CU/MU Type B PCB
2. Stalectronic 2000 1891 701 CU/MU Type B PCB
3. Stalectronic 2000 1891 714 KK EXU PCB
4. Stalectronic 2000 8537000423 PCB
5. Stalectronic 2000 8537000411 PCB
6. Stalectronic 2000 8537011412 PCB
7. Stalectronic 2000 8537412-003 PCB
8. Stalectronic 2000 8537012-411 PCB
9. Stalectronic 2000 CU/MU Type B PCB
10. SAAB Stalectronic 2000 Automation PCB Cards

These related identifiers are based on publicly indexed Stalectronic 2000 listings and should be treated as potential related parts, not automatic replacements for 8537000423 B.
