📌 Product Introduction

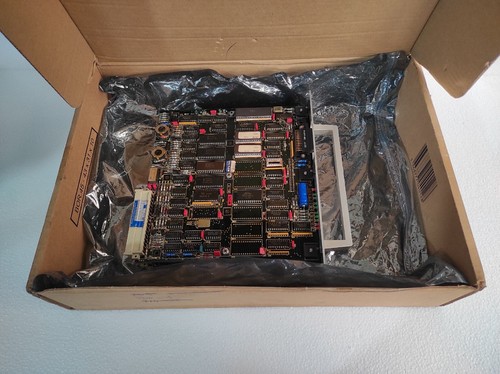

The SAAB Stalectronic 2000 1891 701-1 CU/MU Type B is an industrial control PCB used within the Stalectronic 2000 automation platform. The referenced unit is identified as part number 8537000411 A.

Available product records associate part number 8537000411 with the SAAB/Stalectronic 2000 system and identify related CU/MU hardware. One technical listing identifies 8537000411 as a Stalectronic 2000 CU/MU Type A servo card, while the referenced product is specifically marked 1891 701-1 CU/MU Type B. Therefore, the complete board marking and revision should be checked carefully when sourcing a replacement.

This type of PCB is primarily relevant to maintenance and spare-parts replacement for existing Stalectronic 2000 installations.

📊 Product Datasheet

Parameter	Value
Brand	SAAB Stalectronic
Model	1891 701-1 CU/MU Type B
Series	Stalectronic 2000
Product Name	CU/MU Type B Industrial Control PCB
Part Number	8537000411 A
PCB Type	Industrial Control / Servo-Related PCB
Application	Stalectronic 2000 Automation System
Controller Platform	CU/MU
Country of Origin	Sweden
Condition	New Surplus / Unused Surplus according to referenced listing

📦 A related 8537000411 assembly is documented with a weight of approximately 1.740 kg, although this refers to a rack/assembly configuration rather than necessarily the bare 1891 701-1 Type B PCB.

📏 Exact PCB dimensions and electrical ratings should be confirmed from the physical nameplate or original engineering documentation before installation. The available records do not provide enough reliable information to state exact dimensions or power consumption.



⚙️ Main Features

• 🖥️ Stalectronic 2000 system compatibility
• 🔧 CU/MU control architecture
• 🔌 Type B PCB configuration
• 🧩 Rack-mounted industrial electronics
• ⚙️ Designed for integration into an existing control system
• 🔄 Suitable for maintenance and replacement applications
• 🏭 Applicable to industrial and marine automation equipment
• 🏷️ Clearly identified by 1891 and 8537-series part numbers



🛠️ Operating Procedure and Usage

The 1891 701-1 CU/MU Type B PCB should be operated as part of the Stalectronic 2000 system. It should not be connected to an unrelated PLC or control rack simply because the connector arrangement appears similar.

Before installation:

1. 🔍 Inspect the PCB for corrosion, damaged components, cracked solder joints, or bent connectors.
2. 🏷️ Verify the complete marking: 1891 701-1, CU/MU Type B, 8537000411 A.
3. 📋 Compare the replacement board with the existing PCB.
4. 📸 Record connector positions, rack location, and wiring before removal.
5. ⚡ Switch off and isolate the control-system power.
6. 🛡️ Use appropriate ESD protection.
7. 🔌 Install the PCB into the correct rack position.
8. 🔧 Confirm all connectors are fully seated.
9. ⚡ Restore system power.
10. 🧪 Check system diagnostics, communications, I/O, and controlled equipment functions.

A related 8537000411 unit is documented as a Stalectronic 2000 circuit-board/rack assembly, confirming its association with this older control-system platform.



🔌 Power-On / Power-Off Sequence

Power-On

⚡ 1. Confirm the machine or plant is in a safe condition.

🔍 2. Verify the PCB is installed in the correct rack position.

🔌 3. Check all connectors and associated wiring.

⚡ 4. Energize the Stalectronic 2000 system according to the original system procedure.

🖥️ 5. Check controller/system status and diagnostic indications.

🔧 6. Verify CU/MU-related functions and system communication.

▶️ 7. Return the controlled equipment to operation only after successful functional checks.

Power-Off

🛑 1. Stop the controlled process normally.

🔒 2. Place the equipment in a safe maintenance condition.

⚡ 3. Isolate the Stalectronic 2000 power supply.

⏳ 4. Allow stored electrical energy to discharge.

🛡️ 5. Apply ESD protection before touching the PCB.

📦 6. Remove and package the PCB in suitable ESD-safe material.

⚠️ Do not remove or insert the PCB while energized unless the original Stalectronic documentation explicitly confirms that the particular rack supports hot-swapping.



📖 Product Usage Instructions

Because Stalectronic 2000 is an older industrial control platform, replacement should be based on the complete identification code, not just the base number.

The referenced listing identifies the unit as 1891 701-1 CU/MU Type B, P/N 8537000411 A.

There are also related 8537000411 records identifying CU/MU Type A hardware, including a listing for 8537 000-411 as a Stalectronic 2000 CU/MU Type A servo card. This is important because Type A and Type B should not be assumed to be interchangeable.

Before ordering or installing this board, compare:

• 1891 model number
• CU/MU designation
• Type A or Type B
• Part number
• Revision letter
• Connector layout
• Rack position
• Existing software/system configuration



❓ Common Questions & Answers

Q: What is the SAAB Stalectronic 2000 1891 701-1?
A: It is an industrial CU/MU control PCB associated with the Stalectronic 2000 automation platform.

Q: What is the part number?
A: The referenced unit is marked 8537000411 A.

Q: What does CU/MU mean?
A: CU/MU is the system designation used on this Stalectronic hardware. The exact internal function should be confirmed against the specific Stalectronic system documentation.

Q: Is Type B interchangeable with Type A?
A: It should not be assumed to be interchangeable. Available records identify 8537000411-related Type A hardware separately, while the referenced unit is specifically Type B.

Q: Is 8537000411 a PCB or a complete rack?
A: Both descriptions appear in available product records. A related listing identifies 8537000411 as a circuit-board rack, while the referenced listing identifies the unit as a 1891 701-1 CU/MU Type B PCB. Therefore, the physical item and exact markings should be verified before purchase.

Q: What is the country of origin?
A: Available product information identifies Sweden as the country of origin for the Stalectronic 2000 8537000411 family.

Q: Can the PCB be replaced while power is on?
A: Do not assume hot-swapping is supported. Power should normally be isolated before removing or installing the board.

Q: What should I check before purchasing a replacement?
A: Confirm the 1891 number, CU/MU designation, Type B marking, 8537000411 part number, revision A, connector arrangement, and rack position.

Q: Is this board suitable as a spare for an older Stalectronic 2000 system?
A: It can be considered as a replacement spare when the complete hardware identification matches the installed system. Compatibility should be verified before installation.



🔟 Recommended SAAB Stalectronic Models / Series

1. SAAB Stalectronic 2000 1891 701-1 CU/MU Type B
2. SAAB Stalectronic 2000 1891 701 CU/MU Type B
3. SAAB Stalectronic 2000 1891 705 EXU PCB
4. SAAB Stalectronic 2000 1891 714 KK EXU PCB
5. SAAB Stalectronic 2000 1891 725 Handheld Controller
6. SAAB Stalectronic 2000 8537000411 CU/MU Assembly
7. SAAB Stalectronic 2000 8537000423 CU/MU Type B PCB
8. SAAB Stalectronic 2000 8537011412 EXU PCB
9. SAAB Stalectronic 2000 8537011411 EXU PCB
10. SAAB Stalectronic 2000 1891 700 Circuit Board Assembly

The related Stalectronic records show a range of 1891-series and 8537-series control boards and assemblies used within the same legacy automation platform.
