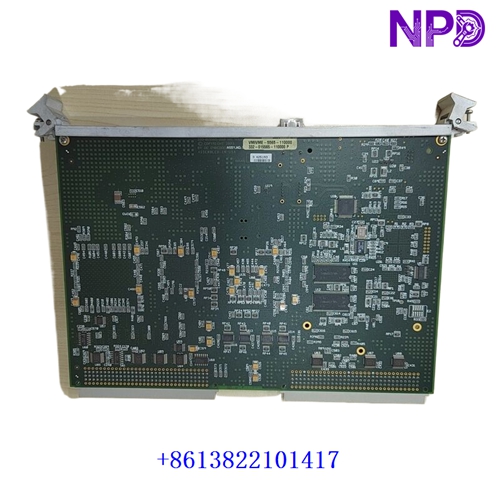

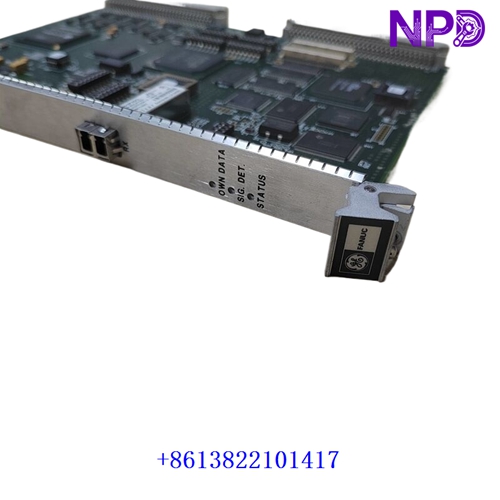

The Abaco Systems VMIVME-5565-010000 is a VMEbus-based Reflective Memory node card designed for high-speed, deterministic data sharing between distributed computers, controllers, and embedded systems. The VME-5565 uses a fiber-optic network to replicate data written to one node across other connected nodes, allowing systems to share a synchronized memory space with low communication overhead. The platform supports networks of up to 256 nodes, with transfer rates reaching approximately 170 MB/s depending on packet size. It uses a standard VME 6U Eurocard form factor and supports multimode or single-mode fiber connections. Abaco Systems currently lists the VME-5565 in its Restricted Production Phase, making this model particularly relevant for maintaining existing VME-based installations.
| Specification | Details |
|---|---|
| Brand | Abaco Systems / VMIC |
| Model | VMIVME-5565-010000 |
| Series | VME-5565 |
| Product Name | Reflective Memory Node Card |
| Form Factor | VMEbus 6U Eurocard |
| Memory | 64 MB or 128 MB SDRAM, configuration dependent |
| Network Technology | Fiber-Optic Reflective Memory |
| Serial Link Speed | 2.12 Gbaud |
| Data Transfer Rate | Up to 170 MB/s |
| Maximum Nodes | Up to 256 |
| Fiber Distance | Up to 300 m multimode / up to 10 km single-mode |
| Operating Systems | Linux, VxWorks, Windows |
| Status | Restricted Production Phase |
| Typical Applications | Real-time control, simulation, distributed computing, industrial automation |
FAQ
Q: What is the primary function of the VMIVME-5565-010000?
A: It provides a high-speed reflective memory interface for sharing synchronized data between multiple VME-based systems.
Q: How many systems can be connected?
A: The VME-5565 architecture supports up to 256 independent network nodes.
Q: Does the board use Ethernet?
A: No. It uses a dedicated high-speed fiber-optic Reflective Memory network.
Q: Is the VMIVME-5565-010000 discontinued?
A: Abaco Systems currently identifies the VME-5565 as being in a Restricted Production Phase rather than listing it as a current full-production product.
Q: What should be checked before replacement?
A: Verify the exact part number, memory configuration, fiber interface, VME chassis compatibility, and installed driver/software environment before installation.
Recommended Abaco Systems Reflective Memory Models
- VME-5565 — VMEbus Reflective Memory Node Card for legacy VME systems.
- PMC-5565 — PMC Reflective Memory interface for embedded computing platforms.
- PCI-5565 — PCI Reflective Memory interface for legacy PCI host systems.
- PCI-5565PIORC — PCI-based Reflective Memory node interface.
- PCIE-5565PIORC — PCI Express Reflective Memory node card.
- PCIE-5565RC — PCI Express Reflective Memory interface for compatible systems.
- PMC-5565PIORC — PMC Reflective Memory node card for embedded platforms.
- ACC-5595 — Managed Reflective Memory hub for 5565-family networks.
- HUB-5595 — Managed hub designed for Abaco 5565 Reflective Memory networks.
- PEAZ-5565 — Reflective Memory Analyzer for analysis and troubleshooting of 5565-family networks.
