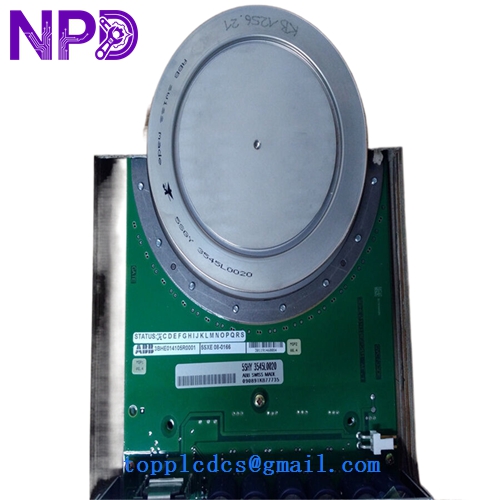

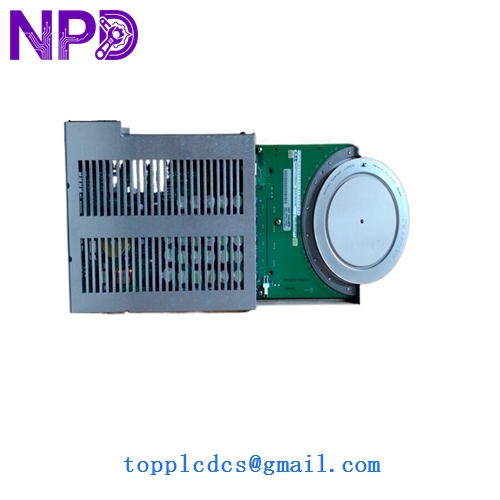

The ABB 3BHE014105R0001 (Manufacturer Model: 5SXE08-0166) is an advanced Integrated Gate-Commutated Thyristor (IGCT) semiconductor power module designed specifically for high-power industrial drives, medium-voltage frequency converters, and high-capacity excitation systems. Engineered to handle extreme electrical loads, this semiconductor switch bridges the performance gap between traditional thyristors and standard IGBTs, offering ultra-fast switching speeds, low conduction losses, and high blocking voltage capabilities. Built with rugged industrial packaging, the IGCT module ensures maximum operational efficiency, thermal stability, and reliable power conversion in heavy industrial and power generation applications.
ABB 5SHY3545L0020 3BHE014105R0001 5SXE08-0166
ABB 5SHY3545L0020 3BHE014105R0001 5SXE08-0166
ABB 5SHY3545L0020 3BHE014105R0001 5SXE08-0166
๐ Technical Specifications & Datasheet
- ๐ท๏ธ Brand: ABB
- ๐ Model / Part Number: 3BHE014105R0001
- ๐ Manufacturer Designation: 5SXE08-0166
- ๐ Product Name: IGCT Semiconductor Power Module
- ๐ Place of Origin: Switzerland / Sweden
- โก Product Status: Active / Factory Original
- ๐ Dimensions: Standard high-power press-pack semiconductor form factor
- โ๏ธ Weight: 1.4 kg
- ๐ Country of Origin: Switzerland
- ๐ Discontinuation Status: Active / Supported Platform
โ๏ธ Parameter Configuration and Modification Methods
As a high-power semiconductor switching component, the 3BHE014105R0001 module does not contain programmable firmware or software configuration registers. However, proper physical setup, gate unit calibration, and thermal management require rigorous engineering procedures:
- ๐ป Gate Unit Interface: Connect the dedicated IGCT gate driver board to the semiconductor terminals, ensuring secure fiber-optic or electrical command signal linkage.
- ๐ Thermal Clamp Setup: Mount the module within a liquid-cooled or forced-air heatsink assembly, applying the precise mechanical clamping force specified by ABB guidelines to ensure optimal thermal transfer.
- ๐ ๏ธ Electrical Inspection: Verify snubber circuit connections, DC-link capacitor banks, and commutation busbar alignments using high-precision multimeters and insulation testers.
- ๐ฅ Static Testing: Perform low-voltage gate firing tests and leakage current checks via drive diagnostics before releasing full operational voltage to the converter bridge.
๐ Manual / Automatic Mode Switching
Operational switching states for power semiconductor modules are managed entirely by the high-level gate driver and converter control electronics.
- โ๏ธ Automatic Mode: The module switches rapidly between conducting and blocking states in response to high-frequency PWM gate pulses generated by the master controller.
- ๐ ๏ธ Manual Mode / Maintenance Test: Technicians can execute static gate firing tests during scheduled maintenance using authorized low-power diagnostic test rigs.
- ๐ Switching Procedure: Live semiconductor switching under load is fully automatic; manual intervention is strictly restricted to total power isolation and lock-out/tag-out (LOTO) procedures.
โ Frequently Asked Questions (Q&A)
- Q: What is the primary function of the ABB 3BHE014105R0001 module?
- A: It serves as a high-power IGCT semiconductor switch used to control massive electrical currents in medium-voltage drives and excitation systems.
- Q: Does this module require specialized cooling?
- A: Yes, due to high power dissipation, it must be mounted between heavy-duty liquid-cooled or air-cooled heatsinks with precise mechanical clamping pressure.
- Q: Can this semiconductor device be replaced individually in a converter stack?
- A: Yes, but replacement requires strict adherence to cleanliness, torque wrench calibration for clamping forces, and replacement of thermal interface materials.
๐ Recommended Alternative Models from ABB
- ๐น ABB 5SXE08-0165 – IGCT Semiconductor Module Variant
- ๐น ABB 5SZA08D2500 – IGCT Gate Unit Driver Board
- ๐น ABB GFD233A103 – UNITROL Excitation Control Unit
- ๐น ABB GFD563A101 – Excitation Control Module
- ๐น ABB AC800M – Central Processing Controller Module
- ๐น ABB PM866K01 – Processor Unit for Control Systems
- ๐น ABB CI854K01 – PROFIBUS Communication Interface Module
- ๐น ABB DI810 – Digital Input Module (24 VDC)
- ๐น ABB DO810 – Digital Output Module (24 VDC)
- ๐น ABB AI810 – Analog Input Module
