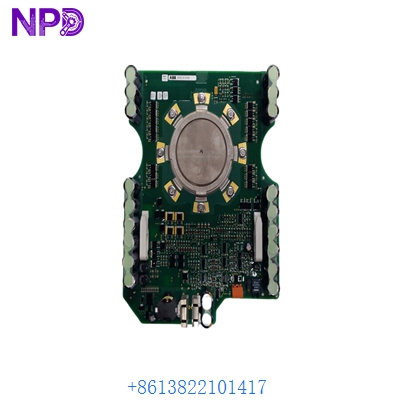

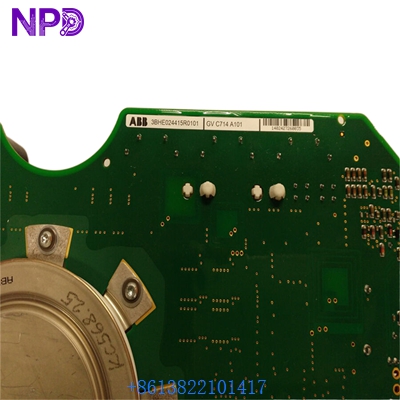

The ABB module, combining part numbers 5SHX1060H0003, 3BHE024415R0101, 3BHB020538R0001, and GVC714A101, functions as an integrated Integrated Gate Commutated Thyristor (IGCT) semiconductor assembly paired with its dedicated gate unit control board.
Manufactured by ABB, this high-power electronics component is engineered specifically for demanding medium-voltage frequency converters, industrial drives, and high-power energy transmission systems. It provides ultra-fast switching capabilities, precise gate triggering, and robust thermal management to ensure optimal efficiency and reliability under heavy industrial loads.
📊 Product Parameters & Technical Datasheet
• Brand: ABB
• Model: 5SHX1060H0003 / GVC714A101 (3BHE024415R0101 / 3BHB020538R0001)
• Series: Medium-Voltage Power Electronics & IGCT Series
• Product Name: IGCT Semiconductor and Gate Unit Control Module
• Country of Origin: Switzerland / Sweden
• Product Status: Industrial Power Semiconductor Hardware / Replacement Part
• Dimensions: Standard high-power industrial semiconductor module and printed circuit board assembly form factor
• Weight: Approx. 3.0 kg (complete IGCT and gate control card assembly)
• Power: High-voltage, multi-kilovolt switching rating designed for multi-megawatt drive applications
• Discontinuation Status: Active support and maintenance lifecycle with specialized industrial aftermarket availability
⚙️ Parameter Setting & Modification Methods
Configuring and adjusting parameters for this IGCT and gate control assembly are performed using specialized ABB engineering software designed for high-voltage drive systems.
Technicians interface via secure diagnostic ports or maintenance terminals to calibrate firing thresholds, monitor internal temperature sensors, and verify communication links. All adjustments must be executed strictly in accordance with ABB technical manuals while the power system is completely de-energized to prevent severe electrical hazards.
🔄 Manual and Automatic Mode Switching
The module integrates automated gate management with structured manual diagnostic capabilities.
In automatic mode, the embedded processor and gate control circuit manage real-time thyristor commutation, dynamic current sharing, and self-diagnostic error checks autonomously. Manual test modes, parameter calibration routines, or status resets can be engaged via system control software during routine maintenance, hardware troubleshooting, or system commissioning.
❓ Frequently Asked Questions (Q&A)
Q1: What is the primary function of the 5SHX1060H0003 GVC714A101 assembly?
A1: It operates as a high-power IGCT semiconductor and gate control unit designed to switch and manage heavy currents in medium-voltage industrial drives.
Q2: What specific hardware components are included in this module package?
A2: It combines the high-power IGCT semiconductor element (such as 5SHX1060H0003) with its matching gate unit control board (such as GVC714A101).
Q3: Can this power semiconductor module be replaced while the drive cabinet is energized?
A3: No, complete power isolation, electrical discharge, and lockout/tagout (LOTO) protocols must be strictly followed before handling high-voltage power modules.
