Product Overview

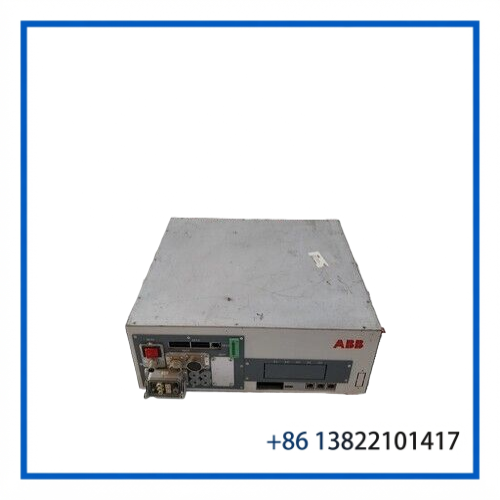

The ABB DSQC3030 is a Compact Industrial Robot Controller used within ABB robotic automation systems. The unit is identified with prototype designation B3-2-015 and is associated with an M04-12 carrier board. Available product records identify part number 3HAC059137-006/00 and an approximate weight of 14.69 kg.
This controller is intended for ABB robot system control and serves as a replacement or spare component for compatible robotic installations. Because robot controller configurations can depend on hardware revision, carrier board, installed modules, and system software, the complete identification information should be checked before replacement.
The current marketplace listing identifies the unit as an ABB Industrial Robot Controller, model DSQC3030, with the same approximately 14.69 kg weight.
Key Features
- ABB compact industrial robot controller
- Model DSQC3030
- Prototype B3-2-015
- M04-12 carrier board
- Part number 3HAC059137-006/00
- Associated M04-12 board marking: P2-033
- M49 board marking: P2-023
- Adbox marking: P2-032
- Approx. 14.69 kg
- Designed for ABB industrial robot control systems
Technical Datasheet
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | DSQC3030 |
| Product Type | Compact Industrial Robot Controller |
| Prototype | B3-2-015 |
| Part Number | 3HAC059137-006/00 |
| Carrier Board | M04-12 |
| M04-12 Revision | P2-033, Ver. 0.4-20170411 |
| M49 Board | P2-023, Ver. 0.3-20170214 |
| Adbox | P2-032 |
| Asset ID Listed | 402-CON3-632 |
| Weight | Approx. 14.690 kg |
The above identification details are taken from current product records for the DSQC3030.
Applications
The DSQC3030 is intended for ABB industrial robotic automation environments, including applications where an existing robot controller needs to be maintained or replaced.
Potential applications include:
- Industrial robot control
- Automated manufacturing cells
- Material handling systems
- Machine tending
- Assembly and production automation
- Robotic spare-parts inventory
- Replacement of an existing DSQC3030 controller
The exact robot model and application compatibility should be confirmed from the original controller configuration before installation.
Installation & Configuration
When replacing an existing DSQC3030, identification should be performed before disconnecting the original controller.
- Isolate the robot system and follow the site’s lockout procedure.
- Record the complete controller nameplate information.
- Verify DSQC3030 and B3-2-015 markings.
- Compare the part number 3HAC059137-006/00.
- Check the M04-12 carrier board and visible board revisions.
- Photograph all connectors and cable positions before removal.
- Transfer only compatible hardware and configuration components.
- Verify the controller software and robot-system configuration before commissioning.
- Power up under controlled conditions.
- Check controller status and robot communication before enabling motion.
A visually similar ABB controller should not automatically be treated as a direct substitute. Hardware revision and system configuration should match the existing installation.
Maintenance & Inspection
For a spare or used DSQC3030, inspect the controller before installation:
- Check the housing for impact or deformation.
- Inspect connectors for bent or oxidized contacts.
- Check internal boards for corrosion or heat discoloration.
- Verify the M04-12 carrier board marking.
- Record board revisions and serial information.
- Inspect cooling paths and fans where fitted.
- Remove dust and foreign material.
- Check for loose hardware or damaged terminals.
- Perform controlled power-up and communication testing when suitable equipment is available.
For long-term storage, keep the controller in a dry, ESD-safe environment and retain all identification labels.
Identification & Related Numbers
The following identifiers are useful when searching for or verifying this controller:
- DSQC3030
- 3HAC059137-006/00
- B3-2-015
- M04-12
- P2-033
- M49
- P2-023
- P2-032
- 402-CON3-632
One catalog record incorrectly presents DSQC1030 in the Model field while simultaneously identifying the unit as DSQC3030. For purchasing and replacement purposes, the complete DSQC3030 / 3HAC059137-006/00 / B3-2-015 identification set is preferable.
Replacement Notes
When sourcing a replacement, match the DSQC3030 designation together with the carrier-board and part-number information rather than relying on the model number alone.
The available listings consistently identify this unit as a used ABB industrial robot controller with an approximate weight of 14.69 kg.
For an installed ABB robot system, verify the existing controller’s hardware revision, software configuration, connected modules, and robot-system documentation before commissioning the replacement.
