๐ง Product Overview

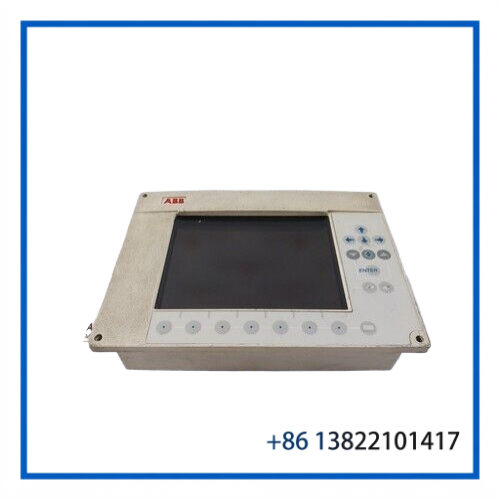

The ABB GOP 1 is a Graphic Operator Panel designed to provide a direct operator interface for industrial automation and control equipment. It allows users to view operating information and interact with the connected control system through a dedicated graphic interface.
This unit is identified as GOP 1, Version 1.7, with a 24 VDC, 40 VA input rating. The referenced listing also specifies a 12 V output at 3.3 A. The unit is listed as used and has a stated weight of approximately 5.680 kg.
For replacement applications, the version number and electrical specifications should be checked against the existing panel before installation.
โ๏ธ Key Features
- ABB GOP 1 Graphic Operator Panel
- Version 1.7
- 24 VDC input
- 40 VA input rating
- 12 V / 3.3 A output as listed
- Designed for industrial operator interface applications
- Provides local access to control-system information
- Suitable for maintenance and replacement requirements
- Industrial panel construction for continuous-duty environments
- Useful as a spare for existing ABB automation installations
๐ Product Datasheet
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | GOP 1 |
| Product Type | Graphic Operator Panel |
| Series / Family | ABB GOP |
| Version | 1.7 |
| Input Voltage | 24 VDC |
| Input Power | 40 VA |
| Output Voltage | 12 V |
| Output Current | 3.3 A |
| Interface Type | Graphic Operator Interface |
| Application | Industrial Automation / Machine Control |
| Condition | Used |
| Weight | Approx. 5.680 kg |
| Country of Origin | Finland, as listed |
| Quantity | 1 unit |
๐ฅ๏ธ Operating Function
The GOP 1 serves as the operator-facing interface between personnel and an industrial control system. Instead of requiring an operator to work directly with controller hardware, the graphic panel provides a more practical point for displaying operating information and entering control commands.
In a typical installation, the panel may be used for monitoring equipment status, viewing process information, checking alarms, and accessing operator-level control functions. The exact screens and available functions depend on the application software and the control system to which the panel is connected.
The 24 VDC / 40 VA electrical specification is important when checking a replacement unit. The power supply should be capable of providing stable DC power within the required range, with wiring polarity verified before energization.
๐ Power & Installation Notes
Before replacing an existing GOP 1, check the following:
- Model identification: GOP 1
- Version: 1.7
- Input requirement: 24 VDC
- Rated input power: 40 VA
- Output specification: 12 V / 3.3 A, if applicable to the specific unit
- Connector and terminal arrangement
- Existing control-system configuration
- Communication and interface wiring
- Panel mounting dimensions
Disconnect the power supply before removing the existing operator panel. Inspect the DC wiring, connectors, grounding, and enclosure condition before installing the replacement.
After installation, power up the panel and verify that the display starts normally. Check the connection with the host control system, confirm that the correct operating screens are available, and test basic operator functions before returning the equipment to service.
๐ ๏ธ Maintenance
Keep the front surface clean and dry, particularly in dusty industrial environments. Avoid aggressive cleaning chemicals that could damage the display surface or front-panel materials.
For a used replacement unit, inspect the following before installation:
- Display condition
- Front-panel buttons or controls
- Connector condition
- Power terminals
- Signs of corrosion or contamination
- Internal fan or ventilation openings, if fitted
- Nameplate and version information
If the panel is being stored as a spare, keep it in a dry, dust-free environment and protect the connectors from mechanical damage.
โ Common Questions
Q: What is the ABB GOP 1?
A: It is a Graphic Operator Panel used as an operator interface for industrial automation and control equipment.
Q: What is the input power requirement?
A: The referenced unit is specified for 24 VDC and 40 VA.
Q: What version is this panel?
A: The listing identifies it as Version 1.7.
Q: Does this unit have a 12 V output?
A: A matching listing specifies a 12 V output at 3.3 A. This should be verified from the actual nameplate before using the output specification for system design.
Q: Is this particular unit new?
A: No. The referenced listing identifies the condition as Used.
Q: What is the weight?
A: The listing specifies approximately 5.680 kg.
Q: Can any GOP 1 be used as a direct replacement?
A: Not automatically. Version, electrical specifications, wiring, connectors, and the host control-system configuration should be compared before replacement.
๐ 10 Related ABB Models
- ABB GOP 1 Graphic Operator Panel
- ABB GOP 2 Graphic Operator Panel
- ABB GOP 3 Graphic Operator Panel
- ABB CP400 Operator Panel
- ABB CP410M Operator Panel
- ABB CP415M Operator Panel
- ABB CP420M Operator Panel
- ABB CP430M Operator Panel
- ABB CP450M Operator Panel
- ABB CP600 Operator Panel
๐ญ Application Summary
The ABB GOP 1 is suited to industrial automation environments where operators need a dedicated local interface for equipment monitoring and control. Its 24 VDC / 40 VA specification makes it suitable for control-panel power architectures commonly found in industrial equipment.
For maintenance inventory, the most important identification points are GOP 1, Version 1.7, and the 24 VDC / 40 VA rating. Matching these details with the existing installation helps reduce the risk of installing an electrically or functionally incompatible replacement.
