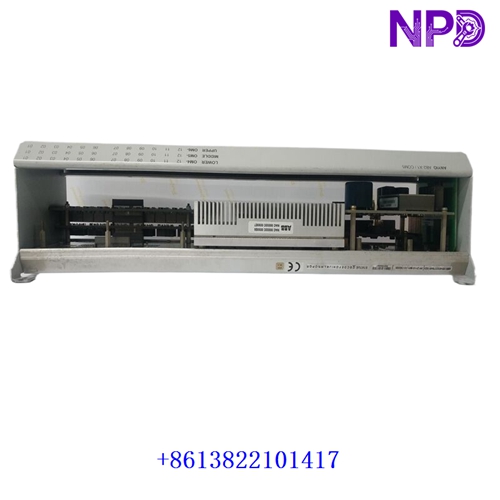

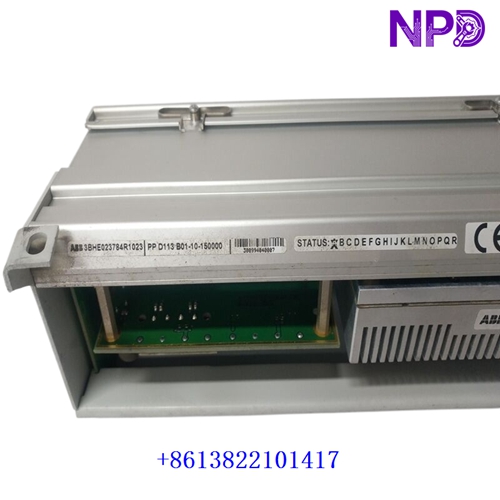

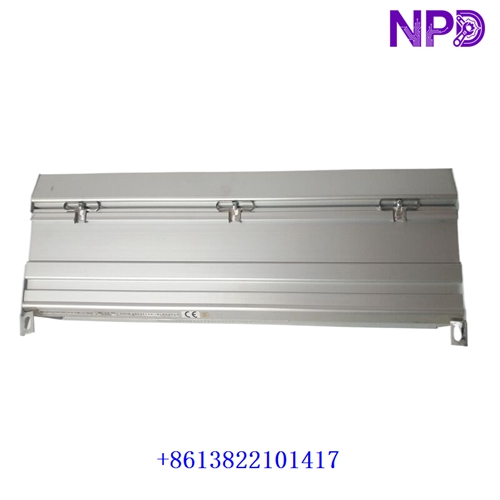

ABB PPD113 | AC 800PEC | High-Speed Control System

Product Description

The ABB PPD113 is an AC 800PEC high-performance control system designed for applications that require very fast control processing, particularly power electronics, high-power converters, drives, excitation systems, and industrial process control. The AC 800PEC combines high-speed control with conventional process-control functions in one controller. ABB documentation describes the platform as supporting very fast control loops down to approximately 100 μs, while its modular architecture provides fiber-optic connections to peripheral I/O and power-converter equipment. The controller can also support Ethernet, serial communication, CEX/AnyIO interfaces, and optical PowerLink connections depending on the installed configuration.

Product Parameters

Item	Specification
Brand	ABB
Model	PPD113
Product Family	AC 800PEC
Product Type	High-Speed Control System
Application	Power Electronics, Drives, Excitation and Industrial Process Control
Control Performance	Fast control cycles down to approximately 100 μs
Processor	AC 800PEC high-performance RISC processor architecture
I/O Communication	Optical fiber-based connections
Network Interfaces	Ethernet, RS-232 / RS-422, AnyIO/CEX depending on configuration
PowerLink Support	Up to 36 bidirectional fiber-optic links
Mounting	DIN rail / system-specific mounting
Configuration	Depends on installed PP D113 variant and modules
Status	Legacy AC 800PEC platform
Condition	Verify actual unit condition and configuration before installation

FAQ

Q: What is the ABB PPD113?

A: PPD113 is an ABB AC 800PEC controller configuration used for high-speed industrial control, especially power electronics and converter-related applications.

Q: What applications use AC 800PEC?

A: AC 800PEC is designed for high-power converters, drives, power generation and distribution, transportation and traction, and other applications requiring fast control together with conventional process control.

Q: Is PPD113 a complete system or only a processor?

A: PPD113 identifies an AC 800PEC controller/system configuration. The exact hardware contents depend on the specific PP D113 variant, including its AnyIO, optical, communication, and other installed modules.

Q: What should be checked before replacement?

A: Verify the complete PP D113 designation, ABB product ID, installed option modules, communication interfaces, firmware/software requirements, and fiber-optic connections. Different PPD113 configurations can contain different modules.
