๐น Product Overview

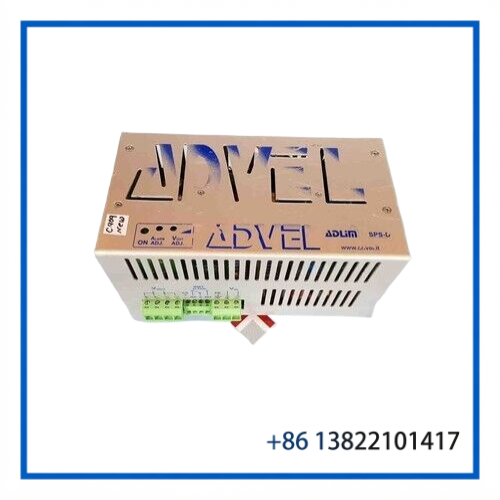

The ADVEL SRL SPS201DZ1-88/264A-110-1,8 is an SPS-D series AC/DC power supply designed to provide a regulated 110 VDC output for industrial and marine electrical systems.
The unit accepts a wide 88โ264 VAC input range at 48โ62 Hz and provides a 110 VDC output rated at 1.8 A, with a 200 W output rating. The specified input rating is 240 VA. The model is identified with ADVEL part number 5100-C003 in available product references.
ADVEL’s SPS-D product family is designed for demanding power-system applications and supports parallel operation, redundancy configurations, and current sharing.
๐ Technical Data
| Parameter | Specification |
|---|---|
| Brand | ADVEL SRL |
| Model | SPS201DZ1-88/264A-110-1,8 |
| Series | SPS-D / SPS-DZ1 |
| Product Type | AC/DC Power Supply |
| Part Number | 5100-C003 |
| Input Voltage | 88โ264 VAC |
| Input Frequency | 48โ62 Hz |
| Input Rating | 240 VA |
| Output Voltage | 110 VDC |
| Output Current | 1.8 A |
| Output Power | 200 W |
| Mounting | System-dependent; verify physical configuration |
| Country of Origin | Italy |
| Approx. Weight | 2 kg |
| Condition of Supplied Listing | New โ Open Box |
| Application | Industrial / Marine Power Supply |
The supplied eBay listing identifies the unit as NewโOpen Box, while other listings for the same model are offered as used. Therefore, condition should be stated according to the actual inventory unit being sold.
โ๏ธ Key Features
- Wide 88โ264 VAC input range
- 48โ62 Hz operating frequency
- 110 VDC nominal output
- 1.8 A output current
- 200 W output power
- 240 VA input rating
- ADVEL SPS-D series design
- Suitable for industrial DC power distribution
- Designed for applications where reliable DC power is required
- Supports system-level redundancy and parallel configurations within the SPS-D family
๐ Redundancy & Parallel Operation
One useful feature of the ADVEL SPS-D family is its support for redundant power architectures. ADVEL states that its power supplies can be arranged in series or parallel for different redundancy configurations, including 100% redundancy and N+1/N+2 arrangements. Current-sharing functions can also be used when multiple compatible supplies operate in parallel.
For this specific SPS-DZ1 model, compatibility with another power-supply series should not be assumed solely from the output rating. ADVEL specifically notes that SPS-DZ1 is electrically compatible with SPS-DX in parallel applications, while mechanical differences between series should be checked before installation.
๐ข Typical Applications
Marine Automation
The 110 VDC output makes this type of power supply suitable for DC power requirements within marine automation and electrical-control systems.
Industrial Control Systems
It can be used to supply DC power to control equipment, instrumentation, interface electronics, and other system components requiring a 110 VDC source.
Control & Protection Panels
The unit can serve as a dedicated DC power source within industrial control, monitoring, and protection cabinets.
Redundant Power Systems
Multiple compatible SPS-D units can be configured for higher system availability where the installation requires redundant power architecture.
๐ง Identification Information
For replacement or procurement, check the physical nameplate for:
- ADVEL SRL
- SPS-D / SPS-DZ1 designation
- SPS201DZ1-88/264A-110-1,8
- P/N 5100-C003
- Input: 88/264 VAC, 48/62 Hz, 240 VA
- Output: 110 VDC, 1.8 A / 200 W
The model and P/N combination is particularly useful when matching a replacement unit to an existing installation.
โ Frequently Asked Questions
Q: What is the output voltage of this ADVEL power supply?
A: The specified output is 110 VDC.
Q: What is the maximum output current?
A: The model is rated at 1.8 A.
Q: What is the output power?
A: The listed output rating is 200 W.
Q: What input voltage does it accept?
A: The specified input range is 88โ264 VAC, at 48โ62 Hz.
Q: What is the ADVEL part number?
A: Available references identify it as 5100-C003.
Q: Can multiple SPS-D power supplies be connected in parallel?
A: The SPS-D family supports parallel and redundant configurations, including current sharing. However, the exact combination should be verified for the specific model and installation.
Q: Is this the same as a 200 W SPS201 power supply?
A: It belongs to the 200 W SPS201 class, but the complete model designation is important because the input and output voltage configuration differentiates individual versions.
๐ Related ADVEL Models
The following models belong to or are closely related to the ADVEL SPS-D power-supply family:
- ADVEL SPS31D1 โ 25 W
- ADVEL SPS51DX โ 50 W
- ADVEL SPS101DX โ 100 W
- ADVEL SPS151DX โ 150 W
- ADVEL SPS201DX โ 200 W
- ADVEL SPS251DX โ 250 W
- ADVEL SPS301DX โ 300 W
- ADVEL SPS351DX โ 350 W
- ADVEL SPS501DX โ 500 W
- ADVEL SPS601DX โ 600 W
ADVEL’s official SPS-D family page lists these power classes and also identifies the SPS201DX as the 200 W member of the standard SPS-D family. These should be treated as related models, not automatic drop-in replacements for the SPS201DZ1-88/264A-110-1,8.
๐ ๏ธ Compatibility & Ordering Notes
Before replacing an existing power supply, compare the complete model number rather than only the 200 W rating.
Verify:
- Input voltage range
- Input frequency
- 110 VDC output requirement
- 1.8 A output current
- 200 W output rating
- Terminal and connector arrangement
- Mechanical mounting dimensions
- Existing redundancy configuration
- Current-sharing wiring, if applicable
ADVEL specifically warns that power supplies from different series may have mechanical differences even where electrical parallel compatibility exists.
For the supplied listing, the exact model is SPS201DZ1-88/264A-110-1,8, with ADVEL part number 5100-C003. The listing condition is New โ Open Box.
