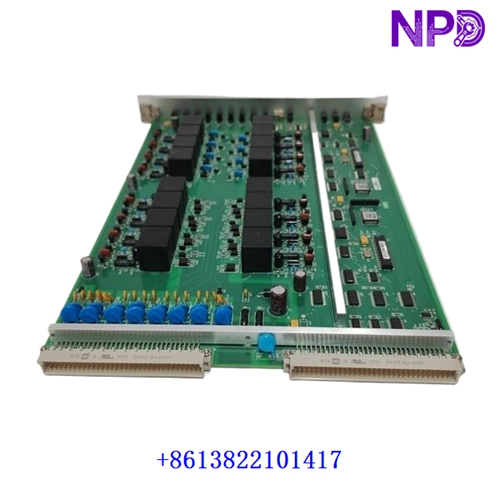

📌 Introduction to Alstom VOOB8-B 12004-106-04 VER:V1.0.0 Control Board
The Alstom control board, bearing part number VOOB8-B 12004-106-04 (VER:V1.0.0), is a highly integrated universal input/output (I/O) processing and control module designed specifically for demanding industrial automation and rail transit applications.
Manufactured by Alstom, this advanced module handles multi-channel digital and analog signal acquisition, precise data routing, and real-time processing to ensure seamless coordination across complex automation architectures, power systems, and train control management networks.
📊 Product Parameters & Technical Datasheet
• Brand: Alstom
• Model: VOOB8-B 12004-106-04 VER:V1.0.0
• Series: Industrial Control & Rail Transit Automation Line
• Product Name: Control Board & I/O Processing Module
• Country of Origin: France / United Kingdom
• Product Status: Industrial Control Hardware / Active & Replacement Part
• Dimensions: Approx. 150 mm × 100 mm × 50 mm (standard rack or rail mount format)
• Weight: Approx. 1.2 kg
• Power Consumption: Low power operation optimized for standard industrial and vehicle power buses (24VDC / 110VDC)
• Discontinuation Status: Supported industrial hardware line with specialized aftermarket availability
⚙️ Parameter Setting & Modification Methods
Configuring and modifying parameters on the VOOB8-B control board is typically executed using dedicated Alstom engineering software suites or internal configuration tools.
Technicians connect via secure serial or network communication interfaces to adjust input/output scaling, communication node addresses, filtering configurations, and diagnostic triggers. All parameter changes require proper administrative authorization and must be verified offline or during scheduled system maintenance outages.
🔄 Manual and Automatic Mode Switching
The control board operates primarily through advanced automated data acquisition and processing routines while supporting structured manual controls.
In automatic mode, the module autonomously samples field inputs, executes programmed logic, exchanges high-speed deterministic data via internal buses (such as MVB or Ethernet), and reports status without human intervention. Manual test modes, diagnostic overrides, or hardware resets can be initiated through software commands or maintenance interfaces during system commissioning, routine calibration, or troubleshooting.
❓ Frequently Asked Questions (Q&A)
Q1: What is the primary function of the VOOB8-B 12004-106-04 module?
A1: It operates as a universal I/O processing and control board designed to acquire sensor data, manage signal communications, and execute control logic within industrial and rail systems.
Q2: How does the module communicate with central controllers?
A2: It exchanges high-speed and deterministic data through standard internal communication buses such as MVB, CAN, or industrial Ethernet protocols.
Q3: Can this board be replaced while the system is powered?
A3: No, complete power isolation, system shutdown, and standard anti-static handling procedures must be followed before installing or replacing control boards.
