๐ Product Overview

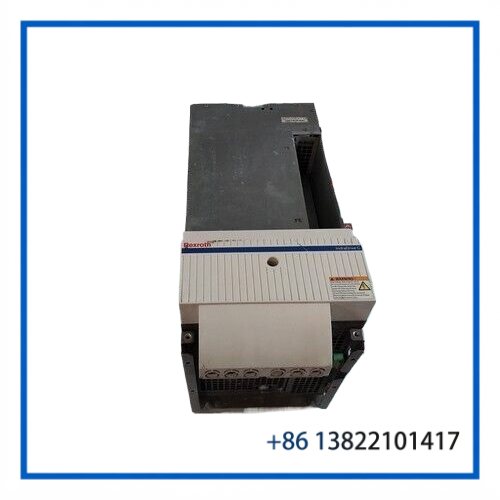

The BOSCH REXROTH HCS03.1E-W0100-A-05-NPBV is an IndraDrive C compact converter designed for demanding industrial motion control applications. It belongs to the HCS03 converter platform and is intended for single-axis drive systems operating from a three-phase 400โ500 VAC power supply.
With a 100 A maximum current rating and 75 A continuous output capability, this converter is suitable for applications requiring controlled motor operation, fast response, and reliable drive performance. The compact design allows it to be integrated into automation cabinets where installation space is limited.
โ๏ธ The unit uses internal air cooling and is designed for industrial control environments. Depending on the installed control unit and system configuration, the IndraDrive platform can support interfaces for automation, encoder feedback, safety functions, and additional digital or analog signals.
โจ Main Features
๐น IndraDrive C HCS03 compact converter platform
๐น Three-phase 400โ500 VAC power supply
๐น 100 A maximum current
๐น Approximately 75 A continuous output current
๐น 50โ60 Hz mains frequency
๐น Output voltage up to 3 ร AC 480 V
๐น Output frequency up to 1600 Hz, depending on switching configuration
๐น Internal air cooling
๐น IP20 protection rating
๐น Compact single-axis drive architecture
The HCS03.1E-W0100 platform is designed for industrial motion applications requiring a compact converter with substantial current capacity.
๐ Product Datasheet
| Parameter | Specification |
|---|---|
| Brand | BOSCH REXROTH |
| Model | HCS03.1E-W0100-A-05-NPBV |
| Series | IndraDrive C HCS03 |
| Product Name | Compact Converter |
| Product Type | Single-Axis Drive Converter |
| Input Voltage | 3 ร AC 400โ500 V |
| Input Current | 80 A |
| Input Frequency | 50โ60 Hz |
| Output Voltage | 3 ร AC 0โ480 V |
| Continuous Output Current | 75 A |
| Maximum Current | 100 A |
| Maximum Output Frequency | Up to 1600 Hz |
| Cooling Method | Internal Air Cooling |
| Protection Rating | IP20 |
| Ambient Temperature | Up to 40ยฐC |
| Short Circuit Current Rating | 42,000 A |
| Dimensions | Approx. 225 ร 315 ร 440 mm |
| Weight | Approx. 19 kg |
| Country of Origin | Germany |
| Condition | Verify according to the individual supplied unit |
The electrical data above corresponds to the HCS03.1E-W0100 converter platform and the referenced model configuration. Exact suffix-code functions should always be checked against the equipment nameplate before installation or replacement.
๐ญ Typical Applications
๐ญ CNC and machine tool systems
๐ฆ Packaging machinery
๐ค Industrial robotics
โ๏ธ Automated assembly equipment
๐๏ธ Material handling systems
๐ฉ Metalworking and processing machinery
๐ Automotive production equipment
The compact converter can be used in industrial motion systems where a compatible motor, control unit, feedback system, and IndraDrive system architecture are selected together.
โ Frequently Asked Questions
Q1: What is the main function of the HCS03.1E-W0100-A-05-NPBV?
A: It is an IndraDrive C compact converter used to control industrial motor and motion applications within a compatible Bosch Rexroth drive system.
Q2: What input voltage does this model require?
A: The converter operates from a three-phase AC 400โ500 V power supply with a rated mains frequency of 50โ60 Hz.
Q3: What is the maximum current rating?
A: The HCS03.1E-W0100 platform has a maximum current rating of 100 A, with approximately 75 A continuous output current for the referenced configuration.
Q4: Does the converter require external cooling?
A: The unit uses internal air cooling. Proper cabinet ventilation and installation clearance should still be maintained according to the system installation requirements.
Q5: What is the protection rating?
A: The HCS03 converter configuration is rated IP20 and should therefore be installed inside a suitable industrial electrical enclosure.
Q6: Can it directly replace another HCS03 converter?
A: Not automatically. The complete type code must be checked, including current rating, voltage code, design version, control voltage configuration, braking configuration, control unit, firmware, and system compatibility.
Q7: What should be checked before installation?
A: Confirm the complete part number, input voltage, motor compatibility, current rating, feedback interface, control unit, firmware requirements, cabinet cooling, grounding, and wiring configuration before commissioning.
๐ง Recommended BOSCH REXROTH Models
๐น BOSCH REXROTH HCS03.1E-W0070 โ IndraDrive C Compact Converter
๐น BOSCH REXROTH HCS03.1E-W0150 โ IndraDrive C Compact Converter
๐น BOSCH REXROTH HCS03.1E-W0210 โ IndraDrive C Compact Converter
๐น BOSCH REXROTH HCS03.1E-W0280 โ IndraDrive C Compact Converter
๐น BOSCH REXROTH HCS03.1E-W0350 โ IndraDrive C Compact Converter
๐น BOSCH REXROTH HCS02 Series โ Compact Drive Converter
๐น BOSCH REXROTH HMS Series โ IndraDrive Supply Unit
๐น BOSCH REXROTH HMV Series โ IndraDrive Power Supply Unit
๐น BOSCH REXROTH HMD Series โ IndraDrive Drive System Component
๐น BOSCH REXROTH IndraDrive M Series โ Modular Drive System
These models belong to related Bosch Rexroth IndraDrive drive platforms. Exact electrical and mechanical compatibility should be confirmed from the complete type code and system configuration before ordering or replacement.
