B&R 8V1640.001-2 | ACOPOS 1640 Servo Drive

Product Overview

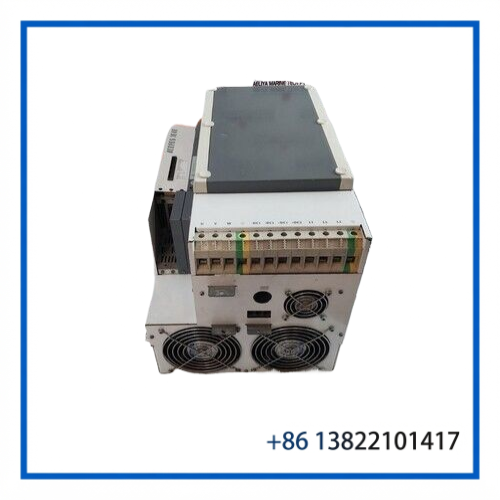

The B&R 8V1640.001-2 is an ACOPOS 1640 servo drive designed for industrial motion-control applications. It accepts a three-phase 400–480 VAC supply and supports 50/60 Hz operation. The unit has a maximum installed load of 54 kVA and includes an integrated line filter, DC bus power supply, braking resistor, and electronic safe restart inhibit.

This version uses partially coated printed circuit boards, identified by B&R ID code 0xA09C. The modular design provides four slots for plug-in modules, allowing the drive configuration to be adapted to the requirements of the control system.

Key Features

ACOPOS 1640 servo drive
Three-phase 400–480 VAC input
50/60 Hz operating frequency
Maximum installed load: 54 kVA
64 A / 32 kW ACOPOS configuration
Integrated line filter, EN 61800-3 Category C3
Integrated braking resistor
DC bus power supply
Electronic safe restart inhibit
Partially coated circuit boards
Four plug-in module slots
DC bus capacitance: 3300 µF
Approx. 1600 W power dissipation at nominal device power without braking resistor

Technical Datasheet

Parameter	Specification
Brand	B&R
Model	8V1640.001-2
Product Family	ACOPOS 1640
B&R ID Code	0xA09C
Input Voltage	3 × 400–480 VAC ±10%
Input Frequency	50/60 Hz ±4%
Maximum Installed Load	54 kVA
Rated Drive Configuration	64 A / 32 kW
Inrush Current	26 A at 400 VAC
DC Bus Capacitance	3300 µF
Line Filter	Integrated, EN 61800-3 Category C3
24 VDC Supply	24 VDC +25% / -20%
Protection	IP20
Operating Temperature	5 to 40°C nominal; 55°C maximum
Storage Temperature	-25 to 55°C
Dimensions	276 × 460 × 295 mm
Weight	Approx. 24.1 kg
PCB Version	Partially coated

The above specifications are based primarily on B&R’s published product data.

Application

The ACOPOS 1640 is intended for machine motion-control systems where a high-power servo drive is required. Typical applications can include:

Automated production machinery
Packaging and material-handling equipment
Industrial positioning systems
Machine tools
Multi-axis motion-control systems
High-power servo motor applications

The actual motor, feedback interface, fieldbus configuration, and plug-in modules should be matched to the existing B&R system configuration before replacement.

Installation & Configuration

Before installation, verify the drive model, nameplate data, mains voltage, motor rating, installed option modules, and existing B&R configuration.

The unit requires a suitable three-phase 400–480 VAC supply. Proper grounding and cabinet ventilation are important because the manufacturer specifies approximately 1600 W of power dissipation at nominal device power without the braking resistor.

For replacement work, compare the existing plug-in modules and interfaces with the replacement unit. B&R Automation Studio hardware configuration should also be checked before commissioning.

Do not connect or disconnect power wiring while the drive is energized. Allow sufficient time for the DC bus to discharge and verify the DC bus voltage with appropriate test equipment before servicing.

Maintenance Recommendations

Keep the drive installed in a clean, dry control cabinet and maintain adequate airflow around the unit.

During inspection, check:

Cooling paths and ventilation
Power and motor terminals
Ground connections
Plug-in modules and connectors
Signs of overheating or discoloration
DC bus and braking-resistor circuitry
Error and diagnostic information

If the drive is removed from service for an extended period, protect it from moisture, dust, and electrostatic discharge.

Replacement Notes

The suffix “.001-2” is significant. It identifies the version with partially coated printed circuit boards, so it should not automatically be treated as identical to every 8V1640 variant. B&R lists the standard 8V1640.00-2 and the 8V1640.001-2 as separate product variants.

When replacing an existing unit, compare the complete part number rather than matching only “8V1640”.
