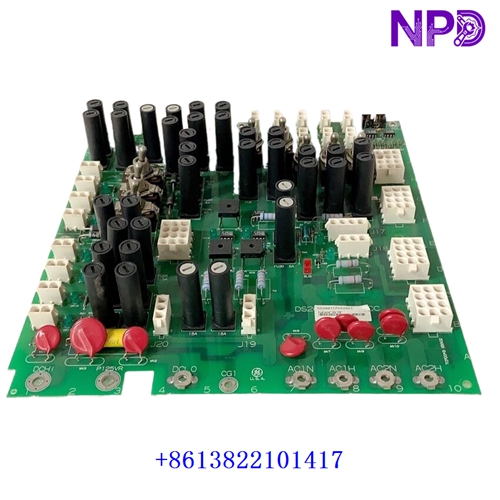

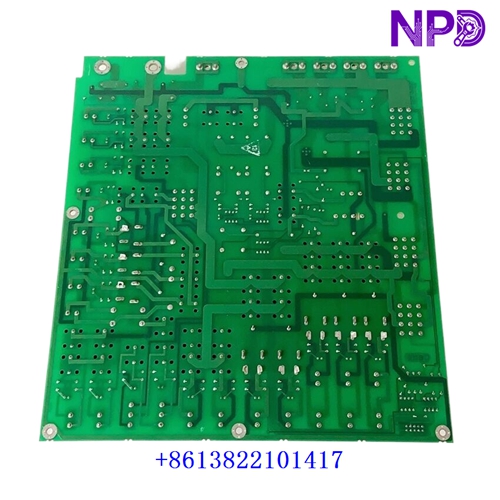

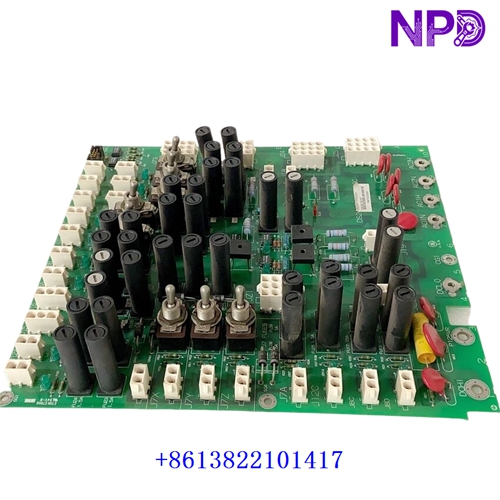

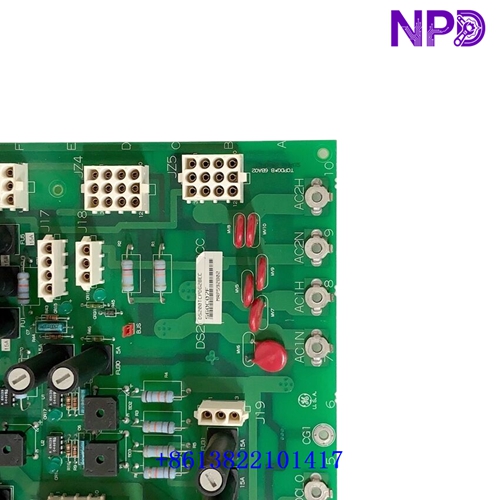

The General Electric DS200TCPDG2B is a vital Power Distribution Board engineered specifically for the Mark V gas and steam turbine control system. Designed to distribute regulated DC power to various control modules, terminal boards, and processor cores, this printed circuit assembly ensures stable and continuous electrical operation across high-stakes power generation infrastructure. Built with heavy-duty industrial components, the DS200TCPDG2B Power Distribution Board provides robust filtering, protection against transient voltage spikes, and reliable power management to safeguard sensitive turbine control electronics from electrical disturbances.
๐ Technical Specifications & Datasheet
- ๐ท๏ธ Brand: General Electric (GE / Alstom)
- ๐ Model: DS200TCPDG2B
- ๐ Series: Mark V Turbine Control System
- ๐ Product Name: Power Distribution Board / Module
- ๐ Place of Origin: United States
- โก Product Status: Active / Factory Surplus
- ๐ Dimensions: Standard Mark V rack card form factor
- โ๏ธ Weight: 0.65 kg
- ๐ Country of Origin: United States
- ๐ Discontinuation Status: Supported Legacy Component
โ๏ธ Parameter Configuration and Modification Methods
As a passive power distribution and voltage routing board, the DS200TCPDG2B does not require software programming or firmware configuration. However, physical setup and verification involve precise maintenance steps:
- ๐ป Hardware Inspection: Inspect physical jumpers, terminal blocks, and fuse configurations against engineering drawings before installation.
- ๐ Power Isolation: Ensure all primary rack power sources and external AC/DC supplies are completely de-energized and locked out prior to handling the board.
- ๐ ๏ธ Chassis Installation: Carefully align and slide the board into its designated slot within the Mark V core or VME cabinet enclosure, securing all retention screws.
- ๐ฅ Voltage Verification: Power on the system and use a digital multimeter to test output bus voltages and verify that fuse status indicators show normal operation.
๐ Manual / Automatic Mode Switching
Operational modes for power distribution modules are managed entirely by the automated power supply architecture of the Mark V control system.
- โ๏ธ Automatic Mode: The board continuously routes, filters, and distributes regulated power rails to system modules without requiring operator intervention.
- ๐ ๏ธ Manual Mode / Inspection: Physical fuse checking and voltage testing can be performed manually by authorized technicians during scheduled maintenance outages.
- ๐ Switching Procedure: No active runtime mode switching is required, as power distribution is entirely automatic based on primary rack power activation.
โ Frequently Asked Questions (Q&A)
- Q: What is the primary function of the GE DS200TCPDG2B board?
- A: It serves as a power distribution board in the Mark V turbine control system, regulating and routing DC power rails to internal modules and terminal boards.
- Q: Does the board feature replaceable protection fuses?
- A: Yes, it incorporates onboard fuses and protection components designed to isolate electrical overloads and protect downstream circuitry.
- Q: Can this power distribution board be replaced while the turbine control system is online?
- A: Live replacement is generally not recommended unless specific redundant core power protocols and safety permits are strictly followed.
