๐ง Product Overview

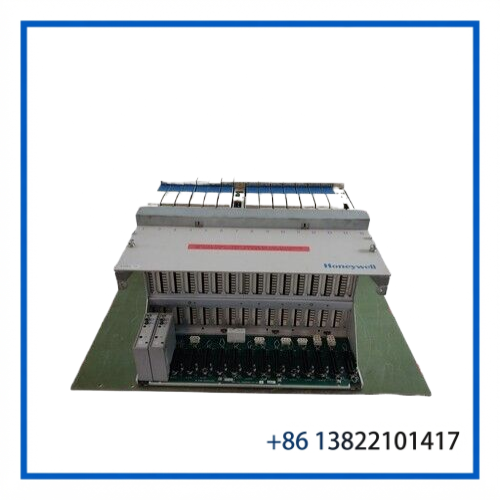

The HONEYWELL 51402599-100 is a 15-slot SIOM Backplane System designed for Honeywell industrial process-control I/O architecture. The backplane provides the physical and electrical interface for Serial I/O Modules and associated I/O assemblies within the control system.
This assembly is associated with Honeywell TDC 3000-era I/O hardware and is commonly identified with the 15 SIOM Backplane designation. Depending on the specific assembly revision, related numbers such as 51304419-100, 51304754-150, 51304485-100, 51402625-125, and 51401618-100 may appear on the complete system or installed modules.
Because these systems can be supplied in different revisions and configurations, the exact backplane revision, installed modules, and included cables should be checked before replacement.
โ๏ธ Key Features
- Honeywell 15-slot SIOM backplane system
- Part number 51402599-100
- Designed for Serial I/O Module system architecture
- Provides mounting and interconnection for SIOM-related hardware
- Supports modular industrial I/O configurations
- Associated with Honeywell TDC 3000 process-control equipment
- Multiple revision configurations may exist
- Related assembly numbers may be marked on the system
- Suitable for maintenance, replacement, and legacy-system spare inventory
- Industrial rack/backplane construction for control-system applications
๐ Product Datasheet
| Parameter | Specification |
|---|---|
| Brand | Honeywell |
| Model / MPN | 51402599-100 |
| Product Type | 15-Slot SIOM Backplane System |
| Series / Architecture | SIOM |
| Application | Industrial Process Control / I/O |
| Slot Capacity | 15 SIOM Slots |
| Primary Function | I/O Module Backplane / Interconnection |
| Related Assembly No. | 51304419-100 |
| Related Assembly No. | 51401618-100 |
| Related Part No. | 51304754-150 |
| Related Part No. | 51304485-100 |
| Related Part No. | 51402625-125 |
| Revision | Configuration dependent; verify nameplate |
| Listed Weight | Approx. 16.37 kg |
| Country of Origin | Japan, as listed for matching units |
| Condition | Used |
| System Compatibility | Honeywell legacy SIOM/TDC 3000 architecture |
โ๏ธ Operating Function
A backplane is the connection point between individual I/O modules and the wider control-system architecture. Instead of wiring every module independently to the main control equipment, the backplane provides the required electrical and signal interconnections between installed modules and the system interface.
For the 51402599-100, the 15-slot arrangement allows multiple SIOM-related modules to be installed in one organized assembly. The actual module mix can vary. Matching assemblies have been documented with digital input, digital output, analog input, SOE input, and I/O link-related modules.
The backplane itself should therefore be viewed as the infrastructure of the I/O assembly rather than as a standalone signal-conditioning module.
๐ ๏ธ Installation & Configuration
Before installing a replacement 51402599-100, compare the complete assembly with the existing unit.
Recommended checks include:
- Confirm the 51402599-100 part number.
- Check the revision marking on the backplane.
- Compare all installed module positions.
- Verify assembly numbers on individual I/O cards.
- Check connectors and cable routing.
- Inspect backplane pins and sockets for oxidation or mechanical damage.
- Confirm that mounting hardware is complete.
- Verify the associated SIOM and controller configuration.
- Record the existing slot arrangement before removing the old assembly.
- Check system documentation before energizing the replacement.
Do not assume that two units with the same basic 51402599-100 number have identical installed modules. Revision and configuration differences can be important when replacing legacy control hardware.
๐ Maintenance Tips
For an older Honeywell I/O system, the backplane deserves careful inspection because intermittent connections can be difficult to distinguish from module failures.
During maintenance, inspect:
- Backplane connectors
- Module locking mechanisms
- PCB contacts
- Cable connectors
- Signs of corrosion
- Dust accumulation
- Discoloration from overheating
- Loose mounting hardware
- Damaged wiring
- Module seating and alignment
When troubleshooting an intermittent I/O channel, first verify that the affected module is properly seated and that the corresponding backplane connector is clean and mechanically sound.
For long-term spare storage, keep the assembly in an ESD-safe package and a dry, temperature-controlled environment.
โ Frequently Asked Questions
Q: What is the HONEYWELL 51402599-100?
A: It is a 15-slot SIOM Backplane System used in Honeywell legacy industrial process-control I/O architecture.
Q: What does SIOM mean in this system?
A: SIOM refers to the Serial I/O Module architecture used for modular industrial I/O interfacing.
Q: How many slots does this backplane provide?
A: The assembly is identified as a 15-slot SIOM backplane.
Q: Is 51402599-100 a standalone I/O module?
A: No. It is primarily a backplane/system assembly that provides the physical and electrical interconnection for compatible I/O modules.
Q: Are modules included with every 51402599-100?
A: No. The supplied configuration can vary. Some assemblies are offered as a backplane only, while others may include installed I/O modules and cables.
Q: What other part numbers may appear on a complete system?
A: Depending on the configuration, numbers such as 51304419-100, 51401618-100, 51304754-150, 51304485-100, and 51402625-125 may be present.
Q: Is the part suitable as a direct replacement?
A: It can be considered for replacement when the part number, revision, slot configuration, and installed modules match the existing system. Always compare the complete assembly before installation.
Q: What condition is commonly available for this part?
A: Matching market listings commonly identify the 51402599-100 as used equipment. Actual condition should be confirmed from the individual unit and seller inspection report.
๐ 10 Related Honeywell Models / Components
- Honeywell 51401618-100 โ SIOM Backplane System Assembly
- Honeywell 51304419-100 โ I/O Link Extender Assembly
- Honeywell 51304754-150 โ High-Level Analog Input Module
- Honeywell 51304754-100 โ Analog Input Module
- Honeywell 51304485-100 โ Digital Input Module
- Honeywell 51402625-125 โ Redundant Digital Input / SOE Module
- Honeywell 51304487-100 โ Digital Output Module
- Honeywell 51309152-175 โ Analog Output Module
- Honeywell 51402598-100 โ Associated I/O Assembly
- Honeywell 51303926-100 โ Related I/O System Assembly
These components are related to configurations documented around the 15-SIOM backplane family. They should not be treated as automatically interchangeable with 51402599-100.
๐ญ Application Summary
The HONEYWELL 51402599-100 is primarily a legacy process-control infrastructure component. Its main role is to organize and interconnect multiple SIOM-related I/O modules within a Honeywell control system.
For maintenance teams supporting older TDC 3000 or related Honeywell installations, keeping a correctly matched backplane in spare inventory can be useful when an aging I/O rack develops connector, backplane, or mechanical problems.
For replacement purchasing, the safest approach is to match the complete part number, revision, slot arrangement, installed modules, and associated assembly numbers rather than relying on the general โ15 SIOM Backplaneโ description alone.
