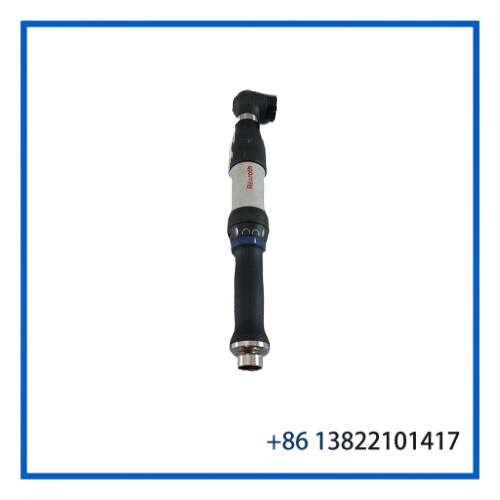

Rexroth ESA056G-G | Handheld Nutrunner 0 608 841 228

🔧 Product Overview

The Rexroth ESA056G-G is a professional handheld nutrunner designed for controlled industrial fastening applications. The unit is identified by Bosch Rexroth material number 0 608 841 228 and is built for applications where repeatable tightening and torque monitoring are important.

The tool has a working torque range of approximately 11–56 Nm in the ESA056G-G configuration. Available product data also identifies a maximum drive speed of 710 rpm, a 3/8-inch square tool mount, and an integrated measurement transducer. The tool is designed for safety-critical tightening applications in accordance with VDI/VDE 2862.

The referenced unit is a used industrial tool. Its nameplate and complete part number should be checked before installation because Rexroth tightening tools can differ by torque range, drive configuration, and control-system requirements.

⚙️ Key Features

• Bosch Rexroth ESA056G-G handheld nutrunner
• Material number: 0 608 841 228
• Rated torque designation: 11–56 Nm
• Maximum drive speed: 710 rpm
• 3/8-inch square tool mount
• Integrated torque measurement transducer
• Right-angle handheld configuration
• Secondary grip for improved handling
• Integrated LED indicators
• Designed for controlled industrial fastening
• Suitable for safety-critical tightening applications
• 3-phase 230 VAC supply configuration
• 0–250 Hz frequency range
• 200 W power rating
• Made in Germany
• Approximate weight: 2.14 kg as listed

The product data for 0 608 841 228 also describes a maintenance-free design for up to 1 million full-load cycles and identifies the tool as suitable for safety-critical tightening work.



📋 Product Datasheet

Parameter	Specification
Brand	Rexroth / Bosch Rexroth
Model	ESA056G-G
Material Number	0 608 841 228
Product Type	Handheld Nutrunner
Torque Range	11–56 Nm
Working Range	1–75 Nm*
Maximum Drive Speed	710 rpm
Tool Mount	3/8″ square
Supply	3~230 VAC
Frequency Range	0–250 Hz
Power	200 W
Measurement	Integrated measurement transducer
Indicator	Integrated LED
Tool Design	Right-angle handheld
Installation Length	Approx. 453 mm
Weight	Approx. 2.14–2.70 kg, depending on data reference
Country of Origin	Germany
Condition	Used

*Some Rexroth-related technical records state a broader system working range of 1–75 Nm, while the ESA056G-G model designation is specifically associated with an 11–56 Nm torque range. For purchasing and replacement purposes, the exact tool nameplate should take priority.



⚡ Operating Function

The ESA056G-G is intended for controlled tightening rather than general-purpose impact fastening. The integrated measurement transducer allows tightening torque to be monitored as part of the fastening process.

Its right-angle design is useful where access around machinery or assemblies is limited. The additional grip gives the operator better control when positioning the tool, particularly during repeated production fastening operations.

The 3/8-inch square drive provides compatibility with suitable sockets and accessories. The actual tightening program, torque limits, angle strategy, and fastening sequence depend on the connected Rexroth control architecture and application setup.



🛠️ Installation & Configuration

Before putting the nutrunner back into service:

1. Verify the complete material number: 0 608 841 228.
2. Confirm the ESA056G-G model marking.
3. Check the power supply and frequency requirements.
4. Inspect the power cable, connector, housing, and strain relief.
5. Check the 3/8-inch square drive for wear or mechanical damage.
6. Inspect the angle head and secondary handle.
7. Confirm that the torque transducer and tool electronics are recognized by the associated control system.
8. Perform a controlled torque verification before production use.
9. Compare the measured result with the required tightening specification.
10. Do not use the tool on safety-critical joints until its measurement accuracy has been confirmed.

Because this is a used precision fastening tool, functional testing is particularly important before returning it to a production line.



🔍 Maintenance Tips

Keep the tool clean and avoid excessive contamination around the angle head, drive socket, connectors, and ventilation areas.

The tightening transducer should be checked periodically against an appropriate torque calibration system. If measured torque begins to drift from the expected value, stop using the tool for critical fastening until it has been inspected or calibrated.

Also inspect the drive square, gears, bearings, cable, and handle regularly. Mechanical wear can affect fastening accuracy even when the electronic system appears to operate normally.



❓ Frequently Asked Questions

Q1: What is the Rexroth ESA056G-G used for?
It is a handheld industrial nutrunner designed for controlled and repeatable fastening applications.

Q2: What is the material number?
The material number is 0 608 841 228.

Q3: What is its torque range?
The ESA056G-G designation is associated with an 11–56 Nm torque range. Some product records also specify a broader system working range, so the tool nameplate should be checked for the exact configuration.

Q4: What is the maximum speed?
The listed maximum drive speed is 710 rpm.

Q5: What type of drive does it use?
The product data identifies a 3/8-inch square tool mount.

Q6: Does it have torque measurement?
Yes. The ESA056G-G is listed with an integrated measurement transducer.

Q7: Is the listed unit new?
No. The referenced listing identifies it as used.

Q8: Can it be used as a standalone electric wrench?
It should not be treated as an ordinary standalone consumer wrench. The complete Rexroth tool and control-system configuration should be checked before operation.

Q9: Is calibration important?
Yes. For production or safety-critical fastening, torque verification and calibration are important before putting a used tool into service.

Q10: Where was this model manufactured?
The available product information identifies Germany as the country of origin.



🔄 Recommended Rexroth Models

For customers maintaining Rexroth fastening and tightening systems, these related models and components may also be relevant:

1. Rexroth ESA013G Handheld Nutrunner
2. Rexroth ESA040G Handheld Nutrunner
3. Rexroth ESA056G Handheld Nutrunner
4. Rexroth ESA056G-G Handheld Nutrunner
5. Rexroth ESA067G Handheld Nutrunner
6. Rexroth ESA080G Handheld Nutrunner
7. Rexroth NXA Handheld Nutrunner Series
8. Rexroth CS351 Tightening System
9. Rexroth KE350 Tightening Controller
10. Rexroth Compact System CS351 Series



🏭 Application Summary

The Rexroth ESA056G-G is a specialized industrial nutrunner for controlled fastening work where torque consistency matters. Its integrated measurement system, right-angle configuration, 3/8-inch square drive, and 11–56 Nm torque designation make it suitable for repeatable assembly operations when paired with the appropriate Rexroth control and fastening setup.

For replacement purchases, the safest identification method is to match the complete model and material number: ESA056G-G / 0 608 841 228. The electrical rating, torque range, tool drive, transducer condition, and associated controller should all be verified before commissioning.
