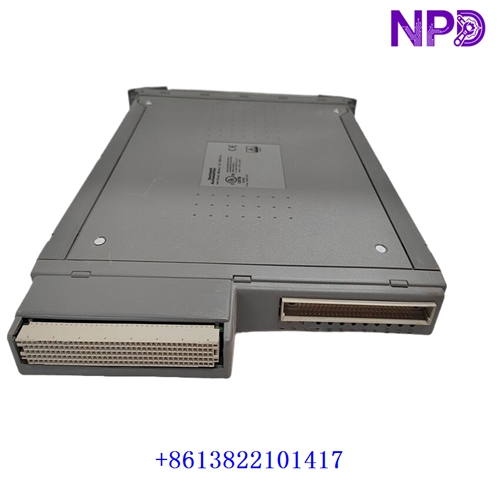

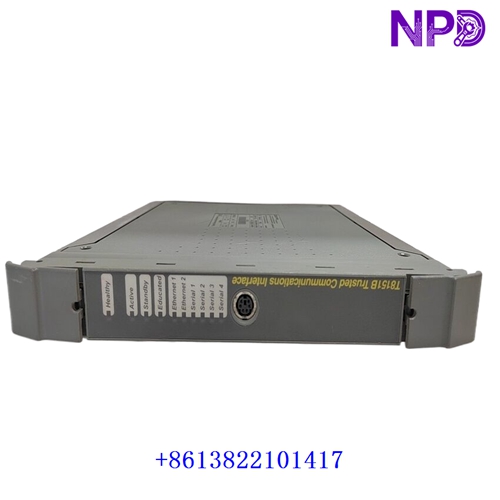

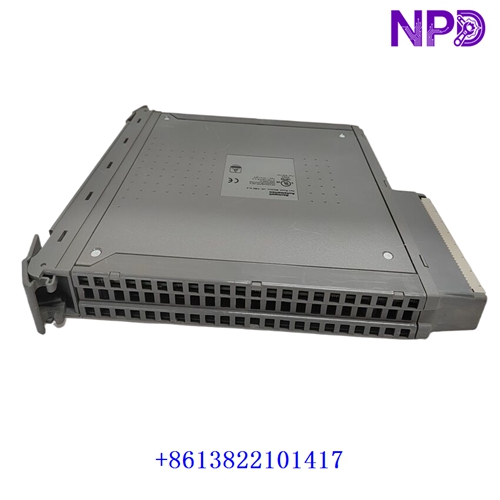

The Rockwell ICS Triplex Trusted communications interface module, bearing part number T8151B, is an advanced high-integrity networking and communication card designed specifically for fault-tolerant safety instrumented systems (SIS).
Manufactured by ICS Triplex (a brand of Rockwell Automation), this module acts as a critical communication bridge within the Trusted safety system architecture. It manages high-speed data exchanges, system diagnostics, and communication protocols between safety controllers, engineering workstations, and supervisory control networks in hazardous industries such as oil and gas, chemical processing, and power generation.
📊 Product Parameters & Technical Datasheet
• Brand: Rockwell ICS Triplex (Rockwell Automation)
• Model: T8151B
• Series: Trusted Safety Series
• Product Name: Communications Interface Module
• Country of Origin: United Kingdom / United States
• Product Status: Industrial Safety Hardware / Active & Replacement Part
• Dimensions: Standard Trusted chassis 3U slot form factor
• Weight: Approx. 1.3 kg
• Power Consumption: Low power draw powered via Trusted backplane bus rails
• Discontinuation Status: Supported safety product line with specialized industrial aftermarket availability
⚙️ Parameter Setting & Modification Methods
Configuring and modifying parameters on the T8151B module is executed using ICS Triplex Trusted toolset and safety programming software.
Engineers connect via secure Ethernet or serial communication links to assign network node addresses, configure communication baud rates, set up diagnostic reporting thresholds, and manage routing tables. All parameter modifications must adhere strictly to certified safety instrumented function (SIF) protocols and require proper administrative authorization and offline validation procedures.
🔄 Manual and Automatic Mode Switching
The module relies on advanced fault-tolerant automatic operations combined with managed supervisory controls.
In automatic mode, the processor architecture executes continuous triple modular redundant (TMR) communication handshaking, data packet routing, and self-diagnostic error checks autonomously without operator intervention. Manual resets, diagnostic testing, or firmware updates can be initiated through secure engineering software interfaces during scheduled maintenance windows, functional testing, or system commissioning.
❓ Frequently Asked Questions (Q&A)
Q1: What is the primary function of the T8151B module?
A1: It operates as a dedicated communications interface card designed to manage network data transfer and integration for Trusted safety systems.
Q2: How does the module connect to upper-level control networks?
A2: It provides secure communication ports (such as Ethernet and serial interfaces) to link safety controllers with SCADA, DCS, and engineering workstations.
Q3: Can this communication module be hot-swapped in an active safety rack?
A3: Yes, Trusted system hardware supports hot-swapping under specific safety procedures and system redundancy guidelines.
