🔧 Product Overview

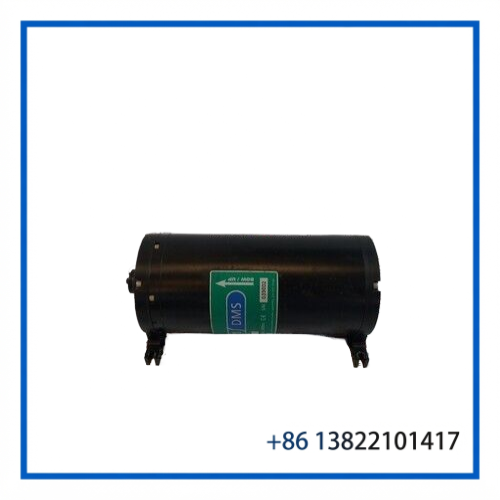

The TSS DMS 2-10 is a Dynamic Motion Sensor from the TSS DMS series, designed for marine motion measurement applications. The listed unit carries a 3000 m depth rating and has an approximate weight of 4.09 kg. The current listing identifies it as a TSS Dynamic Motion Sensor, model DMS, MPN DMS 2-10.
The TSS DMS series was developed for measuring vessel motion when a stationary reference is not available. Typical applications include supplying motion data to dynamic positioning systems and motion compensation equipment. The series can provide measurements such as heave, roll, pitch, and acceleration depending on the system configuration.
The “10” designation in the DMS series refers to an attitude measurement accuracy specification of approximately ±0.10° for the DMS Series-10 configuration in the TSS documentation.
📋 Technical Specifications
| Parameter | Details |
|---|---|
| Brand | TSS |
| Model | DMS 2-10 |
| Product Type | Dynamic Motion Sensor |
| Series | TSS DMS Series |
| Depth Rating | 3000 m |
| Attitude Accuracy Class | Series-10 / ±0.10° |
| Approx. Weight | 4.090 kg |
| Application | Marine motion measurement |
| Typical System Use | Vessel motion monitoring / motion compensation |
| Country of Origin | Unknown / verify from nameplate |
| Condition | Used |
The 3000 m depth rating, 4.090 kg weight, TSS brand, and DMS 2-10 MPN are confirmed by the current product listing.
⚙️ Key Features
- 3000 m rated-depth configuration
- Compact dynamic motion sensing unit
- Designed for marine and offshore motion measurement
- DMS Series-10 attitude accuracy configuration
- Suitable for applications where no fixed motion reference is available
- Supports vessel motion measurement for downstream navigation or control systems
- Designed for horizontal or vertical mounting within the DMS series architecture
- Single-cable system connection is used within the DMS series
- Low-power sensor architecture
- Digital communication interface within the DMS system
TSS documentation describes the DMS series as a depth-rated sensor with horizontal or vertical mounting options and a single-cable connection.
🌊 Marine Motion Measurement
The DMS sensor is more than a conventional proximity or movement detector. Its purpose is to measure the motion and attitude of a vessel so that external equipment can compensate for vessel movement.
Depending on the system configuration, DMS-series measurements can include:
- Heave
- Roll
- Pitch
- Horizontal acceleration
- Vertical acceleration
- Motion-related digital data
The DMS series documentation describes applications including multibeam sounder motion compensation and supplying motion measurements to dynamic positioning systems.
📡 Communication & System Integration
The DMS series supports digital communication with external receiving equipment. TSS documentation specifies selectable RS232C and RS422 interfaces and configurable digital output formats.
The documented default configuration uses the TSS1 data format with RS232 communication at 9600 baud, although the actual communication configuration should be checked on the installed sensor before integration.
This makes the sensor suitable for integration with marine navigation, positioning, survey, and motion-compensation equipment where compatible communication interfaces are available.
🏭 Typical Applications
The TSS DMS 2-10 can be used in demanding marine environments where vessel movement needs to be measured and supplied to another control or navigation system.
Typical applications include:
- Dynamic positioning systems
- Offshore vessel motion monitoring
- Marine navigation systems
- Multibeam echo sounder motion compensation
- Hydrographic survey equipment
- Vessel attitude measurement
- Offshore construction and positioning
- Marine research platforms
- Motion compensation systems
For a replacement installation, the receiving equipment and communication protocol should be checked before connecting the sensor.
❓ Frequently Asked Questions
Q: What does 3000M mean on this sensor?
A: It indicates a 3000 m depth rating, which is a key specification of the listed DMS 2-10 configuration.
Q: What does “DMS 2-10” identify?
A: The product is identified as a TSS DMS 2-10 Dynamic Motion Sensor. Within the DMS series documentation, the “10” designation corresponds to the Series-10 attitude accuracy class, specified at approximately ±0.10°.
Q: What type of motion does the DMS system measure?
A: The DMS series is designed for vessel motion and attitude measurement. Depending on configuration, available measurements include heave, roll, pitch, and acceleration.
Q: Is this sensor designed for marine applications?
A: Yes. TSS documentation describes the DMS as a vessel motion sensor, with applications including dynamic positioning and multibeam sounder motion compensation.
Q: What is the weight of this unit?
A: The current listing specifies approximately 4.090 kg.
Q: What communication interfaces are associated with the DMS series?
A: TSS documentation specifies selectable RS232C and RS422 digital interfaces. The exact interface configuration of an individual used unit should be verified before installation.
🔎 Identification & Ordering Notes
When purchasing a replacement, compare the markings on the physical sensor with the following identification:
TSS DMS 2-10
Also verify:
- DMS model and suffix
- Depth rating
- Serial number
- Connector and cable arrangement
- Communication interface
- Software/configuration version where applicable
- Mounting arrangement
- Existing receiving/control equipment
Because this is a specialized marine sensor, matching the model number alone may not be sufficient for system replacement.
📦 Related TSS DMS References
The following are related DMS-series references or configurations rather than guaranteed direct replacements:
- TSS DMS Series-03
- TSS DMS Series-05
- TSS DMS Series-10
- TSS DMS Series-25
- TSS DMS 2 Series
- TSS DMS RP30
- TSS DMS Dynamic Motion Sensor
- TSS Remote Repeater
- TSS DMS Sensor Cable
- TSS DMS PC/Configuration Software
The DMS Series-03, -05, -10 and -25 versions represent different attitude-accuracy classes, so they should not automatically be treated as interchangeable.
🛠️ Maintenance & Installation Notes
This is a precision motion-sensing instrument rather than a general-purpose industrial sensor. Avoid opening the sensor housing unless authorized service procedures permit it. TSS documentation specifically warns that opening the sensor without authorization can affect warranty/service status.
For a used unit, inspect the housing, connector, cable interface, mounting surface, and depth-rating markings before installation.
A practical functional check should include:
- Power-up verification
- Communication check
- Roll/pitch response verification
- Heave response verification where applicable
- Digital data output verification
- Receiving-system communication test
The DMS documentation also provides functional-test procedures using a PC display and motion data to verify basic sensor operation.
Condition Note: The supplied listing identifies this particular unit as Used. Buyers should verify the physical condition, serial number, connectors, accessories, and calibration/service status before ordering.
