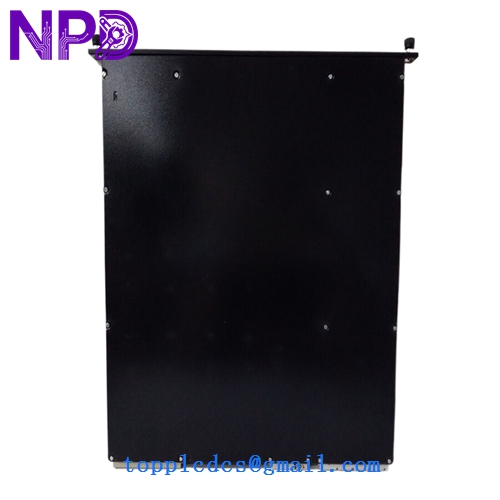

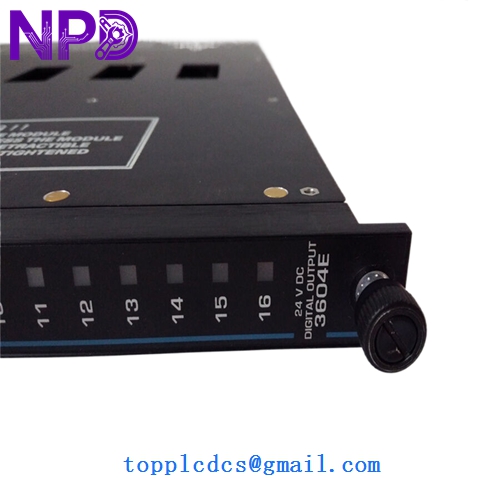

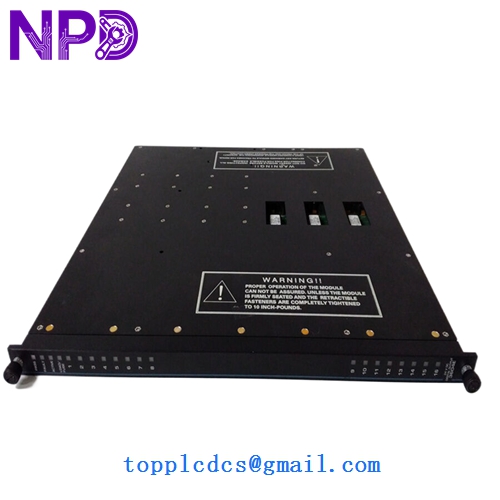

3604E Triconex Schneider Electric | 16-Channel DO Module

Description

• Model: 3604E
• Brand: Triconex (Schneider Electric)
• Series: Tricon v9 / v10 / v11 Systems
• Core Function: High-reliability safety digital outputs for ESD and F&G systems.
• Product Type: Digital Output Module (TMR)
• Key Specs: 16 Channels | 24 Vdc | Commoned Return | SIL 3 Rated

• Output Type: 24 Vdc, Commoned
• Number of Channels: 16, non-isolated
• Architecture: TMR (Triple Modular Redundant) with integrated voting
• Output Current: Max 2.0 A per channel (total module current limits apply)
• Voltage Range: 22–30 Vdc
• Safety Rating: SIL 3 (IEC 61508)
• Diagnostic Coverage: >99% (includes output load/field circuit testing)
• On-State Voltage Drop: <1.5 Vdc @ 2.0 A
• Off-State Leakage: <4.0 mA
• Hot-Swap Capability: Yes (with dedicated hot-spare slot)

Application Scenarios & Pain Points

The 3604E is a cornerstone of the Triconex safety platform. Unlike standard PLC outputs, the 3604E utilizes a “Quad” output circuitry design within its TMR architecture to ensure that a single component failure cannot cause a “Fail-to-Danger” scenario or a nuisance trip. In refineries and offshore platforms, this module typically controls final control elements like Emergency Shutdown Valves (ESV) or Deluge Valves.

Typical Application Scenarios:

1. Emergency Shutdown Systems (ESD) Driving solenoids for isolation valves in high-pressure oil and gas pipelines where failure to close is not an option.
2. Fire and Gas Systems (F&G) Activating suppression systems and audible/visual alarms across a facility when hazardous gas is detected.
3. Burner Management Systems (BMS) Managing fuel gas shut-off valves for utility boilers and process heaters to prevent explosions.

Engineering Case Study: The “Glitch” That Didn’t Happen

Background: An LNG terminal in Australia was experiencing intermittent “Output Voter Fault” alarms on one of their 3604E modules. The module was still functioning, but the internal diagnostics flagged that one of the three internal legs had failed.

The Problem: In a standard system, a voter fault might mean a shutdown. However, because the 3604E is TMR, the other two legs continued to provide protection. The plant needed a replacement quickly to restore the “Fault Tolerant” status before the second leg potentially degraded.

The Solution: We provided a replacement 3604E with matching firmware to their existing Tricon v10.4 system.

Result: The technician inserted the new module into the adjacent “Hot Spare” slot. The Tricon automatically synced the application logic to the new module, and once the “Active” light turned green, they pulled the faulty unit. The process remained live throughout the entire 10-minute procedure, avoiding a $500,000 “warm restart” cost.
