Description
- Model: 07DC91C (Full P/N: GJR5251400R0202)
- Brand: ABB (Germany)
- Series: Advant Controller 31 (AC31 / 90 Series)
- Core Function: Combined digital input and output module for decentralized automation.
- Product Type: Digital I/O Module (Combo)
- Key Specs: 16 configurable I/O | 24V DC | CS31 System Bus Protocol
- Supply Voltage: 24V DC (19.2 V to 30 V)
- Number of Inputs: 8 Digital Inputs (24V DC)
- Number of Outputs: 8 Digital Outputs (Transistor, 24V DC / 0.5A)
- System Bus: CS31 (via twisted pair)
- Address Setting: Via DIP switches on the front/side
- Isolation: Galvanic isolation between bus and I/O
- Diagnostics: LED status for Power, Run, Error, and individual I/O state
- Power Dissipation: Max 5 W
- Connection: Screw-type terminal blocks
- Mounting: DIN Rail (35mm)

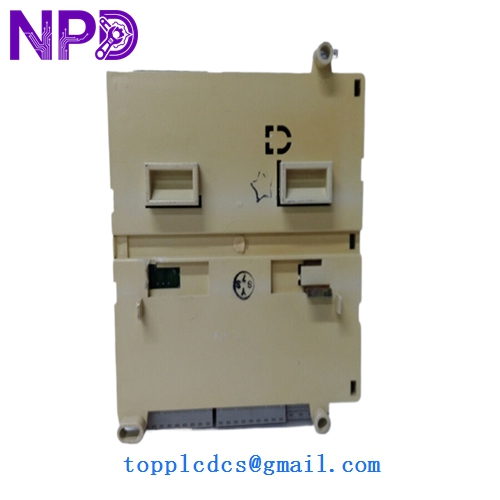

ABB 07DC91C GJR5251400R0202
Application Scenarios & Pain Points
The 07DC91C is a workhorse in older Advant Controller 31 systems. Since the AC31 series has moved toward the “Classic” and “Limited” life cycle phases, finding these modules through official channels often involves long lead times or “end-of-life” surcharges. For plants running on AC31 architecture, a single failed I/O module can shut down a localized process, like a conveyor belt or a chemical dosing pump, because the CS31 bus detects a station failure.
Typical Application Scenarios:
- Factory Automation (Legacy) Used in automotive assembly lines or packaging plants that were built in the late 90s/early 2000s and still utilize the AC31 40-50 series processors.
- Water & Wastewater Treatment Commonly found in remote telemetry units (RTUs) for lift stations where the CS31 bus allows I/O to be placed hundreds of meters away from the main PLC.
- Building Management Systems (BMS) Integrated into HVAC and lighting control for large commercial complexes due to its distributed nature.
Engineering Case Study: The “Zombi” Station
Background: A textile mill in Southeast Asia used 07DC91C modules to control their dyeing machines. One machine began having intermittent “Bus Fail” errors, which caused the entire dyeing cycle to abort, wasting thousands of dollars in chemicals and fabric.
The Problem: The engineer suspected the 07DC91C module, but because the error was intermittent, they weren’t sure. They tried to find a replacement locally, but were told the part was obsolete.
The Solution: We supplied a tested GJR5251400R0202 module. Before shipping, we performed a 24-hour “Heat Test” to ensure the transistor outputs wouldn’t fail under continuous load.
Result: The customer swapped the module, set the DIP switches to match the old unit, and the machine has been running 24/7 for the last six months without a single bus drop.

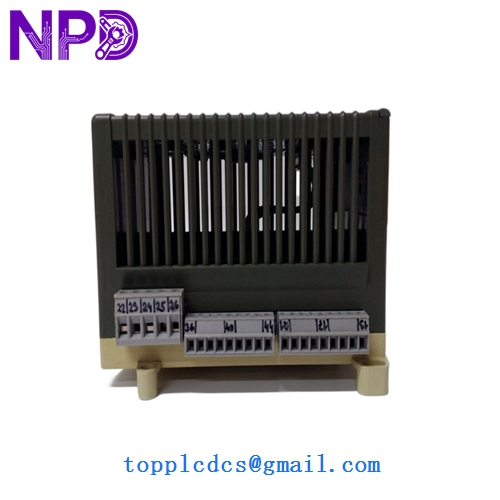

ABB 07DC91C GJR5251400R0202
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Change Impact |
|---|---|---|---|---|
| 07DC91C | 07DC92 | ⚠️ Software | Different I/O density | Requires minor logic change |
| 07DC91C | AC500 / S500 | ❌ Hardware | Entirely new platform | Must replace CPU and I/O |
| 07DC91C | 07DC91 (Older Rev) | ✅ Direct | GJR5251400R0101 vs R0202 | Drop-in (check firmware) |
ABB 07DC91C GJR5251400R0202
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to 07DC91C | Quick Check | Action |
|---|---|---|---|---|
| “Bus Fail” LED on CPU | Station Address mismatch | ✅ High | Check DIP switches on 07DC91C. | Match switches to the I/O list. |
| Outputs don’t fire | No 24V on L+ / M | ⚠️ Medium | Measure voltage at terminals 1 and 2. | Restore field power supply. |
| Input LED lights, PLC sees 0 | CS31 Bus corruption | ⚠️ Medium | Check shielding on the bus cable. | Ensure only one end is grounded. |
| ERR LED (Red) | Internal hardware fault | ✅ High | Power cycle the module. | Replace if ERR persists. |
Engineer’s Pro-Tip: “If you’re replacing an 07DC91C, the most common mistake is forgetting the CS31 bus termination. If this module is at the physical end of your cable run, you need that 120Ω resistor. Without it, you’ll get ‘ghost’ errors across the whole network. Also, take a photo of the DIP switches before you pull the old one out—it’ll save you an hour of hunting through old printouts for the station address!”
Need the wiring pinout for the 24V supply? I have the AC31 hardware manual digitized—just let me know.
