Description
Technical Parameters
- Part Number: GJR5251200R0101
- Model: 07EA90-SI
- Manufacturer: ABB
- Series: Advant Controller 31 (AC31 / Sigmar-S)
- Input Channels: 8 Digital Inputs (24 VDC)
- Output Channels: 8 Digital Outputs (Transistor, 24 VDC, 0.5A)
- Internal Current Consumption: Max 50 mA from the internal bus
- Isolation: Galvanic isolation between field side and logic side
Product Description
The ABB 07EA90-SI (GJR5251200R0101) is a compact, decentralized digital input/output module belonging to the Advant Controller 31 (AC31) family. It acts as a remote peripheral unit that interfaces field sensors and actuators with the central processing unit via a dedicated system bus.
This specific module is designed for “S-Interface” (SI) communication, making it highly suitable for distributed architectures where wiring distances need to be minimized. It features integrated LED diagnostics for each channel, allowing for rapid troubleshooting of field-level signals. The robust housing and reliable electrical design ensure it remains a staple in legacy industrial automation environments.

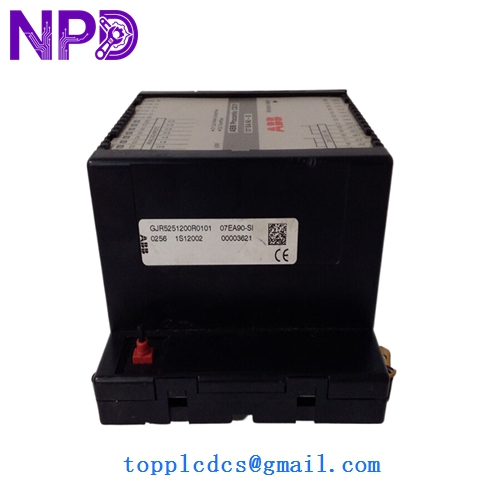

ABB 07EA90-SI GJR5251200R0101

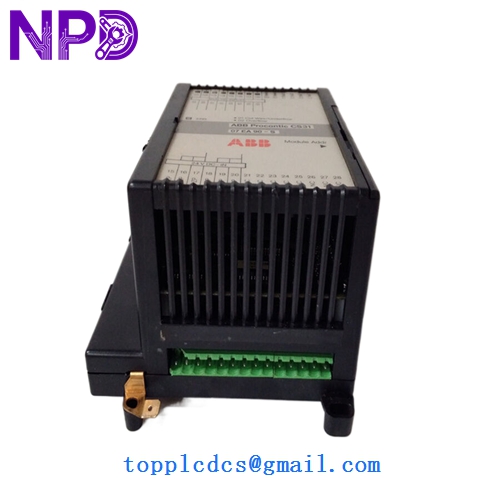

ABB 07EA90-SI GJR5251200R0101
ABB 07EA90-SI GJR5251200R0101
Application Areas
- Distributed Automation: Ideal for mounting in remote junction boxes to collect sensor data from conveyor systems or assembly lines.
- Legacy System Support: Replacement and expansion of existing AC31 and Sigmar-S control systems.
- Machine Control: Direct control of small solenoids, contactors, and signaling lamps.
- Process Interlocking: Providing status feedback for valve positions and motor starters to the central PLC.
Product Specifications
- Weight: 0.25 kg
- Dimensions: 120 mm x 60 mm x 85 mm
- Mounting: DIN Rail (35 mm)
- Connection Type: Removable terminal blocks (Screw type)
- Country of Origin: Germany
Operating Precautions
- S-Bus Addressing: Before commissioning, verify the module’s station address is correctly set on the hardware switches to avoid bus conflicts with other remote I/O.
- Output Loading: Do not exceed the 0.5A rating per transistor output; for higher loads or inductive loads without internal suppression, use an external interposing relay or flyback diode.
- Power Sequencing: Ensure the 24 VDC field power and the system bus power are synchronized to prevent “Module Missing” errors during the system boot sequence.
- Wiring Separation: Route the low-voltage communication bus wires away from high-power AC motor cables to prevent electromagnetic interference from corrupting data packets.
