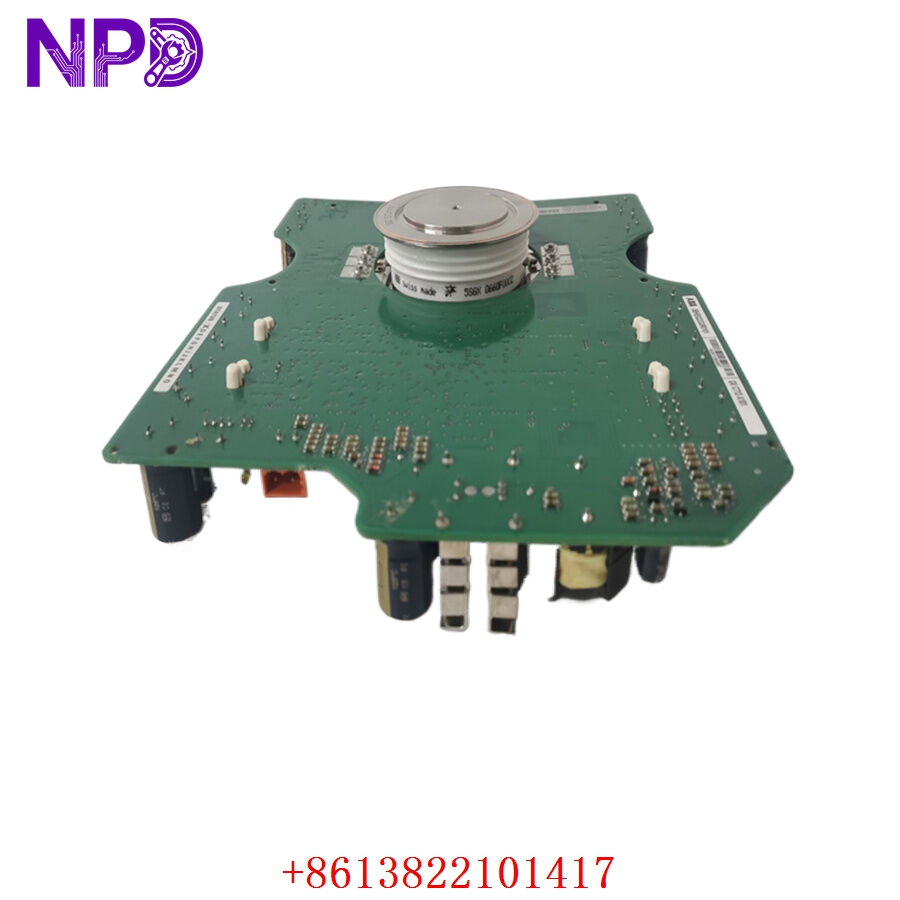

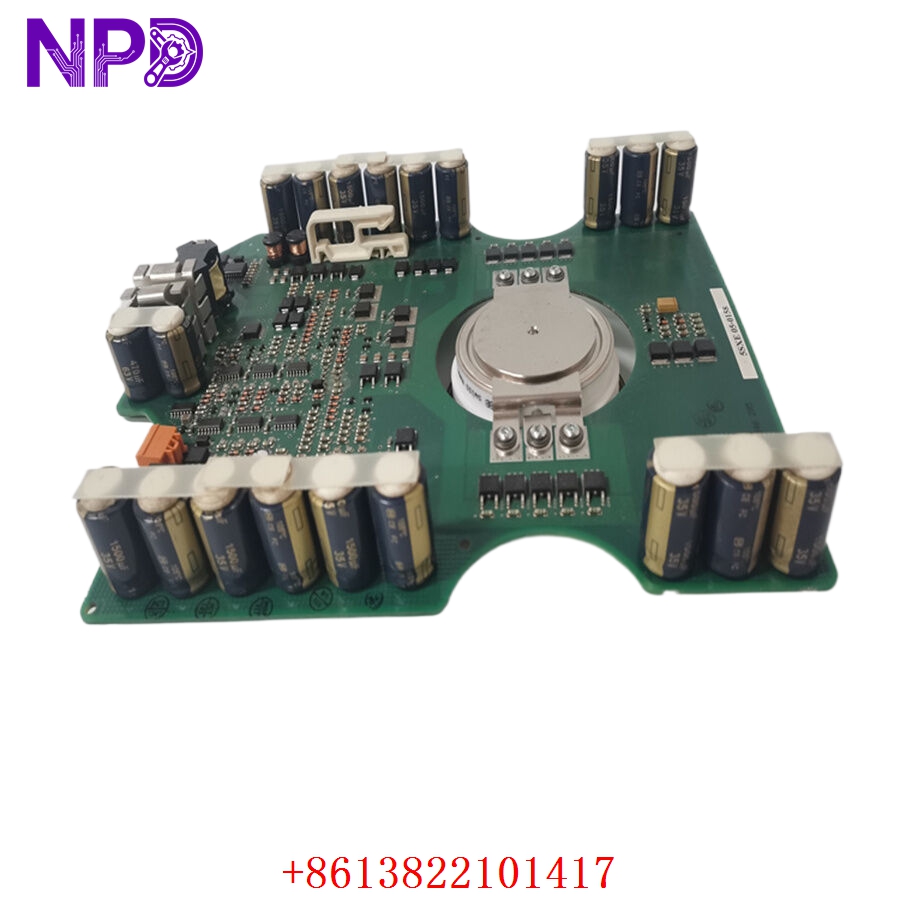

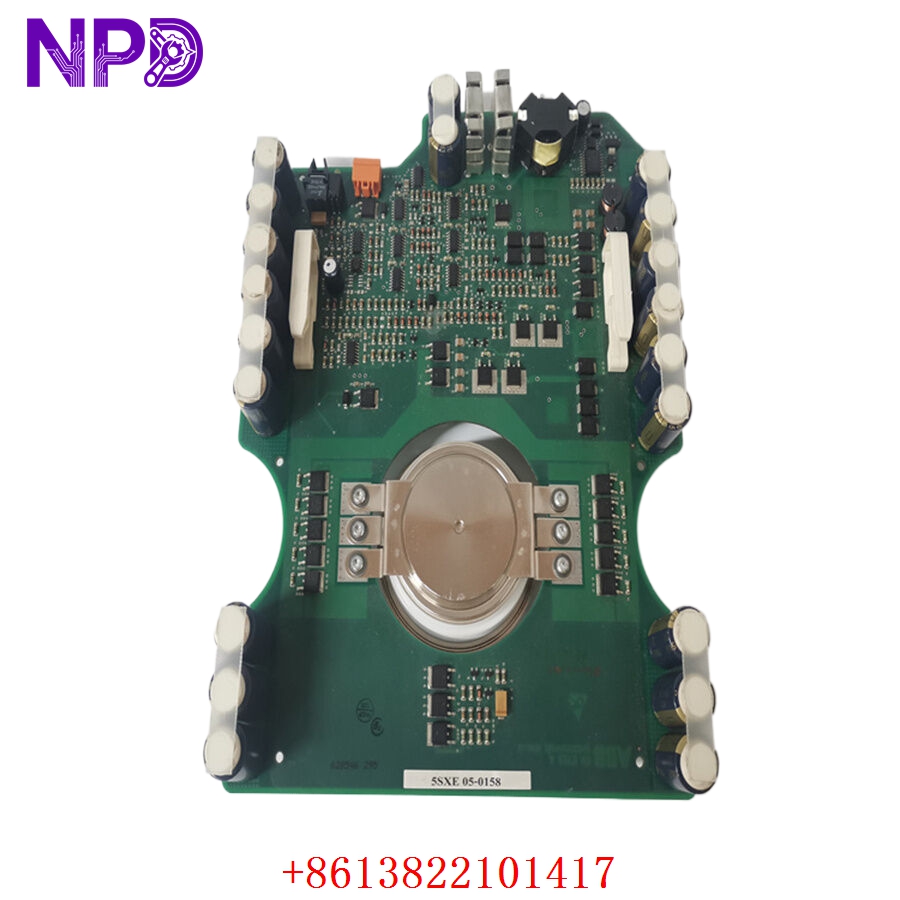

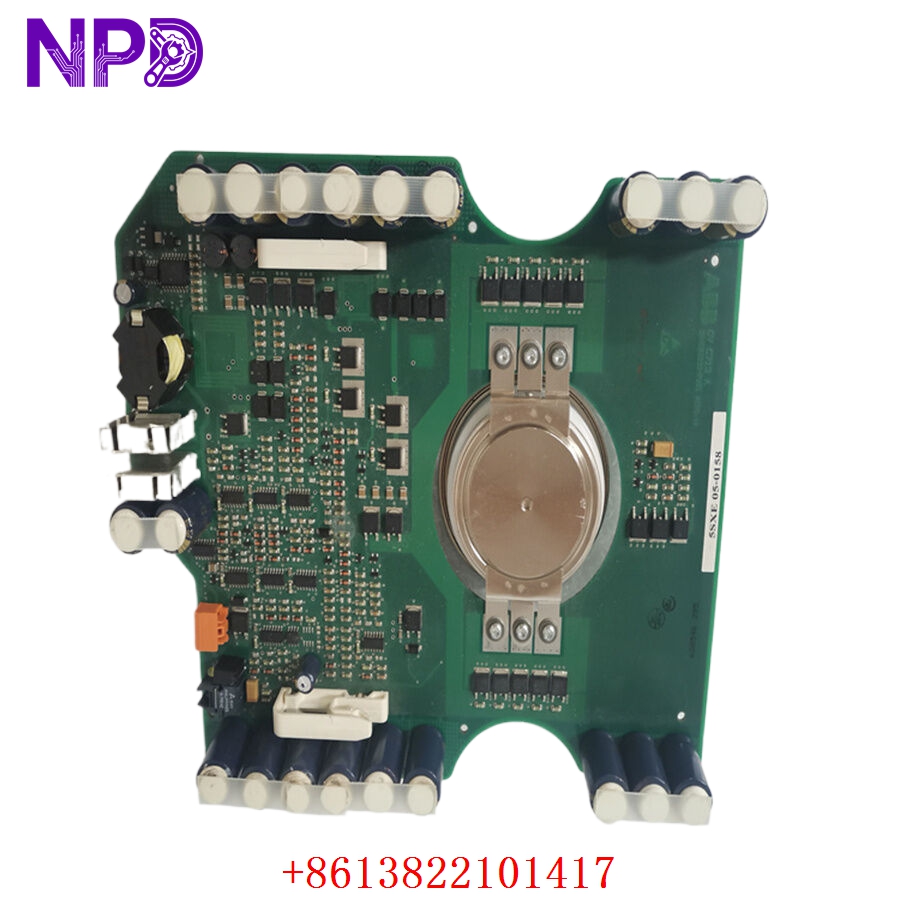

Description
- Model: 5SHX 0660F0002
- Brand: ABB (Power Grids/Semiconductors)
- Series: 5SHX Phase Control Thyristor (PCT)
- Core Function: High-power switching for medium to high-voltage rectification and motor control
- Product Type: Disc-type Phase Control Thyristor (PCT)
- Key Specs: VDRM / VRRM up to 6,000 V, ITAVM ~ 660 A
- Repetitive Peak Off-State Voltage (VDRM): 6,000 V
- Average On-State Current (ITAVM): 660 A (at TC = 85°C)
- Surge On-State Current (ITSM): Approximately 8,000–9,000 A (10 ms half-sine wave)
- Package Style: Disc-type (Hockey Puck) with ceramic housing
- Thermal Resistance: RthJC (Junction to Case) optimized for high-power cooling
- Gate Trigger Current (IGT): < 300 mA
- Application: DC motor drives, high-voltage rectifiers, soft starters, and UPS systems
Application Scenarios & Engineering Pain Points
The 5SHX 0660F0002 is a high-reliability component designed for heavy-duty power conversion. The primary engineering challenge with disc-type thyristors is not the component itself, but the mounting pressure. If the thermal grease application is uneven or the clamping pressure is outside the manufacturer’s specified range (typically expressed in kN), the device will fail prematurely due to thermal hotspots.
Typical Application Scenarios:
- Power Transmission – HVDC Systems Used in bridge rectifiers where high blocking voltage and surge capacity are mandatory.
- Heavy Industry – DC Motor Drives Controlled rectification for large-scale steel mill motor drives.
- Renewable Energy – Wind Turbine Converters Soft-starting and power factor correction in large-scale turbine auxiliary systems.
Case Study: Steel Mill Rectifier Failure A major steel manufacturer experienced recurrent failures in a DC drive cabinet. Upon examination, the technician discovered that the existing thyristors were being clamped by an aging spring-loaded fixture that had lost its calibrated tension. By replacing the 5SHX 0660F0002 modules and installing a new, precisely calibrated hydraulic/mechanical clamp (as per ABB’s mounting guide), the “mystery” failures ceased, extending the Mean Time Between Failures (MTBF) from 6 months to over 3 years.
Troubleshooting & Handling Quick Reference
Semiconductors are highly sensitive to environmental factors. If you are replacing a unit, verify these parameters first.
| Failure Symptom | Possible Cause | Quick Check Method | Recommended Action |
|---|---|---|---|
| Short Circuit | Voltage Spike / Over-current | Measure forward/reverse blocking | Replace thyristor |
| Failed to Trigger | Gate Circuit Fault | Check VGT and IGT signals | Inspect gate lead/trigger card |
| Thermal Trip | Mounting Pressure Loss | Check heatsink contact surface | Re-apply grease; recalibrate clamp |
| High Leakage Current | Junction Degradation | Measure IDRM / IRRM | Verify cooling system flow |
Engineer’s Note: ❗ Crucial Advice: Never reuse old thermal grease. When replacing this thyristor, clean the heatsink surfaces with a non-residue solvent (like Isopropyl Alcohol) until they are mirror-bright. Apply a thin, uniform layer of high-performance thermal compound using a roller or stencil. Use a calibrated torque wrench to reach the exact mounting pressure specified in the ABB data sheet—too loose creates heat, too tight cracks the ceramic wafer.
