ABB 5SHY4045L0006 3BHB030310R0001 IGCT Power Semiconductor Module

Description

• Model (GCT): 5SHY4045L0006
• Material / P/N Code: 3BHB030310R0001
• Brand: ABB (Asea Brown Boveri / Switzerland)
• Series: Integrated Gate-Commutated Thyristor (IGCT) Application Kit
• Core Function: Acts as a high-power solid-state electronic switch inside high-power converters and medium-voltage (MV) motor drives, managing multi-megawatt power inversion phases.
• Condition: Brand New Surplus (Original factory-sealed vacuum packaging with anti-static and humidity indicators)
• Product Type: Asymmetric IGCT Module with Integrated Gate Drive Unit
• Key Specs: Peak Repetitive Off-State Voltage up to 4500 V | Nominal Turn-Off Current up to 4000 A | Embedded optical fiber gate trigger interface

• Max. Repetitive Off-State Voltage (V_{DRM}): 4500 V
• Max. Turn-Off Current (I_{TGQM}): 4000 A
• Nominal DC-Link Voltage: 2800 V DC (Typical operational ceiling for continuous power conversion profiles)
• Gate Control Logic Input: Fiber-optic link (prevents electromagnetic interference from disturbing gate command signaling)
• Internal Structural Design: Co-axial low-inductance gate housing integrated directly with an asymmetric Silicon wafer disk structure.
• Gate Driver Operating Voltage: 28 V DC to 30 V DC (provided via separate rugged backplane power connections)
• Cooling Requirement: Double-sided liquid or high-mass force-air clamp cooling (requires correct force application profile of 90 kN\pm10\%)
• Storage Environment: Sealed dry nitrogen or vacuum-tight barrier bag to protect the specialized gate connection arrays from copper oxidation.

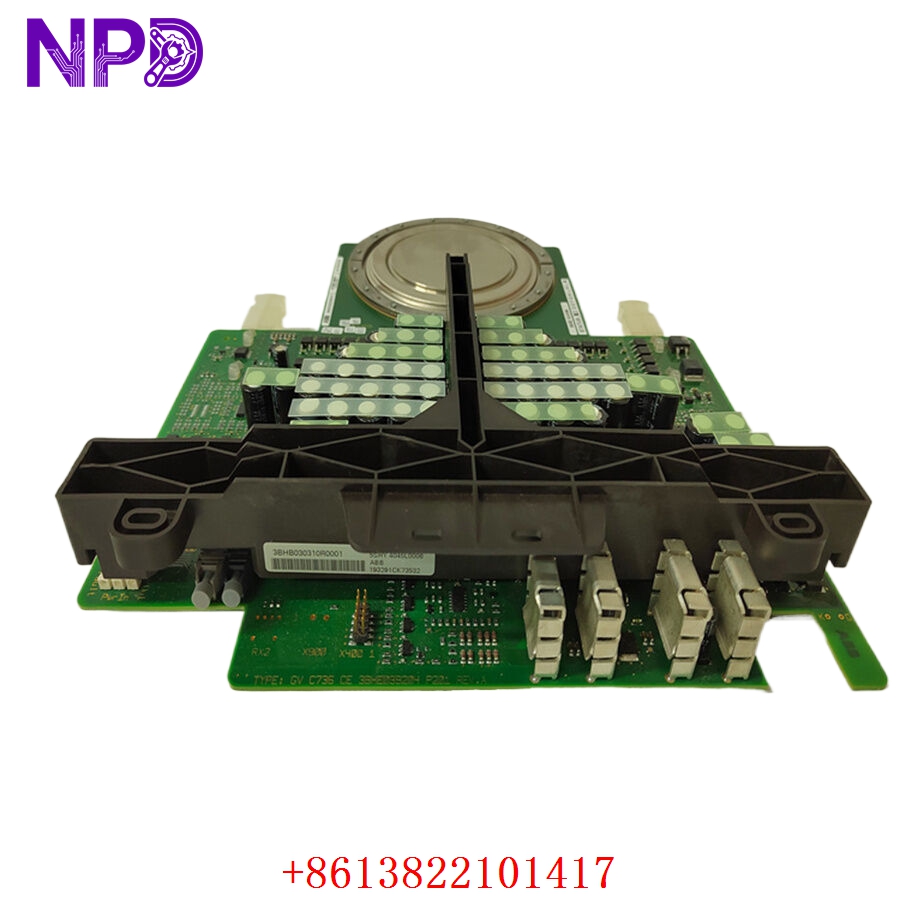

ABB 5SHY4045L0006 3BHB030310R0001

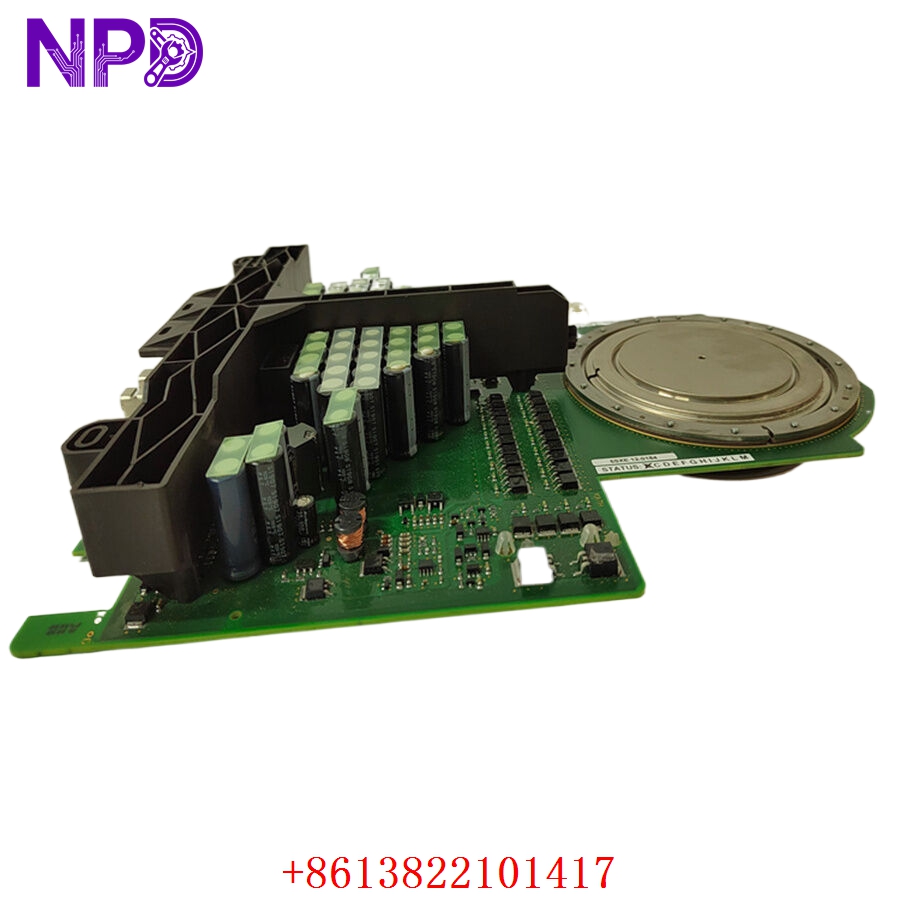

ABB 5SHY4045L0006 3BHB030310R0001

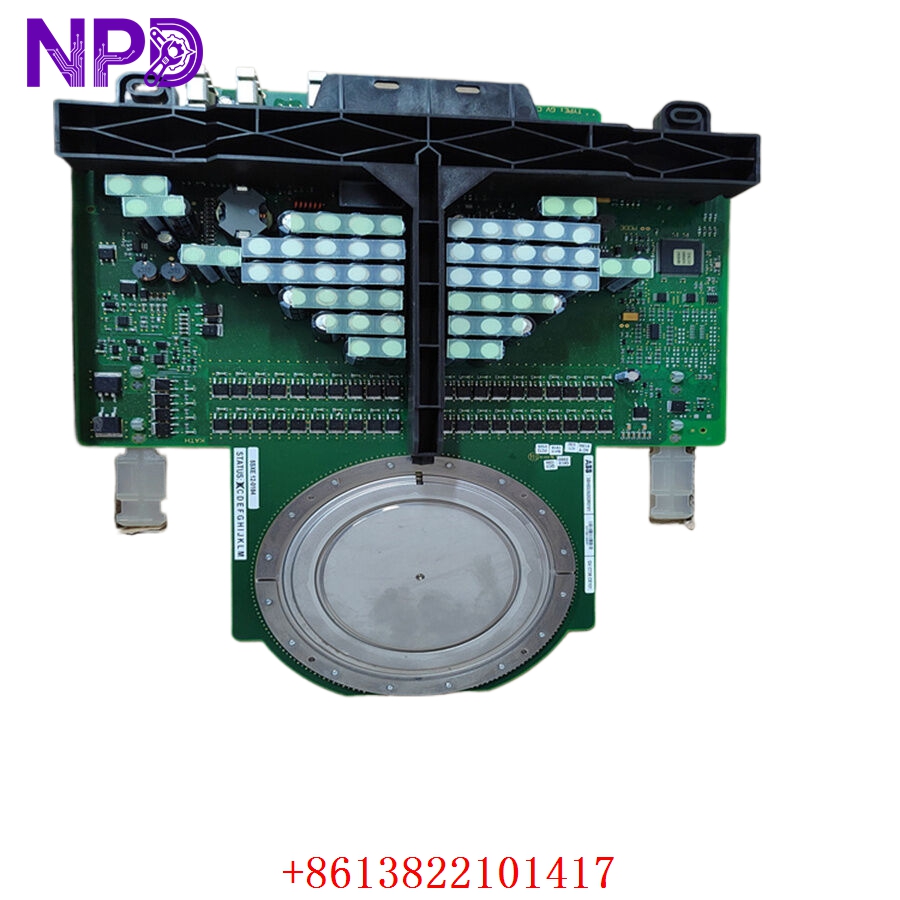

ABB 5SHY4045L0006 3BHB030310R0001

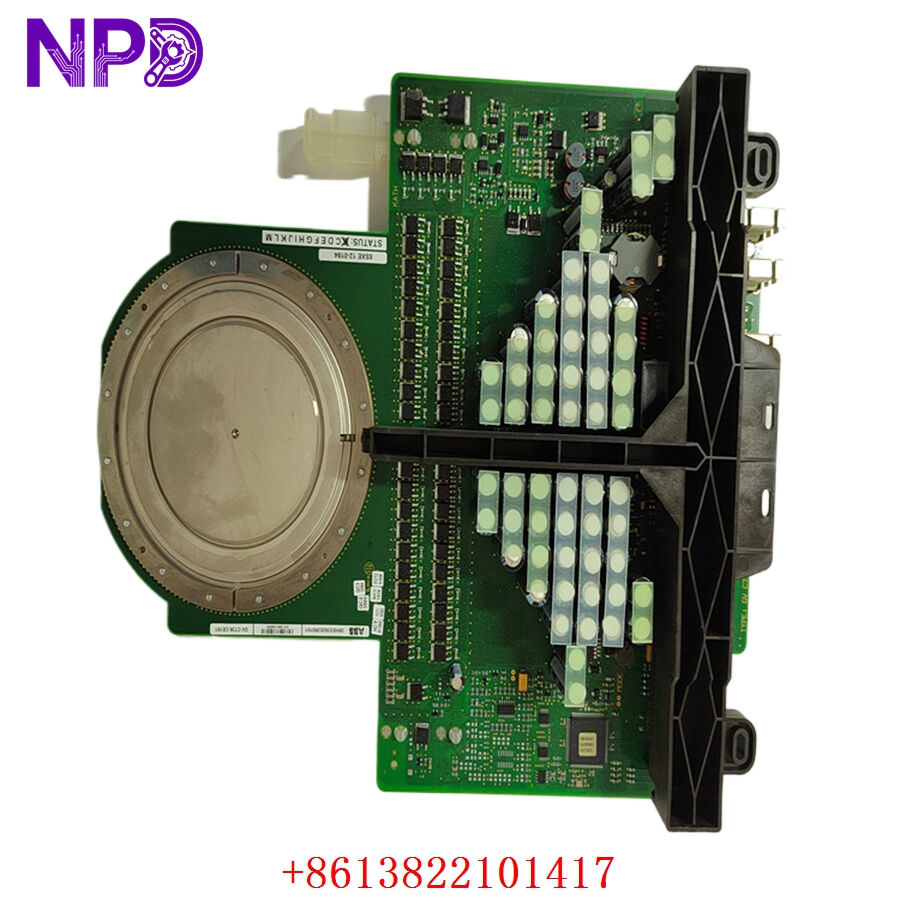

ABB 5SHY4045L0006 3BHB030310R0001

Application Scenarios & Engineering Pain Points

The 5SHY4045L0006 / 3BHB030310R0001 module handles extremely high power loads. Installed in medium-voltage variable speed drives (such as the ABB ACS5000 or ACS6000), it switches thousands of amperes at thousands of volts multiple times per second to control massive industrial electric motors.

The primary engineering failure point with IGCTs is gate driver fatigue or thermal-cycling breakdown caused by uneven clamping pressure. Because the wafer disk handles enormous current densities, any microscopic gap in the thermal interface compound or a drop in physical stack pressure will cause immediate localized overheating (hot-spotting). This destroys the internal silicon layers. When an IGCT shorts out, it can cause an explosive over-current fault that shuts down an entire processing line, costing thousands of dollars per minute in lost output. Securing a factory-sealed replacement unit is vital for safely restoring operations without risking adjacent phase components.

Typical Field Deployments:

1. Metal Rolling Mills – Main Main Drive Phase Banks

   Manages heavy dynamic torque loops on high-horsepower motors that run steel slab extrusion tables and reversing rolling mills.

2. Marine Propulsion – Variable Speed Vessel Drives

   Provides high-efficiency power inversion on liquid-cooled propulsion systems for large cargo vessels and offshore drilling platforms.

3. Mining Operations – Massive Conveyor and Grind Mill Drives

   Powers high-inertia SAG (Semi-Autogenous Grinding) mill drives that require high starting torque and continuous high-power delivery under fluctuating mechanical loads.

Case Study: The Ruptured Phase Module at a Copper Mine

• The Setup: A copper concentration plant in South America used an ABB ACS6000 multi-drive system to run its primary SAG grinding mill. The internal phase modules relied on pairs of 5SHY4045L0006 IGCT switches.
• The Crisis: During a routine production spike, a cooling pump on the main drive panel experienced a momentary flow drop. While the automated systems caught the temperature spike, the thermal stress caused an internal gate power trace to crack on Phase-A’s lower IGCT. The drive faulted on “Overcurrent Ground Loop” and locked down the mill. The plant ground to a halt, trapping tons of unprocessed ore in the mill drum. The site faced structural component failure risks if they could not restart the equipment within 36 hours.
• The Fix: The logistics team contacted our high-power components repository. We verified an original, factory-sealed 3BHB030310R0001 IGCT unit in our inventory. We ran a fiber-optic loop logic test on the integrated driver unit and arranged emergency air express dispatch.
• The Outcome: The unit arrived on-site 26 hours later. The drive specialist used a calibrated hydraulic ram to open the power stack, swapped the damaged IGCT module while checking the thermal contact surfaces, applied exactly 90 kN of clamping force, and connected the fiber-optic lines. On power-up, the gate diagnostics cleared completely, allowing the mine to safely restart the grinding mill and clear the processing bottleneck before structural setting occurred.

Standard Operating Procedure (SOP) Quality Transparency

Because high-power medium-voltage infrastructure leaves no margin for error, our laboratory processes every 5SHY4045L0006 module through a strict five-step verification protocol prior to export confirmation:

[Visual Housing & Gate Audit] ➔ [Fiber-Optic Signal Diagnostic] ➔ [Driver Current Draw Bench Run] ➔ [Blocking Voltage Leakage Test] ➔ [Vacuum Nitrogen Re-Sealing]

1. Visual Housing and Gate Audit

• Surface Mapping: We examine the main ceramic insulator housing and the outer nickel-plated copper contact surfaces under high magnification to verify zero pitting, oxidation, scratches, or manufacturing deformities.
• Authenticity Audit: Component stamps, laser-etched serial tracks, and QR tags are cross-checked against ABB factory master manifests to ensure complete structural authenticity.

2. Fiber-Optic Signal Diagnostic

• Optical Link Verification: We plug standard fiber-optic links into the gate driver assembly ports. Using an optical wave-pattern analyzer, we verify that the light-to-digital signal decoder converts incoming pulse commands with zero timing delay or light attenuation.

3. Driver Current Draw Bench Run

• Power Supply Stabilization: We supply the onboard gate driver board with a stable 28 V DC power line. We monitor the idle current draw to ensure it matches factory specifications, validating that the internal gate power capacitors and drive transistors are completely healthy.

4. High-Voltage Blocking Leakage Test

• Voltage Integrity Check: We apply a controlled high-voltage charge across the anode and cathode plates up to the nominal operational limits. We confirm that the leakage current remains well within safe micro-ampere ranges, validating the integrity of the internal silicon structures.

5. Vacuum Nitrogen Re-Sealing and Packing

• Oxidation Defense: The verified module is packed with fresh desiccant bags and specialized humidity tracking cards, then vacuum-sealed inside a heavy-duty electrostatic barrier pouch to protect the copper components during international shipping.
• Shock Protection: Housed inside custom-molded, high-density foam structures inside a reinforced wooden crate or double-wall heavy carton to prevent any physical shock during transport.

Technical Pitfall Mitigation Guide

Replacing a high-power IGCT requires strict adherence to precise mechanical guidelines to prevent immediate component failure upon re-commissioning.

1. The 90 kN Clamping Force Requirement

• The Risk: IGCT modules do not use mounting bolts to secure their electrical contacts. Instead, they must be compressed into a high-power cooling stack using a heavy hydraulic spring clamp. If you under-torque the clamp, contact resistance will increase dramatically, and the module will instantly burn out on startup. Over-torquing the clamp can warp or crack the internal silicon wafer disk.
• The Fix: Always use a calibrated hydraulic tensioning tool or torque press during installation. Tighten the stack assembly until it reaches the exact loading force specified by ABB (typically 90 kN\pm10\% for this frame size). Check the alignment markers on the clamp frame to verify that the pressure is distributed perfectly flat across the module surface.

2. Maintaining Optical Fiber Alignment and Cleanliness

• The Risk: Dust, moisture, or a slight bend in the fiber-optic command lines can scatter the light signal. If the gate command pulse arrives weak or distorted, the IGCT might experience incomplete commutation, destroying the module within microseconds during a high-power switch cycle.
• The Fix: Clean the tips of your fiber-optic cables with residue-free optical wipes before plugging them into the card housing. Route the optical cables along gentle curves; never bend or zip-tie fiber lines at sharp angles, as this can fracture the internal glass or plastic cores.

3. Managing Thermal Interface Compounds

• The Risk: Applying too much thermal paste or using compound that contains metallic particles can cause high-voltage tracking or create air pockets that trap heat.
• ❗ Crucial Warning: Clean the cooling plates thoroughly until the bare metal is bright and free of old debris. Apply a microscopically thin, completely even layer of premium, non-conducting silicone thermal compound across both side disks. The paste is only intended to fill microscopic surface imperfections—not to act as a spacer layer between the copper contacts.

Compatible Replacement Models

If you are auditing system spare parts lists or planning drive maintenance overhauls, note these hardware cross-reference profiles:

Troubleshooting Quick Reference

Use this field diagnostic guide to check performance if a medium-voltage drive phase block reports an error:

Need immediate engineering backup? If your plant is down and you cannot pinpoint the failure node, drop our technical support desk an email with photos of your current indicator lights and a copy of your panel’s wiring diagram. We will have an integration engineer respond within 2 hours.
