Description
The ABB 6637517A1 (also identified by the assembly code 660-MISC-3311) is a specialized power electronics component, typically functioning as a firing board or interface module within high-power rectifier systems, such as the ABB MEGAVERTER or similar large-scale industrial drive systems.
Product Parameters (Datasheet)
- Model Number: 6637517A1
- Assembly Code: 660-MISC-3311
- Component Type: Firing/Interface Circuit Board
- System Series: ABB Power Electronics / High-Power Rectifiers
- Input Logic Voltage: Standard 5V/15V CMOS/TTL levels (system dependent)
- Isolation: High-voltage galvanic isolation between control and power stages
- Mounting: Chassis or rack-mount style with multi-pin header connectors
- Operating Temperature: -10°C to +70°C (Industrial Grade)
Country of Origin
This precision power electronics module is engineered and manufactured by ABB in Switzerland or the USA, depending on the specific system lineage it supports.

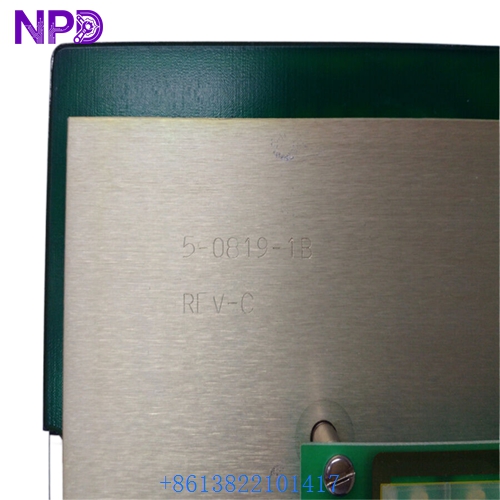

ABB 6637517A1 660-MISC-3311
ABB 6637517A1 660-MISC-3311
ABB 6637517A1 660-MISC-3311
Application Fields
The 6637517A1 is found in heavy-duty electrical infrastructure:
- Aluminum Smelters: Controlling high-current rectifiers used in the electrolysis process.
- Steel Mills: Managing the power delivery for electric arc furnaces (EAF).
- Mining Operations: Providing power conditioning for large-scale hoist and grinding mill drives.
- Traction Power: Used in substations for DC railway and metro systems.
- Renewable Energy: Integrated into large-scale grid-tie converters and HVDC (High Voltage Direct Current) stations.
Product Usage Instructions
- System De-energization: Before installation, ensure all DC bus capacitors are fully discharged. Danger: Residual high voltage may be present even after power-off.
- ESD Protection: Handle the board only by the edges while wearing a grounded ESD wrist strap to prevent damage to the high-speed logic chips.
- Connection Integrity: Verify that all ribbon cables and header pins are straight and clean before insertion. Ensure the locking tabs on the connectors click into place.
- Cooling: Ensure the board is mounted in an area with adequate airflow, as the power-driving components on the board can generate localized heat.
- Diagnostic Check: After power-up, verify the “Heartbeat” or “Ready” LEDs (if equipped) to ensure the board is communicating with the central controller.
Product Technical Description
The 6637517A1 acts as the critical bridge between the low-voltage digital control system and the high-voltage thyristor or IGBT stacks. Its primary role is to provide precisely timed “firing pulses” to the gates of the power semiconductors. Technically, it incorporates sophisticated pulse-transformer isolation to ensure that the kilovolt-level power on the rectifier side does not feedback into the sensitive PLC or microprocessor logic. The board also performs “feedback monitoring,” sensing the state of the power components and reporting faults (such as short circuits or over-temperature) back to the main control unit to trigger rapid protection sequences.
Q&A (Common Questions)
Q: Can this board be used in a standard AC motor drive? A: This board is generally specific to high-power rectifier or DC-link systems and is not a standard component for low-voltage AC general-purpose drives.
Q: What is the significance of the “MISC” designation in the part number? A: In ABB’s nomenclature, “MISC” often refers to a multi-purpose or miscellaneous assembly that performs specific auxiliary functions like signal conditioning or gate driving within a larger power cabinet.
Q: How do I test the outputs of this board? A: Testing should be done using an oscilloscope with isolated probes to verify the pulse width and frequency of the gate signals while the system is under a safe test-voltage.
Q: Is this board compatible with both 50Hz and 60Hz systems? A: Yes, the board’s logic handles the timing based on the reference signals provided by the main controller, making it independent of the grid frequency.
Similar Model Recommendations
- ABB 6639535A1 (Related Power Board)
- ABB 57388414 (Thyristor Interface)
- ABB 3BHB003154R0101 (Modern Gate Driver Module)
- ABB 64606132 (Excitation Interface)
- ABB 6637517B1 (Alternate revision of the firing board)
For more information on the ABB 6637517A1 and technical support for legacy ABB power electronics, please contact our engineering department.
