Description

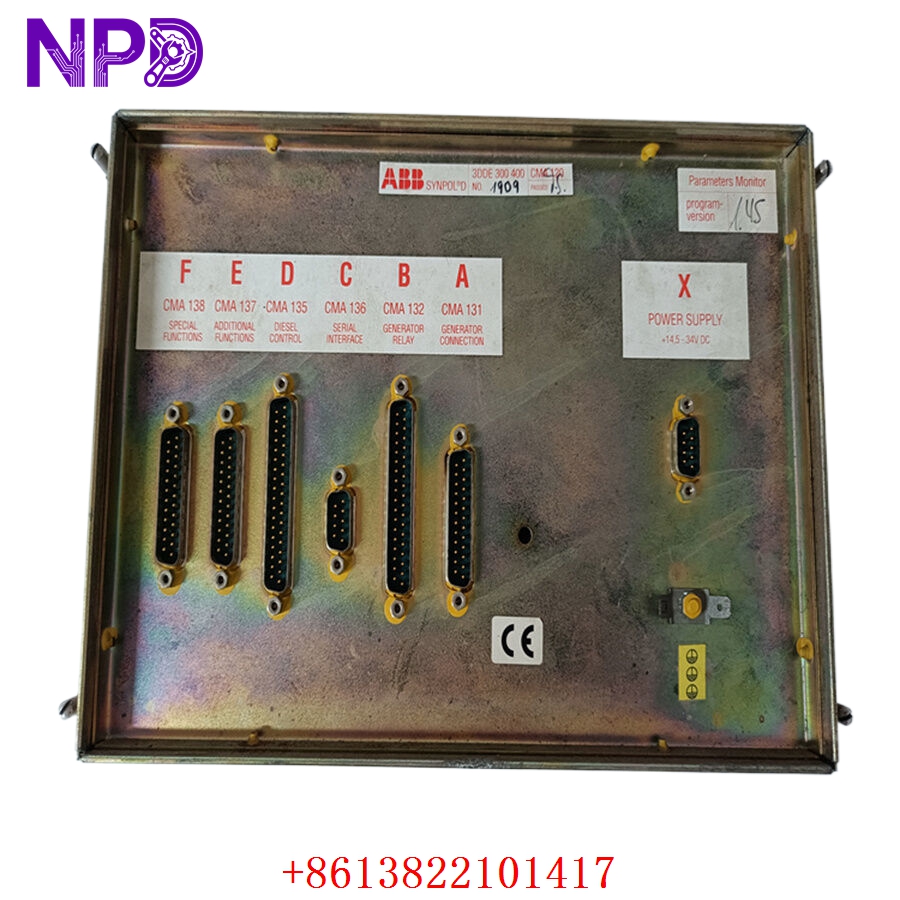

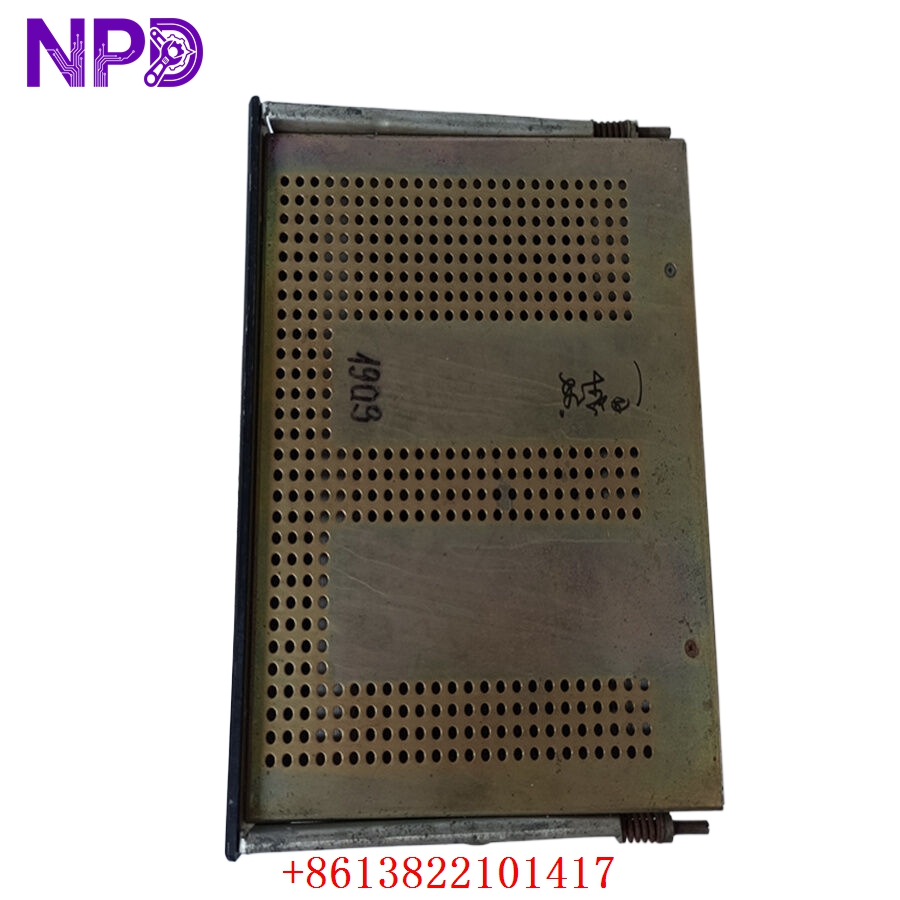

Model: CMA120 (3DDE300400)
· Brand: ABB
· Series: MasterPiece / Advant Controller Series
· Core Function: ⚙️ High-speed signal processing and control logic execution for industrial processes
· Product Type: 📟 Controller/Communication Module
· Key Specs: 🛠️ Multi-channel I/O handling, robust processing architecture, system-bus integration
- Processing Unit: Proprietary ABB RISC-based control architecture
- System Interface: MasterBus / MB300 link compatibility
- Diagnostic Features: Front-panel LED status array (RUN, FAULT, COMM)
- Connectivity: Backplane-mounted for high-speed I/O communication
- Operating Temp: 0 °C to 55 °C
- Protection: Conformal coating for corrosive industrial environments
- Hardware Configuration: Manual switch and jumper address settings
Application Scenarios & Engineering Insights
The CMA120 (3DDE300400) is a cornerstone in legacy ABB control architectures, often found in heavy industrial plants. In my experience, the biggest “silent” failure point for this module is the memory backup battery. If the system loses power and the battery is exhausted, you will lose the runtime application stored in RAM, leading to a “Controller Failure” state upon reboot. Always verify battery voltage (usually >3.0 V) during your annual preventative maintenance.
Typical Use Cases:
- Mining – Kiln Control
Regulating burner temperatures and air-to-fuel ratios in rotary kilns.
- Steel Manufacturing – Conveyor Coordination
Managing logic and synchronization for multi-stage material transport systems.
- Chemical Processing – Reactor Temperature Control
Ensuring precise PID loop execution for temperature-sensitive chemical reactions.
Troubleshooting Pro-Tip:
If you replace this module, do not rely on the “default” configuration. These units are highly application-specific. You must perform a backup of the original application using the ABB MasterPiece or Advant Station programming tool before removing the faulty unit. If the original module is completely dead and the battery is also flat, you will be forced to rely on your last offline backup file.
Compatible Replacement Models
| Original Model | Replacement | Compatibility | Difference |
| 3DDE300400 | CMA120 | ✅ Direct | Identical hardware revision |
| 3DDE300400 | CMA110 | ⚠️ Limited | Lower processing power; software check required |
| 3DDE300400 | Modern PLC | ❌ Modification | Requires I/O re-wiring and software migration |
Note: Since the CMA120 is integrated into proprietary ABB bus architectures, there is no cross-brand replacement. Sourcing a tested, functional original is the only way to avoid a full-scale DCS system upgrade.
Troubleshooting Quick Reference
| Symptom | Probable Cause | Action |
| “FAULT” LED Solid Red | CPU/RAM watchdog timeout | Check application memory; replace backup battery |
| “COMM” LED Flashing/Off | MB300 bus interference | Inspect bus cable termination and shield continuity |
| Random Control Loop Jitter | Backplane power ripple | Verify 24 V DC rack supply stability |
| Module Not Initializing | Address/Jumper mismatch | Compare DIP switches with the old unit exactly |
Safety Warning: Never attempt to “force-fit” the module into the backplane. If the module does not slide in smoothly, inspect the pins on the backplane—even a single bent pin can cause an intermittent ground short that might damage the controller rack’s motherboard.
