Description
- Model: CSA463AE
- Reference P/N: HIEE400103R0001
- Brand: ABB (Switzerland)
- Series: Advant OCS / Control IT / UNITROL Excitation Systems
- Core Function: Processing high-speed pulse signals, typically for speed measurement or position feedback.
- Product Type: High-Speed Input / Counter Module
- Key Specs: Multi-channel pulse processing | Precise timing | 24V DC Logic
- Input Frequency: Support for high-speed pulses up to 100 kHz (application dependent)
- Signal Type: Differential or Single-ended (Push-Pull/Open Collector)
- Logic Voltage: 24 V DC
- Channels: Multiple independent counter channels
- Isolation: Optical isolation between field signals and internal system logic
- Bus Interface: Parallel backplane interface for ABB Advant/Control IT racks
- Internal Power: Derived from the rack backplane
- Diagnostic LEDs: Front-panel status indicators for “Run,” “Fault,” and “Input Status”
- Compatibility: Used extensively in UNITROL 5000 and 6000 excitation systems

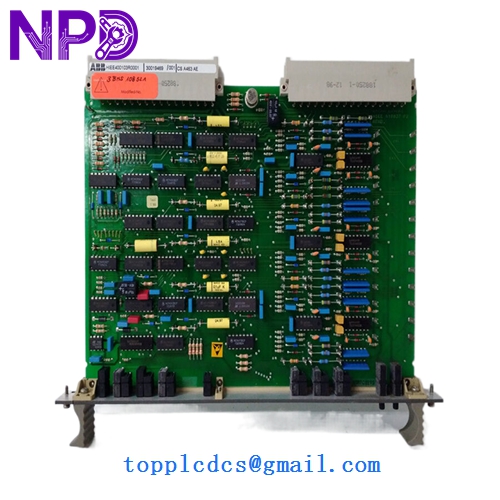

ABB CSA463AE HIEE400103R0001
Application Scenarios & Pain Points
The CSA463AE is a specialized module often found in the heart of power generation control. In UNITROL excitation systems, this module is responsible for monitoring the actual shaft speed or rotor position. If the CSA463AE fails, the excitation controller loses its speed reference, which can trigger an immediate “Over-speed” or “Loss of Speed Signal” trip. For a utility-scale generator, this means an unplanned trip of the entire turbine-generator set.
Typical Application Scenarios:
- Turbine Speed Measurement Interfacing with magnetic pickups or proximity sensors on the turbine shaft to provide real-time RPM data to the control logic.
- Rotor Position Feedback Processing encoder signals to ensure precise firing angles for the thyristor bridges in synchronous motor or generator excitation.
- High-Speed Counting Used in general industrial processes where standard digital inputs are too slow to capture millisecond-level pulses.
Engineering Case Study: The “Jittery” Speed Fault
Background: A hydroelectric plant using an ABB UNITROL system began seeing erratic speed readings in their HMI. The generator was steady, but the speed signal was jumping ±50 RPM.
The Problem: The diagnostics for the HIEE400103R0001 module showed “Signal Quality Low.” The internal filter circuit of the CSA463AE had degraded over a decade of operation, making it sensitive to electromagnetic interference (EMI) from the nearby power cables.
The Solution: We provided a replacement CSA463AE from our tested stock. During installation, we recommended the plant verify the shield grounding for the speed sensor cables.
Result: The new module restored a crystal-clear speed signal. The plant avoided an expensive manual overhaul of the shaft sensors because the problem was isolated to the processing module itself.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Change Impact |
|---|---|---|---|---|
| CSA463AE | CSA463 (Standard) | ⚠️ Hardware | “AE” revision may have updated logic | Check firmware version |
| CSA463AE | UNS0863A-Z | ❌ Incompatible | Different I/O architecture | Not interchangeable |
| CSA463AE | HIEE400103R0001 | ✅ Direct | Exact Part Number Match | Drop-in replacement |

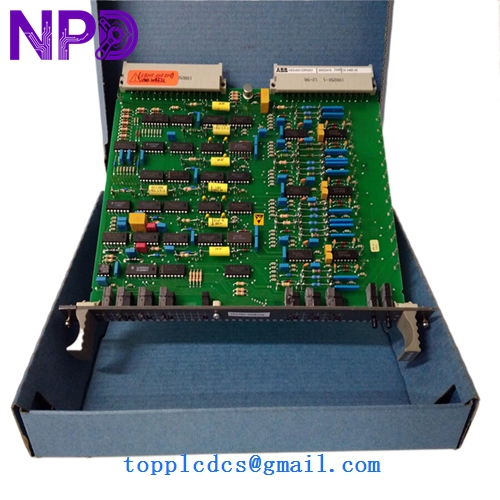

ABB CSA463AE HIEE400103R0001
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to CSA463AE | Quick Check | Action |
|---|---|---|---|---|
| Fault LED (Red) | Internal Module Error | ✅ High | Re-seat the module in the rack. | Replace module if LED remains Red. |
| No Pulse Counts | Sensor/Cable Break | ⚠️ Medium | Measure voltage at the input terminals. | Verify sensor power and wiring. |
| Speed = 0 | Module Logic Hang | ✅ High | Check if the “Run” LED is green. | Power cycle the rack. |
| Erratic Values | Noise / EMI | ⚠️ Medium | Ensure twisted-pair shielded cabling. | Check cable shield grounding. |
Engineer’s Pro-Tip: “When you’re swapping a HIEE400103R0001, treat it as an electrostatic-sensitive device. These high-speed timing modules use delicate A/D and counter chips that can be damaged by static. Also, if you’re using an encoder, double-check your ‘Pulse per Revolution’ (PPR) settings in the controller software after the swap—sometimes a new module revision might require a minor timing adjustment in the Advant software to match your specific sensor type.”
Need the specific terminal block pinout for a 3-wire NPN vs. a 2-wire magnetic pickup? I can provide the wiring diagram for the CSA463AE—just let me know.
