Description

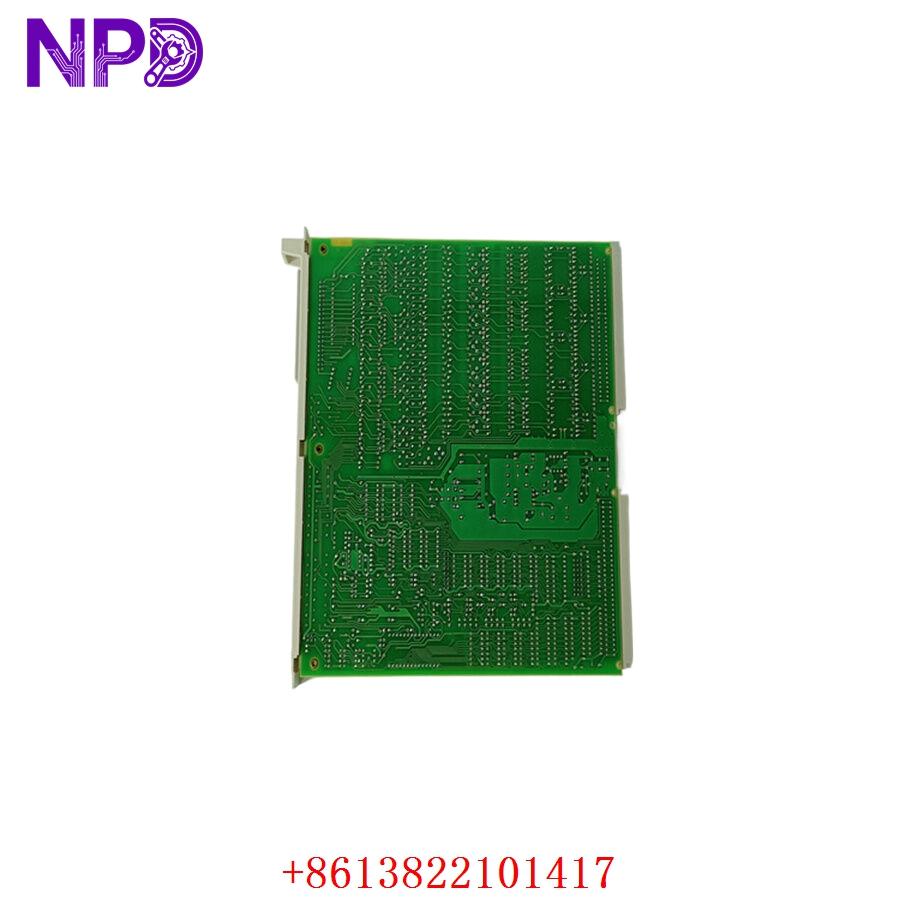

- The ABB DSAI130D 3BSE003127R1 is a high-density Analog Input Module designed for the MasterPiece 200 and Advant OCS (Open Control System) with Master software. It serves as a reliable interface between field-level analog sensors and the central processing system. Featuring 16 single-ended or 8 differential input channels, this module converts incoming continuous current or voltage signals into digital data with high resolution and accuracy. Equipped with onboard filtering and electrical isolation, the DSAI130D protects sensitive control electronics from harsh industrial line noise and ground loops, making it an essential component for demanding process monitoring setups.
Product Specifications
- Model Number: DSAI130D 3BSE003127R1
- Manufacturer: ABB
- Control System Series: Advant OCS, MasterPiece 200 / Master Advancement
- Function: 16-Channel Analog Input Board
- Dimensions: 234 mm x 20 mm x 160 mm (Standard Eurocard format)
- Weight: 0.38 kg (0.84 lbs)
- Country of Origin: Sweden
- Number of Channels: 16 single-ended or 8 differential channels (software/jumper configurable)
- Input Signal Ranges: 0 to 20 mA, 4 to 20 mA, 0 to 10 V, 0 to 5 V
- A/D Conversion Resolution: 12-bit binary
- Isolation: 500V AC galvanic isolation between system logic and field inputs
Applications
- Process Industry Monitoring: Continuously tracks temperature, pressure, flow rate, and liquid level signals from transmitters in chemical and petrochemical plants.
- Power Plant Supervision: Gathers precision analog data from boiler systems, steam turbine auxiliaries, and cooling loops for central distributed control systems (DCS).
- Water and Wastewater Treatment: Interfaced with analytical field instruments measuring pH levels, turbidity, dissolved oxygen, and pumping line pressures.
- Metallurgical & Pulp Processing: Deployed within heavy industrial mills to monitor furnace temperatures, hydraulic pressure loops, and raw material feed speeds.
Product Usage Instructions
- Hardware Setting and Configuration: Before inserting the board into the subrack, set the onboard jumpers or DIP switches to define the input type (current or voltage) and the configuration mode (differential or single-ended) to match your field devices.
- Module Installation: Power down the I/O subrack. Slide the DSAI130D board carefully along the guide rails into its designated slot on the MasterPiece/Advant chassis until it mates firmly with the backplane connector. Tighten the front panel retaining screws.
- Field Wiring Connection: Route field instrument lines to the appropriate terminal block unit (such as the DSTA 131 or DSTA 135 termination unit) connected via the flat ribbon cable to the front of the DSAI130D board. Ensure shield grounding is executed correctly to minimize signal noise.
- System Integration: Open your Advant Station or Master Configuration Tool to define the hardware tree. Assign the I/O addresses for the 16 channels, establish scaling factors (e.g., converting 4-20mA to 0-100% engineering units), and deploy the updated configuration database to the controller.
Frequently Asked Questions (Q&A)
- Q: Can the DSAI130D handle 2-wire transmitters that require loop power from the board? A: No, the DSAI130D channels are passive inputs that read incoming voltage or current. If you are utilizing 2-wire transmitters, external 24V DC loop power must be wired into the input loop, or a powered distribution terminal block must be used.
- Q: What is the primary difference between setting the channels to single-ended versus differential? A: Single-ended configuration allows you to maximize capacity up to 16 inputs by sharing a common ground return line. Differential mode reduces capacity to 8 inputs but uses two dedicated lines per channel, providing much higher noise rejection for long-distance cable runs.
- Q: How does the module indicate an internal hardware fault or a channel error? A: The front panel of the board features a red “Fault” LED indicator. A steady red light signifies an internal board failure or an analog-to-digital converter error, prompting the system software to flag the channel values as invalid.
- Q: Is the DSAI130D 3BSE003127R1 hot-swappable under live system operating conditions? A: No, it is highly recommended to switch off power to the specific I/O subrack or slot section prior to removing or inserting the analog board to prevent electrical arcs or transient data corruption on the shared system backplane.
