Description
- Model: ABB FI830F (3BDH000032R1)
- Brand: ABB (Switzerland/Germany)
- Series: Freelance DCS / AC 800F Controller Series
- Core Function: PROFIBUS DP Master communication interface
- Product Type: Fieldbus Interface Module
- Key Specs: 12 Mbit/s Max Baud Rate Supports up to 125 Slaves D-Sub 9-pin Connector
- Protocol: PROFIBUS DP-V0 / DP-V1
- Interface Type: Single-channel Master interface
- Data Rate: 9.6 kbit/s to 12 Mbit/s (Auto-detection)
- Slot Compatibility: Designed for AC 800F (PM 802F / PM 803F) fieldbus slots
- Address Range: 0 to 125
- Diagnostic LEDs: Power, Run, and Error status indicators on front panel
- Isolation: Galvanically isolated from the controller bus
- Configuration Tool: Configured via ABB Freelance Engineering (CBF)
- Power Consumption: Approx. 1.5 W from controller backplane

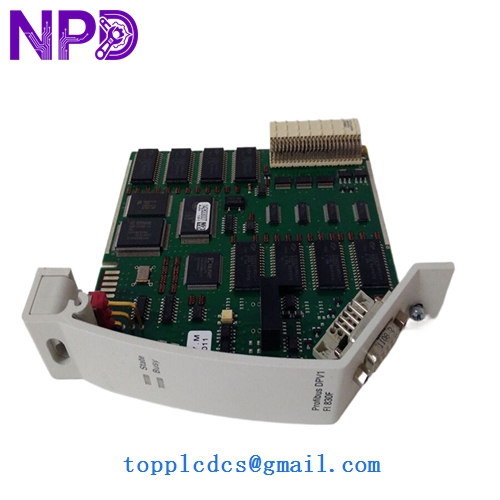

ABB FI830F 3BDH000032R1
ABB FI830F 3BDH000032R1
ABB FI830F 3BDH000032R1
Application Scenarios & Pain Points
In the ABB Freelance DCS environment, the FI830F is the gateway to your field devices. Whether you are controlling Siemens drives, Festo valve terminals, or Endress+Hauser instrumentation, this module is what translates the AC 800F logic into PROFIBUS telegrams. In my experience, if this module fails, you don’t just lose one sensor—you lose the entire “segment.” If your plant relies on PROFIBUS for its motor control centers (MCC), a failure here means your pumps and fans stop talking to the PLC instantly.
Typical Application Scenarios:
- Water & Wastewater Treatment Linking the AC 800F controller to distributed I/O stations and VFDs across large plant areas.
- Chemical Batch Processing Managing complex instrument clusters via PROFIBUS PA (through a DP/PA coupler).
- Power Plant Auxiliaries Interfacing with electrical protection relays and smart breakers in the switchgear room.
- Cement & Mining Controlling long-distance conveyor systems and heavy-duty drives in dusty, electrically noisy environments.
Case Study: The “Cyclic Data” Nightmare
Background: A food processing facility in Western Europe was using an AC 800F system. Suddenly, the controller started reporting “Fieldbus Error,” and the entire packaging line went into a safety state.
Problem: The on-site team checked the cabling and the terminators, but the error persisted. After looking at the Freelance “Control Builder F” (CBF) diagnostics, I noticed the FI830F module was sporadically resetting its communication stack. The module was nearly 12 years old and the internal capacitors were failing under high ambient temperatures.
Solution: We shipped a tested FI830F (3BDH000032R1) via overnight express.
Result: – Rapid Recovery: The module was swapped during the morning shift, and the bus synchronized immediately.
- Production Restored: The line was back up in under 24 hours.
- Engineer’s Insight: “With PROFIBUS, people always blame the cables first. But if your diagnostic buffer shows the Master is ‘Not Ready’ or ‘Off-line,’ the module itself is likely the culprit.”
Compatible Replacement Models
The FI830F is specific to the AC 800F hardware. You cannot swap it with “S800” or “AC 800M” modules without changing the controller.
| Original Model | Replacement Model | Compatibility | Note |
|---|---|---|---|
| FI830F | 3BDH000032R1 | ✅ Exact Match | Standard PROFIBUS DP Master. |
| FI830F | FI840F | ❌ Incompatible | FI840F is for Foundation Fieldbus; different protocol. |
| FI830F | FI810F | ❌ Incompatible | FI810F is for CAN bus; do not mix. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation | Quick Check | Action |
|---|---|---|---|---|
| “ERR” LED Flashing Red | Bus Configuration Error | ✅ High | Check if the GSD files match the physical devices. | Re-download configuration via CBF. |
| “ERR” LED Solid Red | Hardware Defect | ✅ High | Reseat the module in the AC 800F slot. | If LED stays red, replace the module. |
| Intermittent Slave Loss | Terminating Resistor | ⚠️ Med | Check if the 120Ω resistor is ON at both ends. | Ensure end-of-line switches are set. |
| No “RUN” LED | Controller Not Loading | ⚠️ Med | Check the status of the PM 802F/803F CPU. | Ensure the CPU is in “RUN” or “Active” mode. |
❗ Pro Tip: The “Hot-Plug” Warning
The AC 800F controller technically supports some modularity, but I highly recommend powering down the rack before inserting or removing the FI830F. I have seen the “The Mesh” backplane communication on the CPU get corrupted by a sudden power surge during a hot-swap, causing the entire controller to reboot.
Wiring & Termination:
Always use a high-quality D-Sub connector with a built-in terminating resistor switch (like the ones from Siemens or Phoenix Contact). When you swap the FI830F, ensure the PROFIBUS cable isn’t putting mechanical stress on the 9-pin port; these ports can develop “cold solder joints” on the PCB if the cable is too heavy or poorly supported.
