Description
- Model: ABB FM9925a-E (HIEE451116R0001)
- Brand: ABB (Switzerland/Germany)
- Series: High-performance Analog I/O Series
- Core Function: High-precision analog signal processing and interface
- Product Type: Analog Input/Output Module
- Key Specs: Multi-channel Analog Interface 12/16-bit Resolution High Galvanic Isolation
- Part Number: HIEE451116R0001
- Module ID: FM9925a-E
- Input Channels: Typically 8 differential or 16 single-ended (application specific)
- Signal Ranges: 0–10 V, ±10 V, 0/4–20 mA
- Resolution: 16-bit A/D conversion for high-precision loops
- Isolation: 500 V DC minimum between field and logic
- Sampling Rate: Fast scan capable (< 10 ms per rack)
- Power Consumption: Approx. 2.0 W from internal backplane
- Mounting: Standard ABB high-density subrack/baseplate

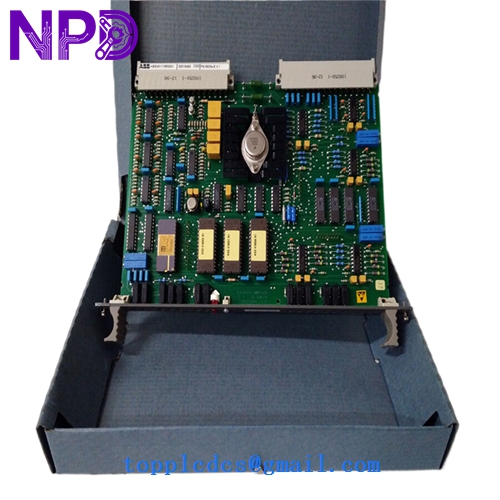

ABB FM9925A-E HIEE451116R0001

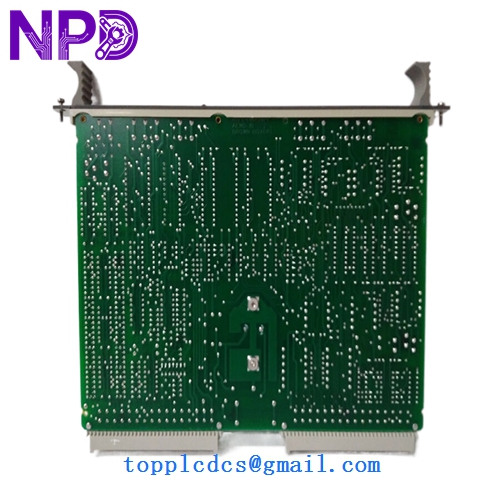

ABB FM9925A-E HIEE451116R0001

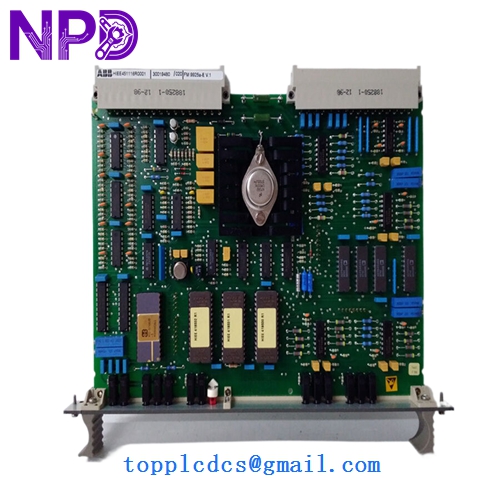

ABB FM9925A-E HIEE451116R0001
Application Scenarios & Pain Points
In specialized ABB control environments, the FM9925a-E serves as the critical link between sensitive field instruments and the digital logic core. This module is often found in systems where signal integrity is paramount, such as turbine governor controls or precision chemical dosing. When these modules age, they often suffer from “Analog Drift,” where the value in the PLC doesn’t quite match the value at the transmitter. In a safety-critical system, even a 2% drift can lead to an unexpected process shutdown.
Typical Application Scenarios:
- Power Generation – Turbine Monitoring Processing high-speed analog feedback from steam or gas turbine valves and pressure sensors.
- Oil & Gas – Custody Transfer High-resolution monitoring of flow and temperature for precise volumetric calculations.
- Steel Mills – Rolling Force Control Managing the high-speed hydraulic pressure loops required for maintaining consistent metal thickness.
- Pharmaceutical – Batch Reactor Control Precise temperature and pH monitoring where 16-bit resolution is needed for quality compliance.
Case Study: The “Hunting” Valve Mystery
Background: A power plant in Scandinavia was experiencing “hunting” on a main steam bypass valve. The valve would oscillate +/- 3% around its setpoint, causing mechanical wear and pressure instability.
Problem: The maintenance team replaced the valve actuator and the local transmitter, but the oscillation continued. After connecting a signal calibrator directly to the FM9925a-E (HIEE451116R0001), I discovered that the module’s internal reference voltage was fluctuating due to a failing capacitor on the PCB.
Solution: We provided a certified replacement FM9925a-E from our inventory.
Result: – Stability: The oscillation stopped immediately after the new module was initialized.
- Cost Savings: Prevented a full turbine trip and avoided premature mechanical failure of the expensive actuator.
- Engineer’s Insight: “If your PID loop is hunting and you’ve already tuned the gains, check your analog input module. If the incoming signal has high-frequency noise or drift caused by the module itself, no amount of software tuning will fix it.”
Compatible Replacement Models
The “HIEE” part number is the definitive identifier for this ABB board. Be cautious with variants that have different suffixes as the firmware or scaling may differ.
| Original Model | Replacement Model | Compatibility | Note |
|---|---|---|---|
| FM9925a-E | HIEE451116R0001 | ✅ Exact Match | The standard baseline unit. |
| FM9925a | FM9925a-E | ⚠️ Software | The “-E” version often denotes an enhanced or European revision. |
| FM9925b | None | ❌ Incompatible | “b” revisions usually have different channel densities or I/O types. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation | Quick Check | Action |
|---|---|---|---|---|
| I/O Value Frozen | Bus Timeout | ⚠️ Med | Check the module “RUN” LED status. | Reseat the module; check backplane. |
| Values Drifting | Component Aging | ✅ High | Compare field voltage vs. PLC value with a Fluke 789. | Replace FM9925a-E module. |
| Channel “Overflow” Error | Short Circuit | ❌ Low | Measure loop current at the terminal block. | Check field wiring for shorts to ground. |
| Intermittent Signal Loss | Cold Solder Joint | ✅ High | Gently tap the module while monitoring the PLC value. | If the value jumps, the module is failing. Replace it. |
❗ Pro Tip: The “Warm-Up” Period
When you first install a new FM9925a-E, allow it to sit powered in the rack for about 15–20 minutes before performing your final loop calibration. High-precision 16-bit analog components need to reach thermal equilibrium to ensure the internal reference voltage is stable.
Handling & ESD:
These modules are densely packed with surface-mount components.
- Never touch the gold fingers on the connector with your bare hands; skin oils cause oxidation over time.
- Use an ESD-safe bag for the old module to ensure it can be sent for professional repair.
- Verify your 24 V DC loop power is clean; high ripple voltage on the power supply can “cook” the filter capacitors on these analog boards prematurely.
