Description
- Model: ABB GVC736CE101
- Brand: ABB (Power Electronics Division)
- Part Number: 3BHE039203R0101
- Designation: 5SXE12-0184
- Series: UNITROL / PEC (Power Electronic Controller) Series
- Core Function: Gate control and signal processing for high-power converters/excitation
- Product Type: Gate Lead-in / Control Board
- Key Specs: Multi-fiber optic interface High-voltage isolation IGBT/Thyristor trigger logic
- Voltage Supply: Typically 24 V DC internal logic (via backplane)
- Communication Interface: Fiber optic links (for noise immunity and high-voltage isolation)
- Trigger Logic: High-speed gate control for semiconductor modules (IGBTs/Thyristors)
- Monitoring: Real-time DC link and phase current feedback processing
- Board Revision: 3BHE039203R0101 (Verify suffix for hardware versioning)
- Enclosure/Mounting: Direct mount or subrack integration (5SXE format)
- Diagnostic Tools: Compatible with ABB PEC Tool / Control IT environments
- Operating Environment: Designed for high-EMC industrial power cabinets

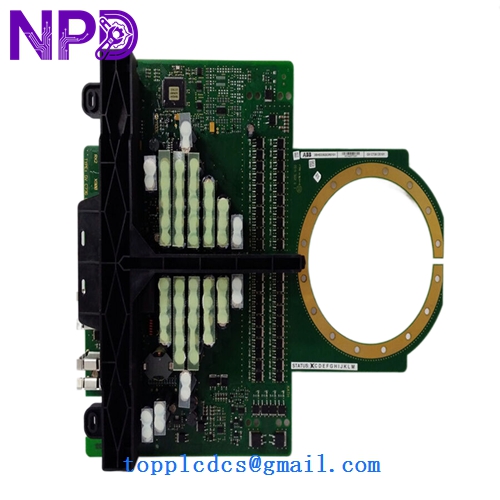

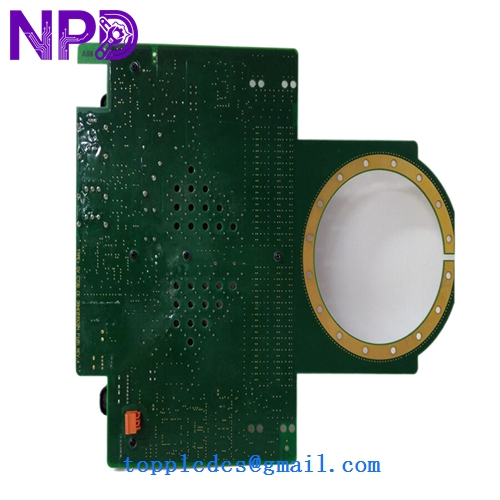

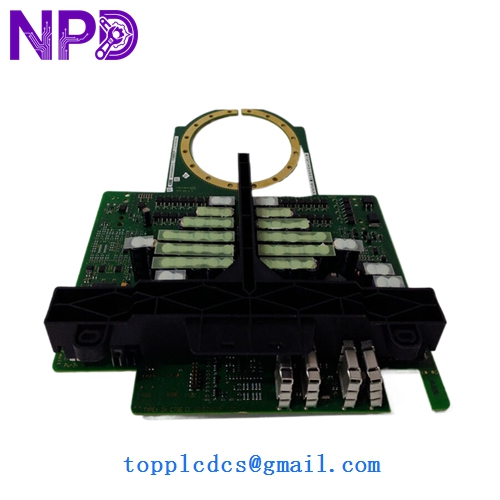

ABB GVC736CE101 3BHE039203R0101 5SXE12-0184
ABB GVC736CE101 3BHE039203R0101 5SXE12-0184
Application Scenarios & Pain Points
The GVC736CE101 is a critical “bridge” module found in ABB’s high-power electronics systems, specifically within the UNITROL excitation series or large megawatt-scale motor drives. Its primary job is to take low-voltage control signals from the processor and convert them into the high-energy gate pulses needed to fire the power semiconductors. If this board fails, the entire drive or generator excitation system trips. I have seen cases where a single damaged fiber optic port on this board kept a 50 MW generator offline for days.
Typical Application Scenarios:
- UNITROL 6000 Excitation Systems Managing the field excitation for large synchronous generators in hydroelectric or thermal power plants.
- ACS6000 / MEGADRIVE-LCI Controlling the power modules in high-voltage variable speed drives for large pumps and compressors.
- Static Var Compensators (SVC) Providing precise firing control for thyristor valves in grid-scale reactive power compensation.
- Marine Propulsion Used in electric ship propulsion systems where high reliability and EMI resistance are non-negotiable.
Case Study: The Fiber Link Fault
Background: A hydroelectric plant in South America reported a “Converter Fault” on their UNITROL system. The main controller was healthy, but the gate units were not receiving the firing pulses.
Problem: The maintenance team checked the power supplies, but everything looked normal. After a deep dive into the cabinet, we identified that the GVC736CE101 (3BHE039203R0101) had a failed optical-to-electrical converter on one of the channels. The signal was reaching the board, but the gate logic wasn’t seeing it.
Solution: We provided a replacement GVC736CE101 with the matching 5SXE12-0184 designation.
Result: – System Recovery: The generator was back on the grid within hours of the board being swapped.
- Improved Reliability: The client implemented a new procedure to inspect fiber optic bend radiuses, which had likely contributed to the port failure.
- Engineer’s Insight: “In power electronics, heat is the enemy. These boards often fail due to thermal cycling inside the converter cabinets. If your fans aren’t running at 100%, your GVC boards are on a countdown.”
Compatible Replacement Models
Power electronics boards are highly specific. The “3BHE” and “5SXE” numbers must be matched carefully to ensure the timing and voltage levels are correct.
| Original Model | Replacement Model | Compatibility | Note |
|---|---|---|---|
| GVC736CE101 | 3BHE039203R0101 | ✅ Exact Match | The standard baseline unit. |
| GVC736CE101 | 3BHE039203R0001 | ⚠️ Software | R0001 vs R0101—Check your specific firmware/hardware revision. |
| GVC736CE101 | 5SXE12-0185 | ❌ Incompatible | Increment in 5SXE number usually means a physical hardware change. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation | Quick Check | Action |
|---|---|---|---|---|
| “Gate Fail” Alarm | Optical Transceiver | ✅ High | Check the fiber optic cable with a light meter. | Replace cable or GVC736 board. |
| Over-current Trip (False) | Feedback Scaling | ✅ High | Verify CT/PT feedback signals at the board input. | Recalibrate board or replace. |
| No Status LEDs | DC Power Failure | ⚠️ Med | Measure the 24V supply on the backplane connector. | Check the cabinet power supply. |
| Intermittent Misfire | EMI / Grounding | ⚠️ Med | Inspect shield bonding on all signal cables. | Improve cabinet grounding. |
❗ Pro Tip: Fiber Optic Care
The GVC736CE101 relies heavily on fiber optic inputs to maintain isolation from high voltage. Never look directly into the optical ports or cables when the system is powered. When replacing the board, ensure the fiber tips are cleaned with specialized wipes. A single speck of dust can attenuate the signal enough to cause intermittent “Misfire” alarms.
Handling & Installation:
These boards are often mounted in very tight spaces near large heat sinks.
- Wait at least 15 minutes after powering down the converter before touching the board to allow the DC link capacitors to discharge.
- Use an ESD strap—these boards carry sensitive gate-logic chips that can be “wounded” by static without failing immediately.
- When re-installing, ensure the mounting screws are tight, as they often provide the board’s logic ground connection.
