Description
- Model: ABB LT8978b V1
- Part Number: HIEE320639R0001
- Brand: ABB (Asea Brown Boveri)
- Series: Legacy High-Performance Control Series
- Core Function: Analog signal conditioning and interface logic
- Product Type: Analog Input / Signal Processing Module
- Key Specs: Multilayer PCB design V1 Hardware Revision High-precision resistors
- Hardware Revision: Version 1 (V1)
- Part Number: HIEE320639R0001
- Input Types: Standard 4-20 mA or 0-10 V DC (configuration dependent)
- Isolation: Galvanic isolation between signal inputs and system logic to prevent ground loops
- Filtering: Onboard active filtering for high-frequency noise suppression
- Connectors: High-density DIN-standard backplane connector
- Operating Voltage: Typically +5 V DC for logic and ±15 V DC for analog circuitry
- Coating: Industrial-grade conformal coating for humidity and dust resistance

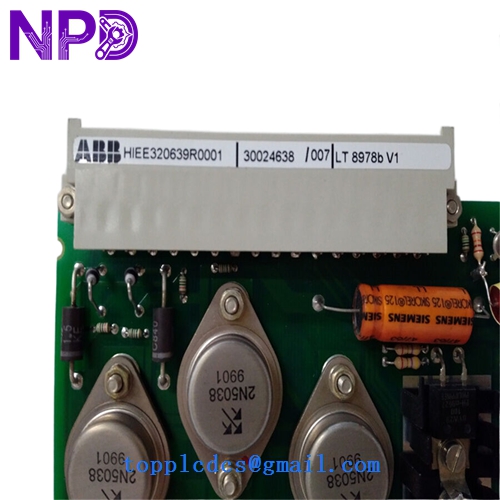

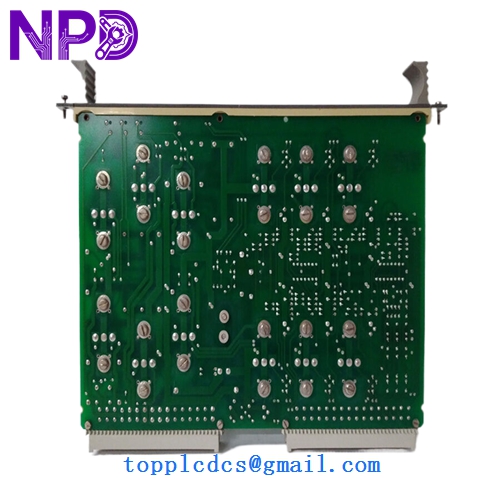

ABB LT8978b V1 HIEE320639R0001
ABB LT8978b V1 HIEE320639R0001
ABB LT8978b V1 HIEE320639R0001
Application Scenarios & Pain Points
The LT8978b V1 (HIEE320639R0001) is a specialized analog interface board typically found in ABB’s legacy power conversion, excitation, or heavy-duty drive systems. It acts as the “translator” that takes sensitive signals from the field—such as temperature, pressure, or current feedback—and prepares them for the central processor.
The biggest pain point with the LT8978b series is component aging, particularly the high-precision electrolytic capacitors and voltage reference chips. Over 15–20 years of continuous operation in a hot control cabinet, these components can drift, leading to “measurement offset” errors that are difficult to calibrate out.
Typical Application Scenarios:
- Generator Excitation Systems Monitoring field voltage and current feedback loops where high precision is required for voltage regulation.
- Large Variable Speed Drives (VSD) Interfacing with motor thermistors and speed transducers.
- Metals & Mining Controls Managing analog setpoints for heavy-duty rolling mill automation.
- Legacy DCS Integration Acting as a dedicated signal conditioning card within an ABB subrack.
Case Study: The “Ghost” Temperature Alarm
Background: A hydroelectric plant was experiencing intermittent “High Winding Temp” alarms. The machine was running at 50% load, and physical probes showed normal temperatures, but the DCS was seeing spikes.
Problem: We traced the signal to the LT8978b V1 board. One of the onboard operational amplifiers was failing intermittently due to thermal fatigue, causing the analog signal to “clip” to the maximum value randomly.
Solution: We provided a certified HIEE320639R0001 replacement module.
Result:
- Signal Stability: The spikes disappeared, and the readings returned to linear accuracy.
- Cost Avoidance: Prevented a forced shutdown of the generator unit.
- Engineer’s Insight: “When troubleshooting these legacy ABB analog boards, always check the voltage rails at the test points. If your ±15 V is even slightly unbalanced, the whole board’s accuracy is compromised.”
Compatible Replacement Models
The “HIEE” number is the critical identifier for this hardware. Always verify the “b” suffix and the “V1” revision to ensure physical and electrical fit.
| Original Model | Replacement Model | Compatibility | Note |
|---|---|---|---|
| LT8978b V1 | HIEE320639R0001 | ✅ Exact Match | Standard Version 1 revision. |
| LT8978 | LT8978b | ⚠️ Software | “b” version may have updated filters or resistors. |
| LT8978b V2 | LT8978b V1 | ❌ Incompatible | V2 hardware often changes pinouts or bus timing. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation | Quick Check | Action |
|---|---|---|---|---|
| Signal Constant 4mA/0V | Blown Input Fuse | ✅ High | Check small surface-mount fuses on the board. | Replace fuse or module. |
| Reading Drifting | Aging Reference Chip | ✅ High | Compare input voltage vs. system reported value. | Replace LT8978b board. |
| “Module Missing” Error | Connector Oxidation | ⚠️ Med | Inspect backplane pins for dark spots (tarnish). | Clean with electronic contact cleaner. |
| High-Frequency Noise | Filter Capacitor Failure | ✅ High | Check signal with an oscilloscope; look for ripple. | Replace module. |
❗ Pro Tip: The “Resistor Match”
If you are replacing an LT8978b that was used for a very specific current loop, check if there are any custom “burden resistors” added to the terminal block or the board itself. Sometimes these legacy cards were field-modified to accept non-standard signals. Always verify your scaling in the software after the swap.
Handling & Installation:
- Anti-Static: These legacy boards do not have modern ESD protection. Use a wrist strap.
- Insertion: These boards are large and can flex. Ensure the card is perfectly aligned in the plastic guides before pushing into the backplane.
- Verification: After installation, perform a “Zero” and “Span” check on at least one channel to ensure the new board is communicating correctly with the processor.
