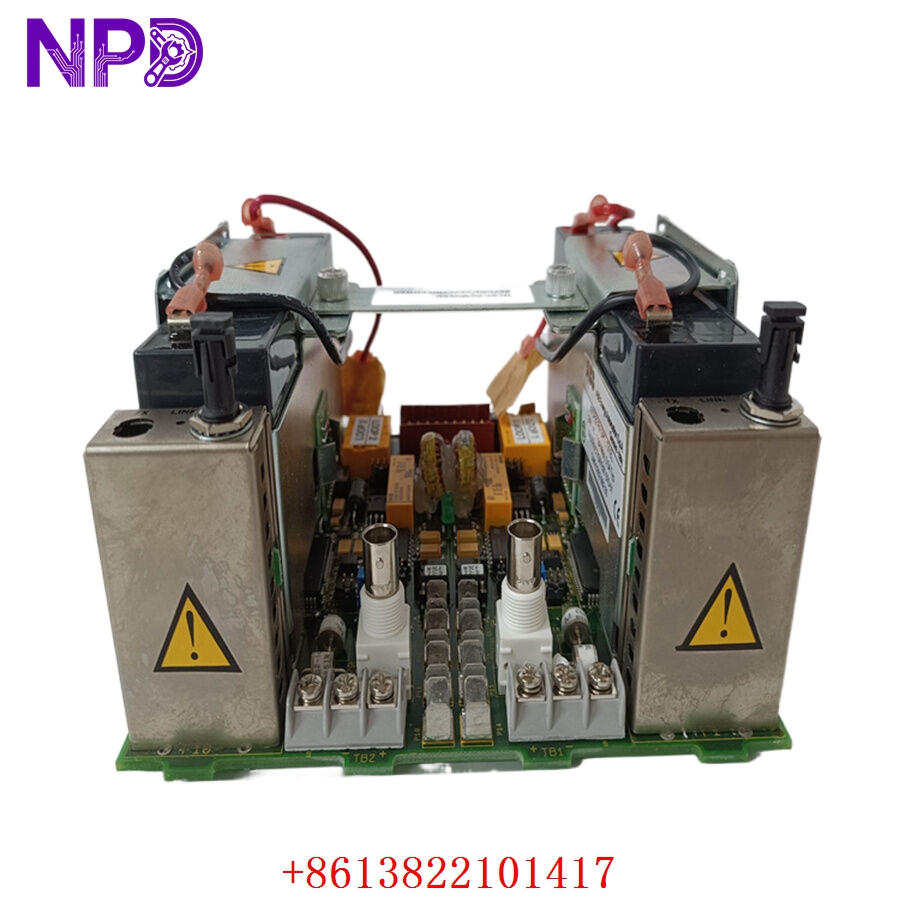

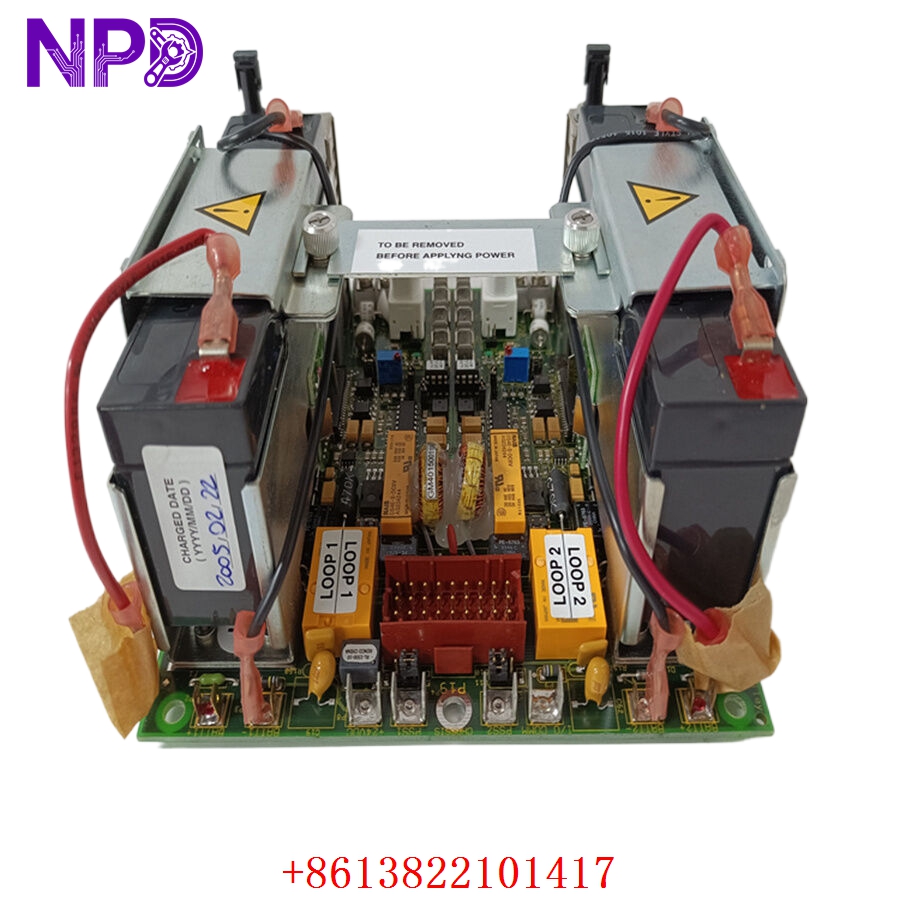

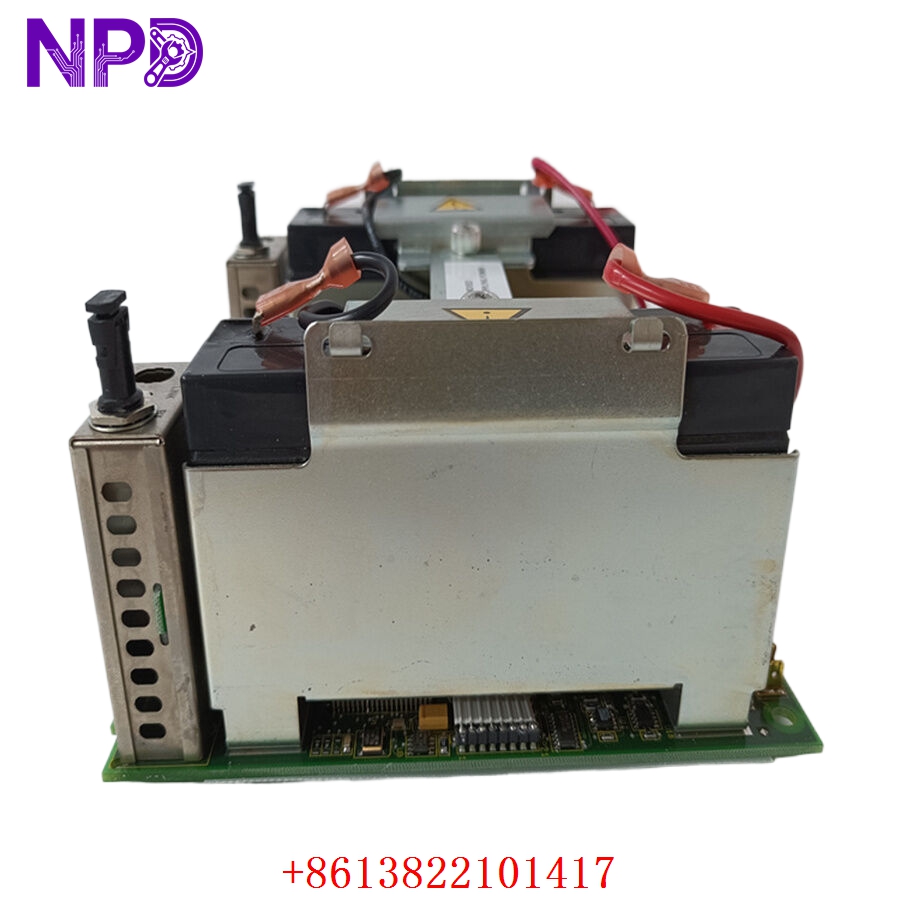

ABB NTCF22 Termination Unit

Description

Model: NTCF22

· Brand: ABB (formerly Bailey Controls)

· Series: INFI 90 / Symphony / Harmony Series

· Core Function: ⚙️ Provides field signal termination and fault protection for analog or digital I/O loops

· Product Type: 📟 Field Termination Unit (FTU)

· Key Specs: 🛠️ Modular terminal block design, signal isolation, fuse/surge protection

• Module Type: Field Termination Unit (FTU)
• Compatibility: Integrates with INFI 90 / Symphony Harmony I/O modules
• Functionality: Serves as the interface between field devices (sensors/actuators) and the controller I/O cards
• Protection: Integrated fusing for loop protection and over-voltage surge suppression
• Mounting: DIN rail or cabinet-backplane mount
• Wiring: Screw-terminal design for secure field wiring termination
• Environment: Conformal coated for operation in high-humidity or corrosive industrial environments

Application Scenarios & Engineering Insights

The NTCF22 is an essential piece of hardware in legacy Bailey INFI 90 systems. These units act as the “gateway” for field signals. Because they sit at the edge of the control system, they are often the first point of failure during lightning strikes or field wiring shorts. A recurring “pain point” is that users often replace the expensive I/O card while the fault is actually a blown fuse or oxidized terminal inside the NTCF22. Always check the continuity across the fuse/terminal block before assuming the I/O module is dead.

Typical Use Cases:

1. Power Generation – Boiler Control

   Terminating analog signals from pressure and temperature transmitters in a Bailey INFI 90 DCS.

2. Water Treatment – Remote I/O

   Managing digital input signals from valve status switches and pump alarms.

3. Heavy Industry – Distributed Control

   Providing robust field-to-controller signal isolation in geographically distributed cabinets.

Troubleshooting Pro-Tip:

Since this is a passive device, failure is almost always mechanical or electrical (open circuit). If you have an “intermittent” input signal, use a millivolt-meter to check for a voltage drop across the terminal connection. A drop of >100 mV usually indicates high resistance caused by terminal corrosion—a quick wire-brushing or terminal block replacement often resolves the issue.

Compatible Replacement Models

Note: Since the NTCF22 is part of the proprietary Bailey I/O structure, there is no cross-brand replacement. It is designed specifically to interface with the matching INFI 90 series I/O cards.

Troubleshooting Quick Reference

Safety Warning: Always isolate the loop power before working on the NTCF22. Even though it is a passive termination unit, accidental shorting of the terminals can send a high-voltage surge back to the sensitive I/O card, potentially damaging both the controller and the field transmitter.
