Description
- Model: PFSK152
- Part Number: 3BSE018877R2 / 3BSC980006R361
- Brand: ABB
- Series: Advant Controller / AC 800M / S800 I/O
- Core Function: System power supply and distribution for I/O clusters
- Product Type: Power Supply Unit (PSU)
- Key Specs: 24V DC Output Redundancy Support DIN-rail Mounting
- Input Voltage: Typically 24V DC (nominal)
- Output Voltage: Stabilized 24V DC for internal system bus
- Redundancy: Supports dual-feed power configurations to prevent system downtime
- Current Rating: Designed to power full S800 I/O stations (typically up to 4A or 8A depending on backplane)
- Status Monitoring: Integrated “Power OK” dry contacts for remote signaling
- Connection: Plugs into specialized Power Communication Interfaces (e.g., CI801/CI840) or dedicated baseplates
- Protection: Overvoltage, short-circuit, and reverse polarity protection

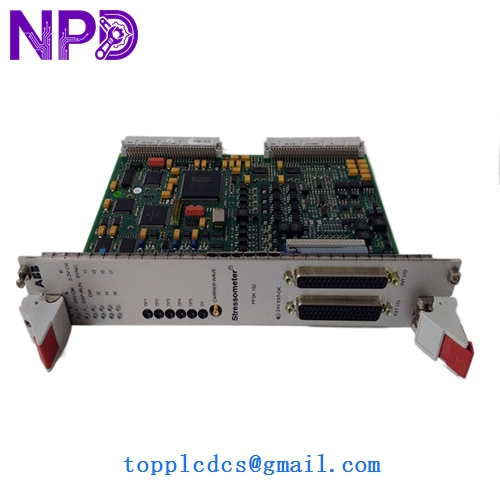

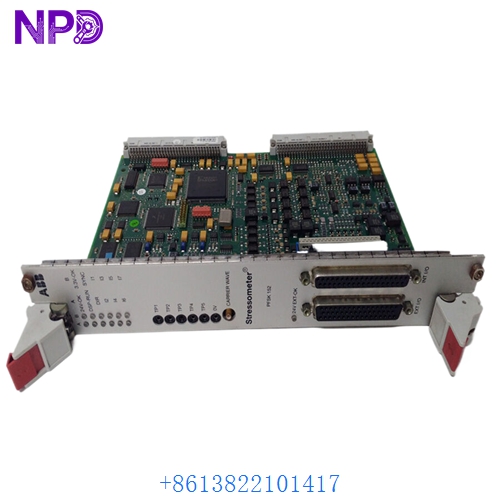

ABB PFSK152 3BSE018877R2 3BSC980006R361
ABB PFSK152 3BSE018877R2 3BSC980006R361

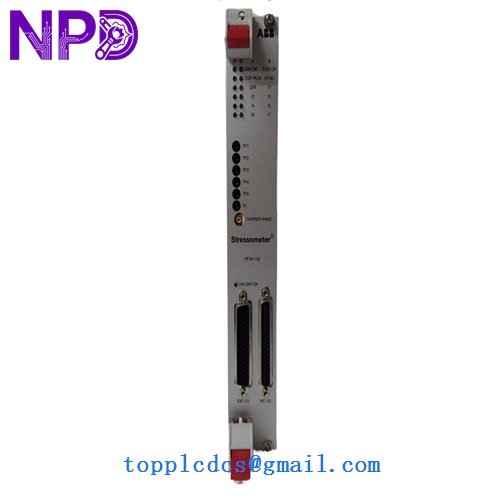

ABB PFSK152 3BSE018877R2
Application Scenarios & Pain Points
The PFSK152 is a critical infrastructure component for the ABB AC 800M and S800 I/O family. It doesn’t just provide “juice”; it provides the clean, isolated power required for sensitive analog and digital I/O modules to communicate with the controller. The biggest pain point with the PFSK152 is thermal fatigue. Because these modules often run 24/7 in high-density cabinets, the internal voltage regulation circuits can drift over time. This leads to “Internal Bus Errors” where the I/O modules appear to be failing, but the root cause is actually the PFSK152 providing unstable voltage.
Typical Application Scenarios:
- Chemical Processing Plants Providing redundant power to S800 I/O clusters controlling hazardous material valves.
- Oil & Gas Refineries Powering remote I/O stations located in harsh environment cabinets.
- Power Generation (DCS) Integrated into Symphony Plus or 800xA systems for turbine and boiler control.
- Pulp & Paper Mills Managing the logic power for high-speed paper machine section controllers.
Case Study: The “Flickering” I/O Cluster
Background: A paper mill in Scandinavia reported that an entire rack of 16 I/O modules was “dropping out” for 2–3 seconds every time a large motor in the plant started up.
Problem: We diagnosed the PFSK152 (3BSE018877R2) and found that its “Holdup Time” (the ability to maintain voltage during a dip) had degraded. When the large motor caused a momentary voltage sag in the plant, the aging PFSK152 couldn’t bridge the gap, causing the I/O bus to reset.
Solution: We replaced the PFSK152 with a fresh unit and added a dedicated ABB power filter to the input line.
Result: – Stability Restored: The I/O dropouts ceased entirely.
- Improved Diagnostics: The new unit provided a clear “Power OK” signal to the DCS, allowing for better monitoring.
- Engineer’s Insight: “In an S800 system, the PFSK152 is your first line of defense. If your 24V supply is noisy, your analog signals will be garbage. Replace these units every 7–10 years to stay ahead of the curve.”
Compatible Replacement Models
The PFSK series has several variations. The 3BSE018877R2 is the specific hardware revision.
| Original Model | Replacement Model | Compatibility | Note |
|---|---|---|---|
| PFSK152 | 3BSE018877R2 | ✅ Exact Match | Standard revision. |
| PFSK152 | 3BSE018877R1 | ✅ Compatible | Earlier revision; usually interchangeable. |
| PFSK151 | PFSK152 | ⚠️ Software | Check current requirements; 152 is typically higher capacity. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation | Quick Check | Action |
|---|---|---|---|---|
| “FAULT” LED Red | Internal HW Failure | ✅ High | Measure output voltage at the bus pins. | Replace PFSK152 module. |
| I/O Modules “Module Error” | Unstable 24V Bus | ✅ High | Check for AC ripple on the DC output. | Replace PSU to prevent module damage. |
| No Power to I/O | Blown Input Fuse | ✅ High | Check the 24V DC input source. | Verify wiring and external breakers. |
| Redundancy Alarm | Dual-Feed Failure | ⚠️ Med | Check if both input power sources are active. | Fix the failed input supply line. |
❗ Pro Tip: The Redundancy Jumpers
When installing the PFSK152, ensure the baseplate jumpers are correctly configured for your power mode. If you are using dual power feeds for redundancy but the jumpers are set to “Simplex,” the module may report a “Power Failure” even when it is working perfectly.
Handling & Installation:
- Hot Swapping: In most S800 configurations, the PFSK152 can be hot-swapped if a redundant partner is present. However, always verify the system status in the 800xA Engineer Station before pulling a module.
- Mounting: Ensure the module is fully seated on its MTU (Module Termination Unit). If the locking screws aren’t tight, vibration can cause arcing on the high-current DC pins.
- Cleanliness: Dust buildup on the ventilation slots of the PFSK152 is a leading cause of premature failure. Ensure your cabinet filters are replaced regularly.
