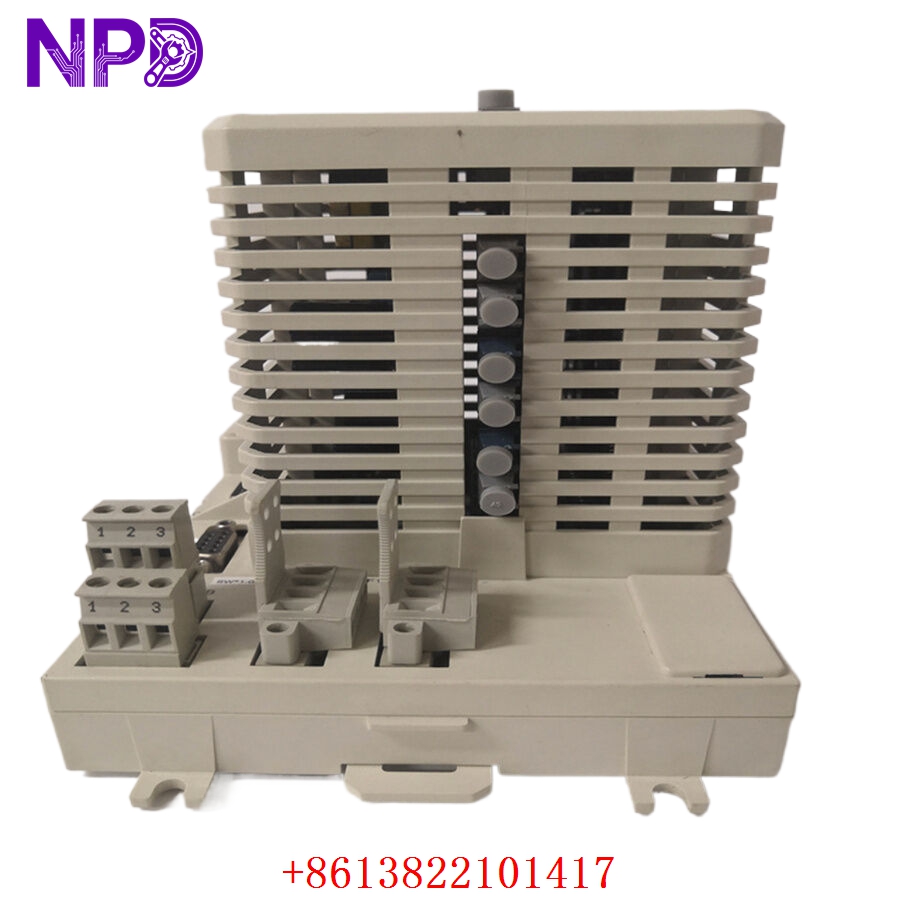

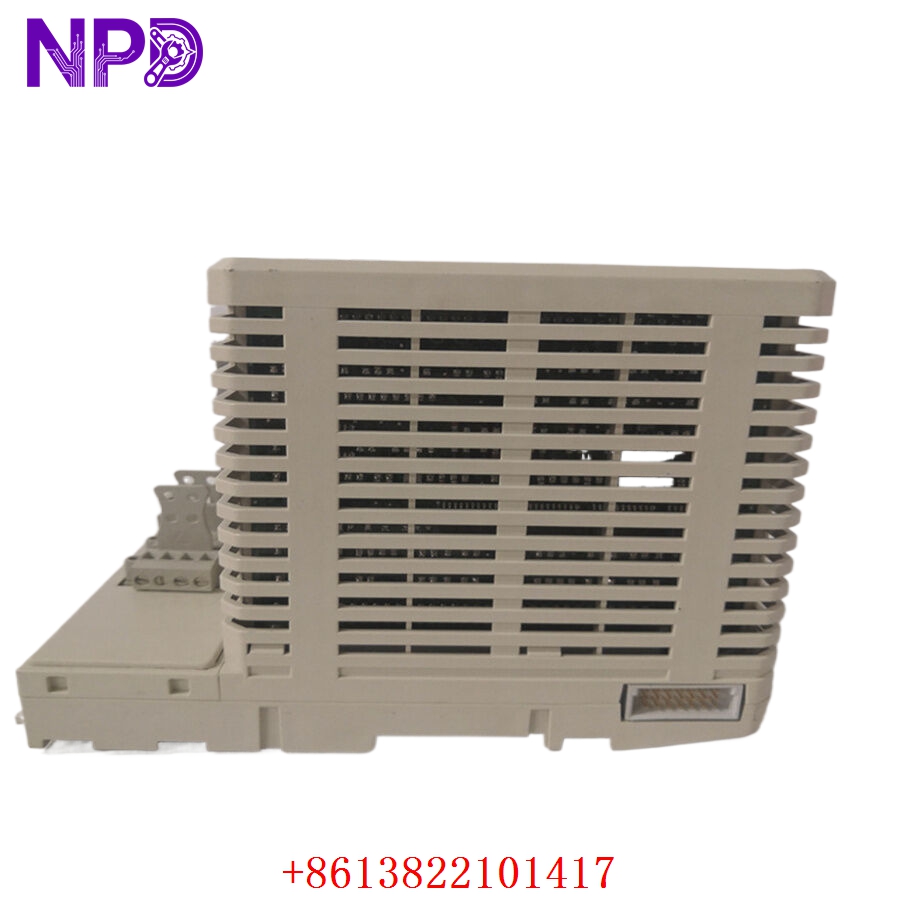

ABB PM825 (3BSE010796R1) Processor Unit

Description

Model: PM825 (3BSE010796R1)

· Brand: ABB

· Series: AC 800M Controller Series

· Core Function: ⚙️ High-performance process controller for distributed control systems (DCS)

· Product Type: 📟 Central Processing Unit (CPU) Module

· Key Specs: 🛠️ Modular design, high processing speed, redundant communication capabilities

• Processor Performance: Optimized for real-time control logic and PID loop execution
• Memory: Integrated RAM with flash storage for application and configuration
• Communication: Dual Ethernet ports for Control Network (CN) and support for ModuleBus
• Redundancy: Fully supports CPU redundancy (Master/Backup configuration)
• Diagnostics: Comprehensive LED status indicators (RUN, FAIL, BATT, etc.)
• Operating Temp: 0 °C to 55 °C
• Compatibility: Works within the ABB Ability™ System 800xA environment

Application Scenarios & Engineering Insights

The PM825 is a key processor in the AC 800M family, widely used in critical process industries. A common challenge during replacement is the Firmware Version Mismatch. If you swap a failed PM825 with a replacement that has a different firmware version, the controller may refuse to synchronize with the existing redundant CPU or the I/O network. Always use the ABB Control Builder software to verify the firmware version of your current unit before finalizing the replacement.

Typical Use Cases:

1. Chemical Processing – Sequence Control

   Executing complex batch control logic where high reliability is essential.

2. Energy – Power Distribution

   Providing high-speed processing for electrical grid control and monitoring.

3. Manufacturing – Production Line Integration

   Acting as the primary controller for large-scale, automated production sequences.

Troubleshooting Pro-Tip:

When the “FAIL” LED is lit, it is often not the processor itself, but a ModuleBus communication fault. Before pulling the CPU, check if any of your I/O modules on the local ModuleBus have a hardware fault. If a single I/O module “locks up” the bus, the PM825 will often report a general CPU failure. Use the diagnostic log in Control Builder to pinpoint the exact source of the fault.

Compatible Replacement Models

Note: Since the PM825 is a central controller, stick to the exact model to ensure your application project is compatible. Any move to a higher-end CPU like the PM86x requires a thorough review of your CPU utilization and memory maps.

Troubleshooting Quick Reference

Safety Warning: Always perform a backup of your project file before performing any hardware maintenance on the controller. In redundant systems, ensure the controller is in “Maintenance Mode” (if applicable) to avoid an accidental process trip when removing the module.
