Description
Product Specifications
- Origin: Switzerland
- Weight: 2.87 lbs (1.30 kg)
- Dimensions: 9.2 x 5.1 x 2.2 inches
- Series: AC 800PEC / UNITROL 6000
- Main Processor: High-performance RISC processor with integrated FPGA for fast logic execution.
- Communication: Integrated fiber optic (S800 I/O) and RS-232/485 serial interfaces.
- Base Part Number: 3BHE014070R0101
- Sub-Assembly / Firmware Card: 3BHE014071P201
The ABB PPC905AE101 is a specialized high-speed controller module that serves as the “brain” of the AC 800PEC system. It is predominantly used in power electronic applications such as static excitation systems (UNITROL) and high-power rectifiers. The PPC905 combines the flexibility of a general-purpose processor with the speed of an FPGA, allowing it to manage complex mathematical algorithms for power conversion alongside millisecond-level protection logic. This module is designed to sit in a dedicated subrack where it coordinates the data flow between high-level plant control and the localized gate-firing units of the power converters.

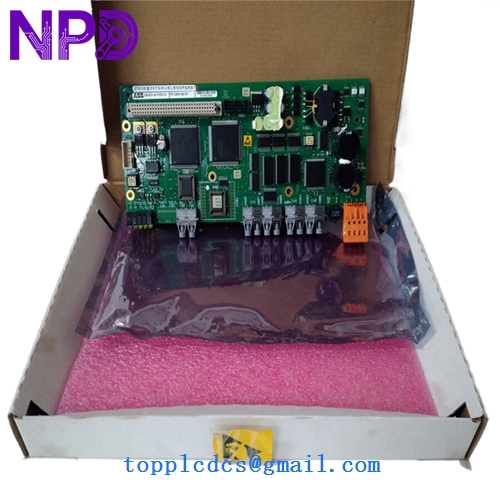

ABB PPC905AE101 3BHE014070R0101 3BHE014071P201

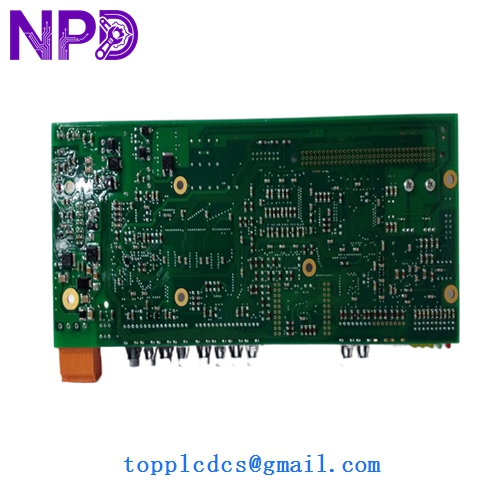

ABB PPC905AE101 3BHE014070R0101 3BHE014071P201
ABB PPC905AE101 3BHE014070R0101 3BHE014071P201
Model Comparison: PPC905AE101 vs. Similar Models
The PPC905AE101 is a specific configuration of the PPC905 family. It is often distinguished from the PPC907 series by its optimized I/O throughput and specific memory allocation tailored for UNITROL 6000 excitation control. While the base hardware 3BHE014070R0101 remains consistent, the inclusion of the 3BHE014071P201 sub-component identifies a specific hardware/software revision level that supports enhanced diagnostic reporting and modernized communication protocols. Compared to the older PPC902 modules, the 905 series offers significantly higher processing power and more robust electromagnetic compatibility (EMC) features, making it the standard for current-generation power electronic control.
Operational Guidelines
- Insertion and Removal: The PPC905AE101 features high-density backplane connectors. Always use the injector/extractor handles to ensure the pins engage or disengage straight; uneven force can lead to bent pins and permanent subrack damage.
- Firmware Synchronization: The P201 designation often refers to a specific logic version. If replacing a module, ensure the new unit has the identical P-suffix, or use the ABB PEC Tool software to flash the correct application firmware before bringing the system online.
- Fiber Optic Integrity: Clean all optical ports with an approved lint-free swab before connecting the fiber links. Contamination in the S800 I/O or communication ports is the leading cause of “Link Fail” and “Jitter” errors in the AC 800PEC environment.
- Thermal Management: Ensure the module is properly seated to allow for correct airflow through the subrack. The PPC905 generates significant heat during high-speed calculations; if the “TEMP” diagnostic warns of high values, check the cabinet’s cooling fans and filters immediately.
