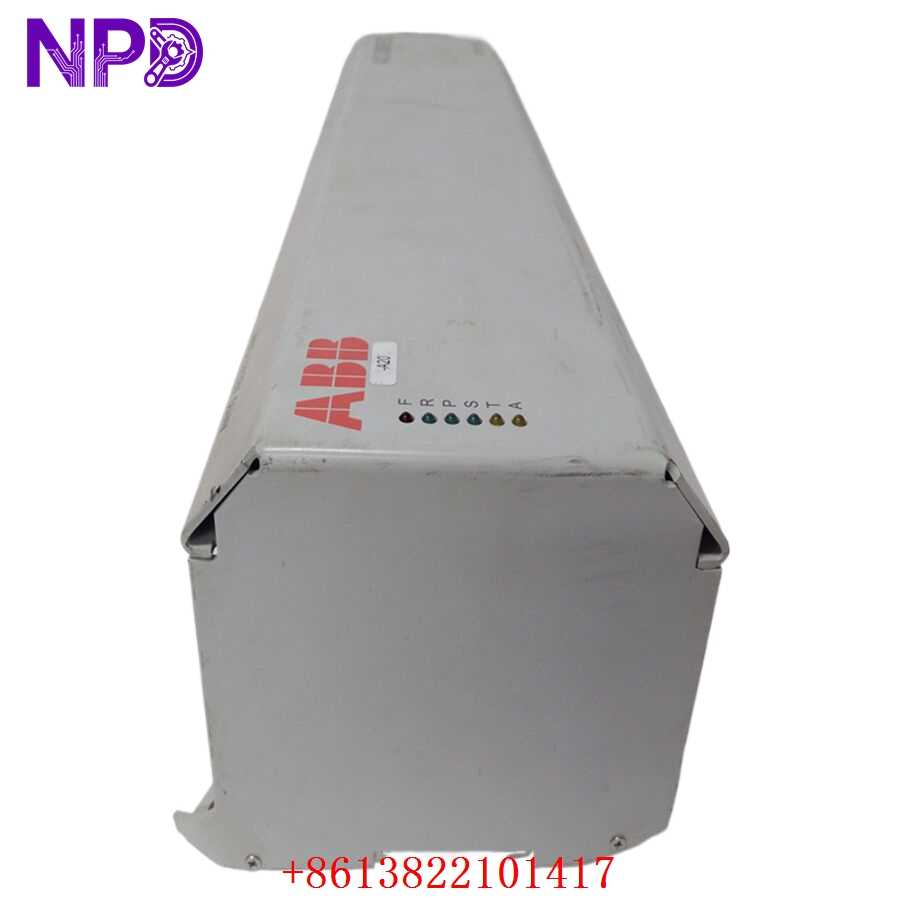

ABB PPD113 PPD103B101 3BHE020455R0101 3BHE023784R2630 | AC 800PEC Power Processing Unit

Description

• Model: PPD113 (Hardware: PPD103B101)
• Part Number: 3BHE020455R0101 / 3BHE023784R2630
• Brand: ABB (Switzerland)
• Series: AC 800PEC / UNITROL 6000 Excitation Systems
• Core Function: High-performance control and processing unit for power electronics converters
• Product Type: Power Processing Unit (Processor Module)
• Key Specs: Real-time control Fiber optic communication High-speed FPGA/CPU

• Architecture: Based on the AC 800PEC controller platform, combining high-speed FPGA for fast control loops and a CPU for slow control tasks.
• Processing Power: Designed for sub-microsecond control cycle times required in power electronics.
• Interfaces:
  • Multiple Optical Ports (SFP/Fiber) for high-speed I/O and communication.
  • Ethernet ports for high-level DCS communication and tool access.
  • Dedicated synchronization inputs/outputs.
• Application Logic: Typically used in UNITROL 6000 excitation systems or MEGATROL power starter/excitation units.
• Voltage Supply: 24 VDC (Internal regulation for processor logic).
• Cooling: Passive heat sink (requires controlled airflow within the cabinet).

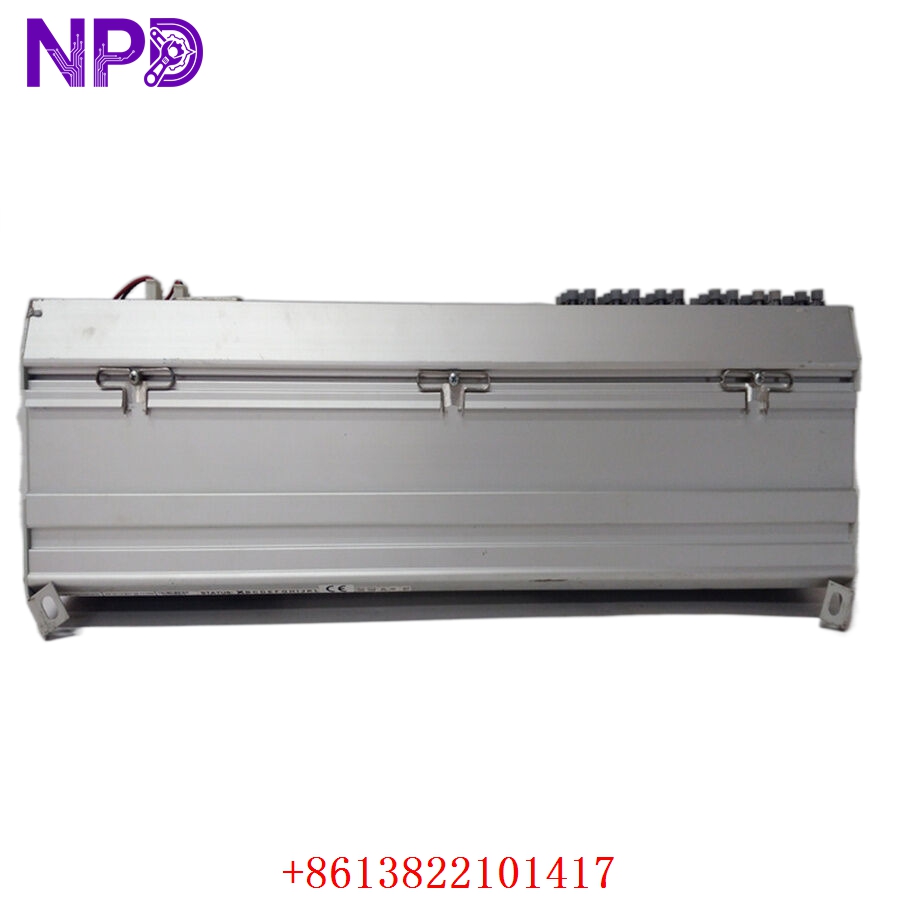

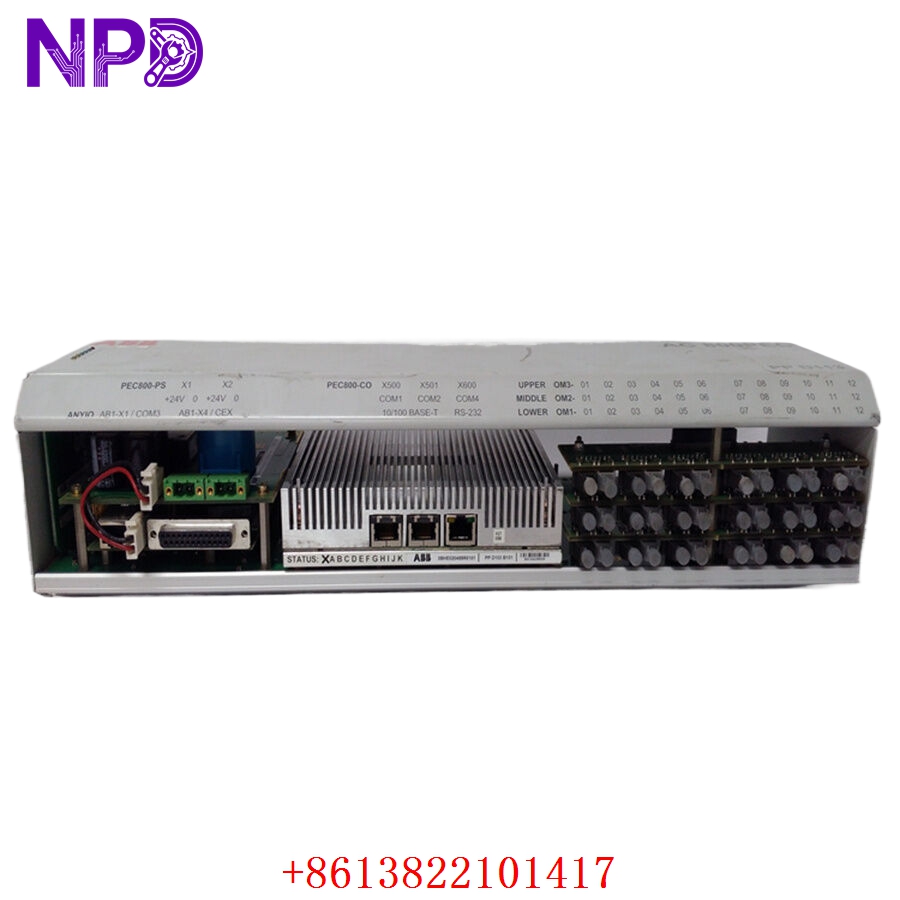

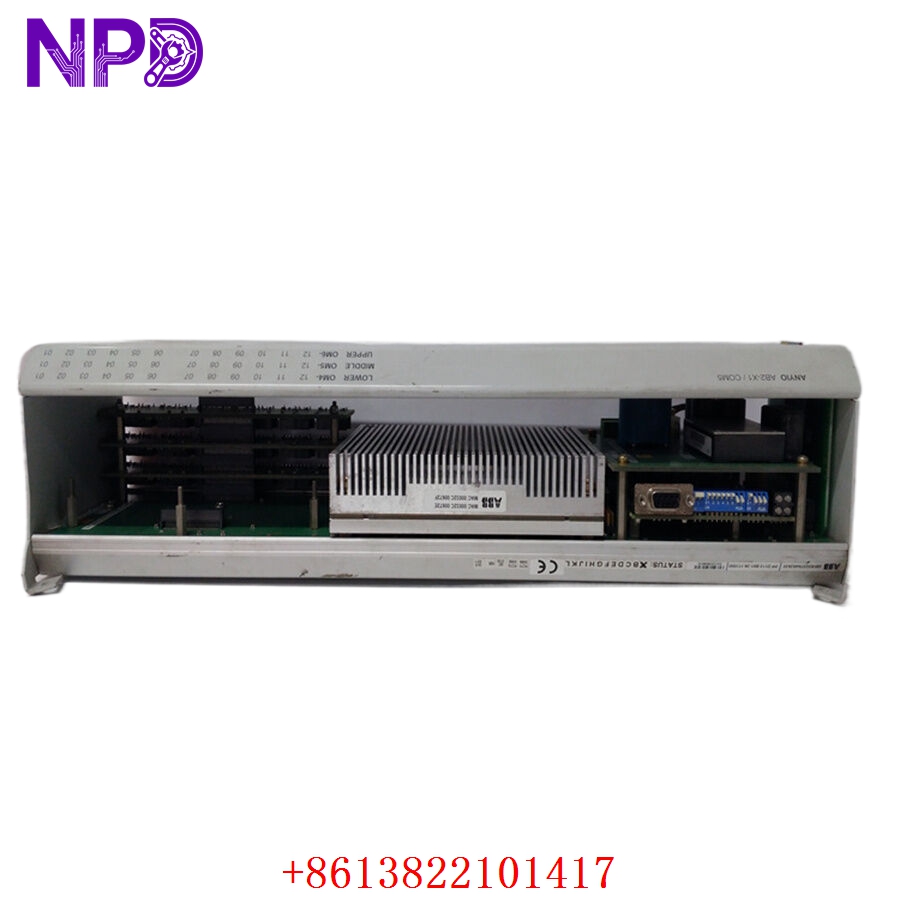

PPD113 PPD103B101 3BHE020455R0101 3BHE023784R2630

PPD113 PPD103B101 3BHE020455R0101 3BHE023784R2630

PPD113 PPD103B101 3BHE020455R0101 3BHE023784R2630

PPD113 PPD103B101 3BHE020455R0101 3BHE023784R2630

Application Scenarios & Pain Points

The PPD113 is the “brain” of ABB’s high-power converter systems, specifically within the AC 800PEC family. It is most commonly found in the UNITROL 6000 excitation systems used in massive hydroelectric or thermal power plants. The primary pain point is the critical nature of this module: if the PPD113 fails, the generator excitation fails, leading to a complete “Generator Trip” and an immediate loss of grid power. Because this module handles extremely fast switching frequencies for IGBTs or Thyristors, any “jitter” in the processing can lead to physical damage to the power bridge.

Typical Application Scenarios:

1. Power Generation – Excitation Systems

   Regulating the field current of large synchronous generators in UNITROL 6000 setups.

2. Static Frequency Converters (SFC)

   Controlling the starting sequence of large gas turbines (MEGATROL systems).

3. High-Power Rectifiers

   Managing high-current DC supplies for aluminum smelting or chemical electrolysis.

4. Wind Power

   Full-scale converter control for offshore wind turbines using the AC 800PEC platform.

Case Study: The “Dark” Hydro Plant

Background:

A hydroelectric dam in Northern Europe relied on a redundant UNITROL 6000 system. During a routine maintenance window, one of the two PPD113 modules failed to reboot due to an internal Flash memory corruption.

The Problem:

The system was running on a “Single Point of Failure” (the remaining healthy module). A second failure would have meant a black-start scenario for the local grid. ABB’s official lead time for a new unit was 12 weeks.

The Solution:

We provided a fully tested 3BHE020455R0101 from our surplus stock. We verified the fiber optic link integrity and the boot sequence before shipping via Express.

The Result:

The module was installed and synchronized with the healthy controller within 72 hours. Redundancy was restored, and the plant avoided millions in potential fines for grid instability.

SOP Quality Transparency

Processing units like the PPD113 are sophisticated computers. Testing must go beyond “powering on.”

1. Fiber Optic Signal Audit:

   The fiber ports are the most vulnerable part of the PPD113. We use an optical power meter to ensure the transmitters (TX) are firing at the correct intensity and the receivers (RX) have full sensitivity. Dirty ports are cleaned with specialized fiber-swabs.

2. Full System Boot Test:

   We seat the PPD113 in an AC 800PEC test rack.

   • Bootlog Analysis: We monitor the serial console output to ensure the FPGA loads correctly and no “Checksum Errors” appear during memory initialization.
   • Memory Stress Test: We exercise the onboard SDRAM and Flash to verify stability under high-load processing conditions.
3. Communication Link Test:

   We establish an Ethernet connection and verify the module can communicate with ABB’s Control Builder M or PEC Tool software.

4. Voltage Rail Inspection:

   We measure the internal DC-DC converter outputs (1.2V, 3.3V, etc.) to ensure the processor is receiving clean, stable power.

5. Packaging:

   This is a high-value, sensitive electronic board. It is vacuum-sealed in an ESD moisture-barrier bag with desiccant and then placed in a custom-fit, foam-cushioned shipping container.

Technical “Pitfall” Guide

The PPD113 is a “System on a Module.” You cannot simply swap it like a basic I/O card.

1. Firmware Compatibility ❗

   The PPD113 hardware (3BHE020455R0101) is often shipped “blank” or with factory-default firmware. It will not work until the specific application software (UNITROL, MEGATROL, etc.) is loaded.

   The Fix: You must use the ABB PEC Tool to download the firmware and configuration from your backup files or the redundant controller.

2. The “SFP” Module Match:

   The fiber ports use SFP (Small Form-factor Pluggable) transceivers. If you move your old SFP modules to the new PPD113, ensure they are clean.

   The Fix: Use a “one-click” fiber cleaner before re-inserting the fiber cables. 80% of “Comm Faults” after a swap are caused by dust on the fiber tips.

3. Grounding & ESD ❗

   The AC 800PEC platform is extremely sensitive to static.

   The Fix: Always wear a grounded wrist strap when handling the PPD113. A single static spark to the fiber housing or pins can “half-kill” the board, leading to intermittent resets months later.

4. Node ID / Rotary Switches:

   Check if the PPD113 has physical DIP switches or rotary dials for setting the station address.

   The Fix: Match these settings exactly to the module you are replacing before powering up the rack.

Troubleshooting Quick Reference

Pro Tip: If you are performing a “Hot Standby” swap, ensure the “Master” controller is stable before inserting the new PPD113. Once inserted, the module should automatically begin to synchronize its data with the Master. Watch the LEDs closely—syncing can take up to 2 minutes.
