Description
- Model: ABB REF542plus
- Brand: ABB (Grid Automation)
- Series: REF542plus
- Core Function: Combined protection, control, measurement, and monitoring for MV air-insulated or gas-insulated switchgear.
- Product Type: Intelligent Electronic Device (IED) / Protection Relay
- Key Specs: Configurable protection functions, local HMI, extensive communication protocol support (IEC 61850)
- Protection Functions: Overcurrent, earth fault, voltage protection, thermal overload, and more
- Measurement: Three-phase currents, voltages, power, frequency, and energy
- Control: Local and remote control of switchgear (breakers, disconnectors)
- Communications: IEC 61850, Modbus RTU/TCP, SPA-bus, DNP 3.0
- Display: Integrated graphical LCD for primary/secondary process values
- Input/Output: Configurable binary inputs and outputs (flexible matrix logic)
- Operating Temperature: -10°C to +55°C
- Auxiliary Power: Wide range DC (e.g., 24–220 V DC)

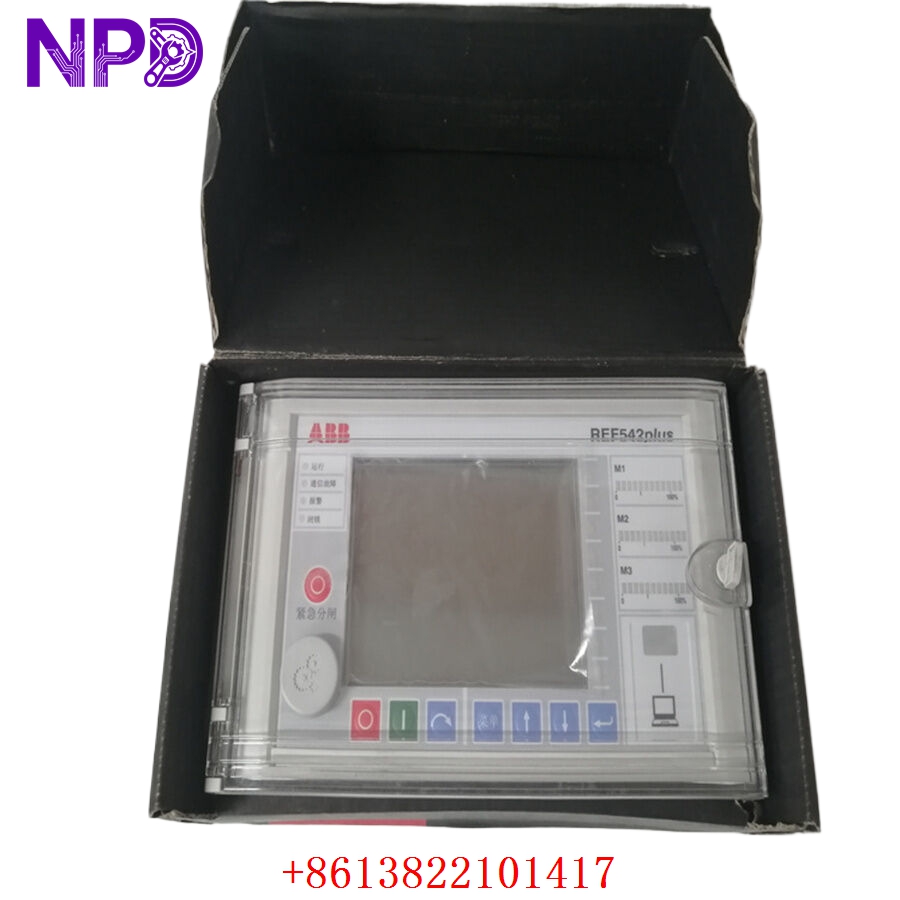

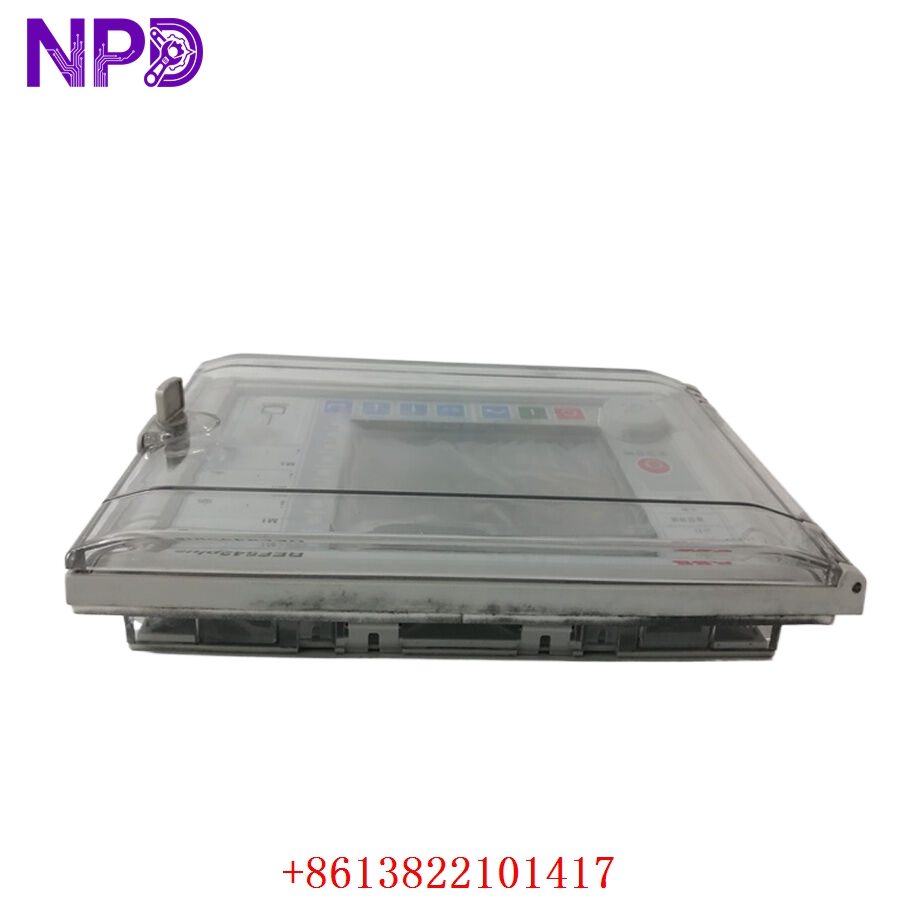

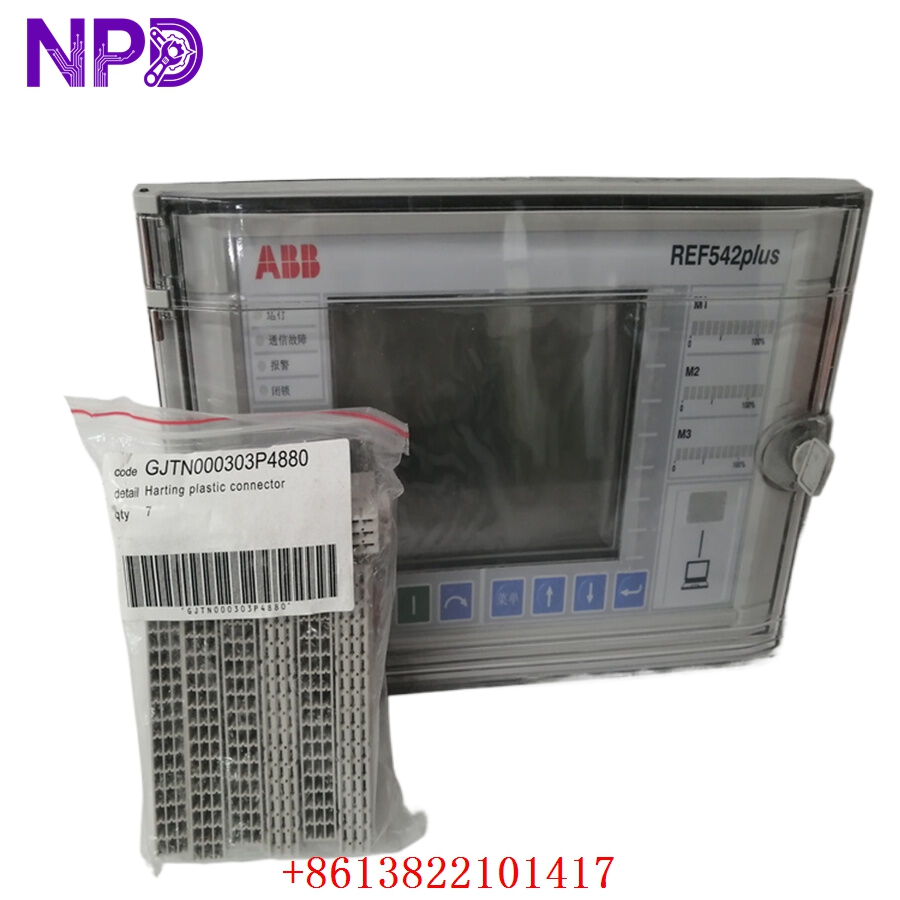

ABB REF542PLUS
Application Scenarios & Engineering Pain Points
The REF542plus is a staple in aging distribution substations. The primary engineering challenge is migration and backward compatibility. As these units reach end-of-life, finding a drop-in replacement that maintains the original cabinet wiring and specific protection logic is difficult. Many sites suffer from “logic drift”—where the original software configuration files have been lost over time, making it nearly impossible to replicate the specific tripping characteristics required for old MV switchgear.
Typical Application Scenarios:
- Utility Distribution – MV Substations Provides comprehensive protection for overhead lines and underground cables.
- Industrial Plants – Motor Protection Used for controlling and protecting large induction motors via flexible I/O logic.
- Renewable Energy – Grid Interconnection Ensures safe disconnection of wind/solar farms in case of grid faults.
Case Study: Legacy Substation Modernization A regional utility provider faced the failure of three REF542plus units in a mission-critical substation. The switchgear was legacy, and a complete system upgrade would have necessitated a multi-week outage. We provided tested, refurbished units that matched their specific hardware revision. By using the customer’s backed-up .s5d configuration files, our team was able to upload the exact protection logic. The units were installed and calibrated within 24 hours, avoiding a massive, multi-million dollar infrastructure overhaul.
Troubleshooting Quick Reference
Don’t let a “Relay Fail” alarm keep your power grid offline. Most “failures” in these units are related to auxiliary power or communication synchronization.
| Failure Symptom | Possible Cause | Quick Check Method | Recommended Action |
|---|---|---|---|
| “Terminal Fail” LED | Internal Hardware Fault | Check status in configuration software | Perform hard reset; if persists, replace |
| No HMI Display | Auxiliary Power Loss | Measure DC input at terminals | Verify DC power supply & fuses |
| Communication Timeout | Protocol/Bus Fault | Check comm module integrity | Verify baud rate & bus termination |
| Erroneous Trip | Logic/Settings Drift | Audit protection settings file | Re-upload valid configuration file |
Engineer’s Note: ❗ Crucial Advice: Always perform a full backup of the configuration and parameter files (.s5d) before attempting any hardware changes. The REF542plus is highly configurable; without the original logic file, you are essentially looking at a paperweight. If you are replacing a unit, ensure your HMI/communication module is moved from the old unit, as these are often configured for specific plant network addresses.
