Description
- Model: SA811F
- Part Number: 3BDH000013R1
- Brand: ABB
- Series: Freelance / AC 800F
- Core Function: System power supply for the AC 800F controller and I/O modules
- Product Type: Power Supply Unit (PSU)
- Key Specs: 24V DC Input Isolated Outputs Redundancy Support
- Input Voltage: 24 V DC (nominal)
- Input Range: 19.2 V DC to 30 V DC
- Power Consumption: Approx. 45 W at full load
- Efficiency: > 80%
- Redundancy: Supports dual-redundant configuration via the AC 800F backplane
- Diagnostics: Integrated monitoring for input and output voltage levels
- Status Indicators:
- Power OK: Green LED
- Fault: Red LED
- Protection: Over-voltage and short-circuit protection with automatic recovery
- Mounting: Plugs directly into the AC 800F rack system

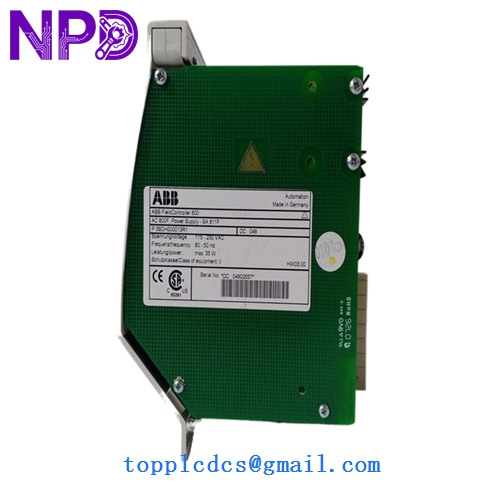

ABB SA811F 3BDH000013R1

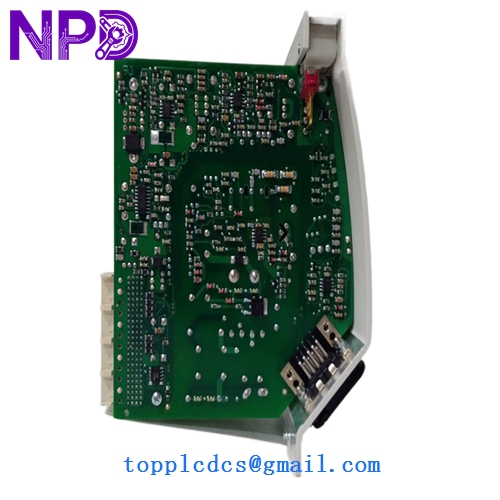

ABB SA811F 3BDH000013R1

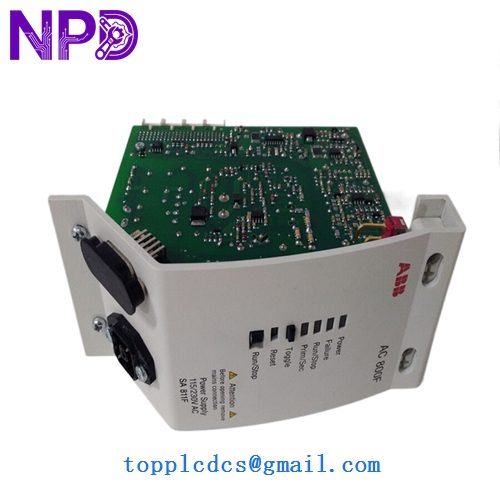

ABB SA811F 3BDH000013R1
ABB SA811F 3BDH000013R1
Application Scenarios & Pain Points
The SA811F (3BDH000013R1) is the primary power interface for the ABB Freelance AC 800F DCS controller. It is responsible for providing stabilized internal power to the CPU and the communication modules. In large-scale industrial plants, these are almost always used in pairs for redundancy.
The biggest pain point with the SA811F is transient surges. While the unit is robust, sudden spikes on the 24V DC plant bus (often caused by large motor starts or battery charger failures) can degrade the internal DC-DC converter. Over time, this leads to “Silent Restarts” where the controller reboots for no apparent reason, often being mistaken for a software bug.
Typical Application Scenarios:
- Chemical & Pharmaceutical Batching Providing stable power to AC 800F controllers managing precise ingredient dosing.
- Water & Wastewater Management Ensuring 24/7 uptime for distributed control nodes in remote pumping stations.
- Food & Beverage Processing Reliable logic power for pasteurization and filling lines where a power glitch results in product waste.
- Boiler & Burner Control Acting as a high-reliability power source for safety-critical combustion logic.
Case Study: The “Redundancy Trap”
Background: A plant in Southeast Asia was running a redundant AC 800F setup. One morning, the entire controller went offline, even though they had two power supplies.
Problem: We inspected the SA811F modules and found that the “Primary” module had actually failed six months prior, but the “Fault” contact wasn’t wired to an alarm. The system was running solely on the “Secondary” module until it eventually failed due to age, leading to a total plant trip.
Solution: Provided two fresh SA811F 3BDH000013R1 modules and assisted the client in configuring the software alarms to monitor the status of both PSUs.
Result:
- Uptime Guaranteed: The system now provides an immediate alert if one supply fails.
- Safety Restored: The plant avoided a second unpredicted shutdown.
- Engineer’s Insight: “Redundancy only works if you monitor it. On the SA811F, if that Green LED isn’t solid, you are at risk. Always wire the fault contacts to your HMI.”
Compatible Replacement Models
The SA811F is a specialized unit for the AC 800F rack.
| Original Model | Replacement Model | Compatibility | Note |
|---|---|---|---|
| SA811F | 3BDH000013R1 | ✅ Exact Match | Current standard revision. |
| SA811F | 3BDH000013R2 | ✅ Compatible | Newer manufacturing revision; interchangeable. |
| SA811F | SD811 | ❌ Incompatible | SD811 is for the S800 I/O series; different form factor. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation | Quick Check | Action |
|---|---|---|---|---|
| Power LED Off | Input Fuse / 24V Fail | ✅ High | Check 24V DC at the rack input terminals. | Restore power or replace module. |
| Fault LED Red | Internal DC-DC Fail | ✅ High | Measure internal bus voltage if possible. | Replace SA811F module. |
| CPU Error Alarms | Voltage Ripple | ⚠️ Med | Check 24V DC supply with an oscilloscope. | Check plant battery charger / PSU. |
| Module Not Detected | Backplane Pin Issue | ⚠️ Med | Inspect pins on the back of the SA811F. | Clean pins and reseat the module. |
❗ Pro Tip: Reseating the Module
If you get a “Power Supply Error” but the LEDs look green, try pulling the module out and pushing it back in firmly. The AC 800F backplane connectors can occasionally develop high resistance due to vibration or oxidation. A simple reseat can often clear a “False Fault.”
Handling & Installation:
- Hot-Swap Safety: In a redundant configuration, you can swap one SA811F while the system is running. However, ensure the remaining module is healthy (Green LED) before pulling the faulty one.
- Torque: If your rack uses screw-down modules, do not over-tighten. The plastic housing can crack under excessive pressure.
- Cooling: Ensure there is at least 1U of space or adequate airflow above the AC 800F rack. Heat is the number one killer of the SA811F’s internal components.
