Description
- Model: SA9923a-E
- Part Number: HIEE450964R0001
- Brand: ABB (Switzerland)
- Function: DC/DC or AC/DC Power Conversion for Control Logic
- Series: SAMI / MEGADRIVE / High-Power Electronics
- Output Stability: Engineered for low-ripple voltage output to ensure the accuracy of analog-to-digital converters and microprocessor timing.
- Redundancy Interface: Features built-in isolation diodes, allowing multiple SA9923a-E units to be connected in parallel for redundant N+1 configurations.
- Input Protection: Integrated surge suppression and over-voltage protection to shield internal logic from fluctuations in the main station power.
- Status Monitoring: Onboard “DC OK” dry contact relays and LED indicators for remote and local health monitoring.
- Heat Dissipation: Designed with an efficient heat-sink chassis for convection cooling within enclosed control cabinets.
- High Galvanic Isolation: Maintains strict isolation between the input source and the output control rails to prevent ground loops.

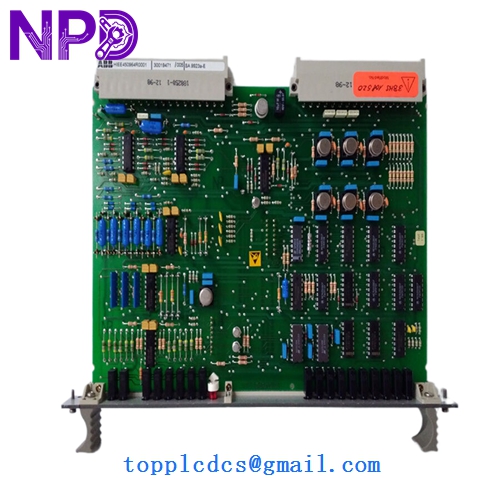

ABB SA9923a-E HIEE450964R0001

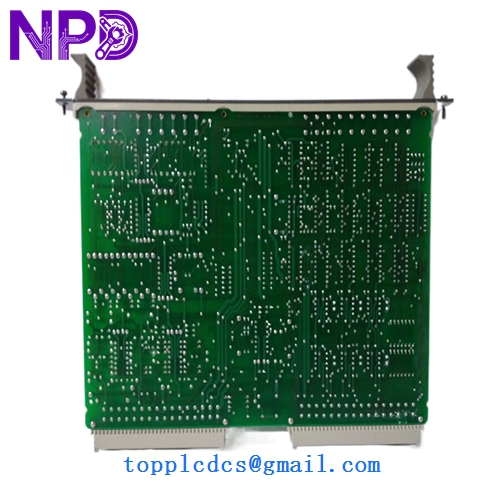

ABB SA9923a-E HIEE450964R0001

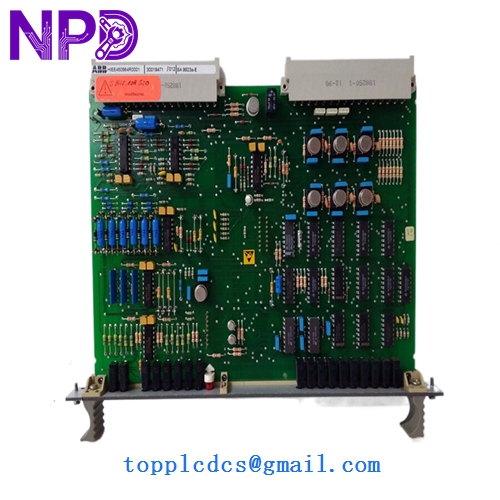

ABB SA9923a-E HIEE450964R0001

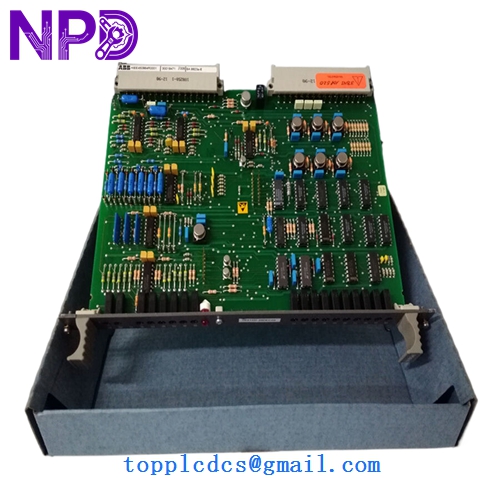

ABB SA9923a-E HIEE450964R0001
Installation & Configuration Guide
Phase 1: Pre-Installation (Preparation)
⚠️ DANGER: Electrical Shock Hazard: Even after power is disconnected, internal capacitors on the SA9923a-E can hold significant charge for several minutes.
- Safety Buffer: Wait at least 5 minutes after de-energizing the cabinet before touching the module terminals.
- Voltage Check: Verify the input supply (typically 110V/220V AC or 110V/220V DC) matches the module’s nameplate ratings.
- Terminal Integrity: Check the wiring harness for signs of brittle insulation or heat-discolored copper.
Phase 2: Removal & Replacement
- Labeling: Mark all terminal connections. Swapping input and output wires can cause permanent damage to the control backplane.
- Mounting: Unscrew the module from the chassis. Note the ground strap location; a solid ground connection is essential for the module’s EMI filtering to function correctly.
- Clean Airflow: Ensure the area around the new module is free of dust or obstructions that could impede natural convection cooling.
Phase 3: Commissioning
- Cold Start: Restore power to the input side.
- Multimeter Verification: Before plugging in the sensitive logic boards, measure the output terminals to ensure the DC voltage is within the exact specified range (e.g., +24V DC, ±15V DC).
- Load Test: Connect the control load and verify that the “Status” LED remains green and no “Undervoltage” alarms are triggered on the HMI.
Customer Cases & Industry Applications
Case 1: Eliminating “Ghost” Faults in a Pumping Station A municipal water station using an ABB SAMI drive experienced frequent, unexplained processor resets. Troubleshooting revealed the original SA9923a-E had “tired” electrolytic capacitors that could no longer filter out ripple during motor starts. Replacing the unit with a New Surplus HIEE450964R0001 provided clean power, immediately stopping the resets and restoring 24/7 reliability.
Case 2: Emergency Recovery from a Cabinet Fire A small wiring fire in a paper mill’s drive cabinet destroyed the control power section. The mill was losing $10,000 per hour in production. Because the SA9923a-E was an older model, ABB factory lead times were over 12 weeks. We provided a New Surplus unit from our Xiamen warehouse within 48 hours, allowing the mill to rebuild the cabinet and restart production in record time.
Frequently Asked Questions (FAQ)
Q: Is the SA9923a-E interchangeable with the standard SA9923a? A: No. The “-E” revision typically denotes an “Enhanced” or specific environmental/electrical rating. You should always replace like-for-like (HIEE450964R0001) to ensure the internal protection thresholds and redundancy logic match your existing system.
Q: Does this module require an external cooling fan? A: It is designed for natural convection. However, if your cabinet ambient temperature exceeds 50°C, adding a cabinet fan is highly recommended to prolong the life of the capacitors.
Q: Why choose “New Surplus” over “Refurbished”? A: Power supplies are “wear items.” Refurbished units often have original capacitors that have already seen years of heat, making them prone to failure shortly after installation. New Surplus ensures you are getting the full design life of all internal components.
Q: How do I test the redundancy relay? A: With the module powered, use a multimeter on “Continuity” mode across the status relay terminals. If the relay is closed, the module’s internal health check is successful.
