Description

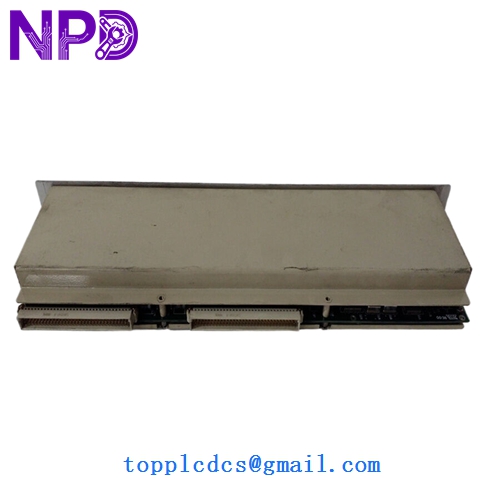

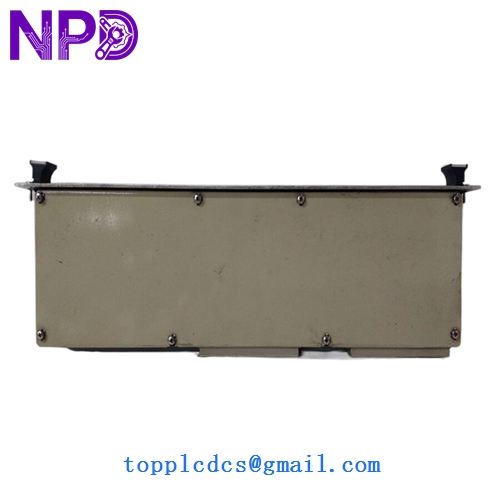

- Model: SIOC086406-002
- Brand: ABB (Switzerland)
- Function: Signal Interface and Logic Conditioning
- Application: SAMI, MEGADRIVE, and specialized High-Power Inverters
- Signal Processing: Handles low-voltage logic signals and conditions them for transmission across long internal cabinet cables, minimizing electromagnetic interference (EMI).
- Isolation: Features optical or galvanic isolation barriers to prevent power-stage transients from feeding back into the sensitive central processing unit (CPU).
- Diagnostic LEDs: Includes onboard indicators for monitoring input/output activity and board health status.
- Multi-Channel Support: Typically manages a specific set of digital or pulse-type I/O required for thyristor or IGBT timing.
- Robust Construction: Built with industrial-grade components and a high-quality PCB substrate to withstand the heat and vibration common in power electronics enclosures.
ABB SIOC086406-002
ABB SIOC086406-002
ABB SIOC086406-002
Installation & Configuration Guide
Phase 1: Pre-Installation (Preparation)
⚠️ DANGER: High Voltage Residuals: Inverters and drives retain lethal DC bus voltages for several minutes after power-off.
- Safety Check: Verify the DC bus voltage is below 50V before opening the control section.
- Cable Labeling: Industrial drives use high-density ribbon cables. Label each cable clearly to ensure they are returned to the correct ports.
- ESD Safety: Use a grounded anti-static wrist strap. The logic chips on the SIOC086406-002 are highly sensitive to static discharge.
Phase 2: Removal & Replacement
- Disconnect Cables: Gently remove the ribbon or fiber-optic cables from the board. Inspect the connector pins for any signs of oxidation or heat damage.
- Unmount the Board: Loosen the retaining screws at the corners of the board. Pull it straight out of the standoffs.
- Visual Comparison: Compare the jumper and DIP switch settings of the old board with the new SIOC086406-002. They must match exactly to ensure proper signal routing.
Phase 3: Commissioning
- Seating: Mount the new board and secure the screws. Ensure all cables are seated firmly and the locking clips are engaged.
- Power-Up: Apply control power first. Check the “Health” or “OK” LEDs on the board.
- Signal Test: Use the drive’s diagnostic menu to verify that the signals passing through the SIOC086406-002 (e.g., speed feedback or start/stop logic) are being registered by the controller.
Customer Cases & Industry Applications
Case 1: Resolving Intermittent Trips in a Gas Compressor A gas compressor station using an ABB MEGADRIVE experienced random “Control Signal Faults” that caused the unit to trip during ramp-up. The issue was traced to a micro-crack in the traces of the aging SIOC086406-002 board. By replacing it with a New Surplus unit, the facility eliminated the ghost faults and avoided a costly multi-day outage.
Case 2: Emergency Response for a Desalination Plant A desalination plant in the Middle East faced a shutdown when a signal board failed due to high ambient heat and humidity. With ABB factory lead times for legacy parts being months, the plant sourced a SIOC086406-002 from our strategic inventory. The part was delivered via express air freight and installed in 48 hours, restoring water production.
Frequently Asked Questions (FAQ)
Q: Is the SIOC086406-002 interchangeable with -001? A: No. The -002 suffix often denotes a specific revision or signal configuration. Using the wrong revision can result in incorrect logic levels or timing errors. Always match the full part number.
Q: Does this board require firmware programming? A: Generally, the SIOC086406-002 is an interface board that does not host user-level software, but it may have “firmware” embedded in PLDs (Programmable Logic Devices). Our New Surplus units come with factory-default logic ready for operation.
Q: Why choose “New Surplus” over “Refurbished”? A: Signal interface boards are critical for timing. Refurbished boards may have aging capacitors or “tired” opto-couplers that introduce signal delay. New Surplus ensures you are getting original factory-spec timing and component integrity.
Q: Can I replace this while the drive is running? A: Absolutely not. This is a core logic board. Removing it while energized will cause an immediate trip and could potentially damage the main processor or the power stage.
