Description

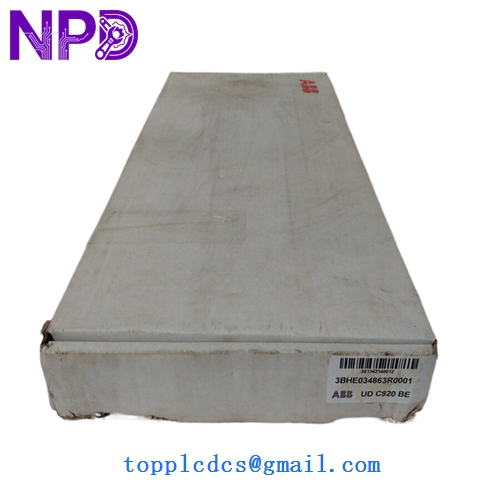

- Model: ABB UDC920BE (3BHE034863R0001)
- Brand: ABB (Switzerland)
- Series: Unitrol 6000 / ACS6000 Series
- Core Function: Central processing and control unit for high-power excitation and drive systems
- Product Type: Controller / Processor Module
- Key Specs: 24 V DC High-speed Fiber Optic Comms Multi-core DSP Architecture
Key Technical Specifications
| Attribute | Specifications |
| Part Number | 3BHE034863R0001 |
| Model Designation | UDC920BE |
| Compatibility | Unitrol 6000 Excitation Systems / ACS6000 Medium Voltage Drives |
| Processor Type | High-performance Digital Signal Processor (DSP) |
| Communication | Integrated Fiber Optic Links (PPCS/DDCS), RS485, Ethernet |
| Input Voltage | 24 V DC (+/- 10%) |
| I/O Interface | High-speed dedicated I/O for pulse-width modulation (PWM) control |
| Diagnostics | Real-time internal monitoring and fault logging |
| Operating Temp | 0°C to +55°C (Forced air cooling required in sub-rack) |
| Firmware Slot | Flash-based memory for system-specific application logic |
Application Scenarios & Pain Points
The UDC920BE is the “nerve center” for ABB’s most powerful excitation systems and medium voltage drives. It is responsible for calculating the firing angles of large thyristor bridges in microseconds. The biggest pain point with this module is Fiber Optic Link Integrity. In high-vibration environments or systems with poor cable management, the fiber ports can become misaligned or scratched, leading to “Drive/Excitation Trip” faults that are notoriously difficult to diagnose. If the UDC920BE fails, the entire power conversion process stops instantly, which in a power plant means a total turbine trip.
Typical Application Scenarios:
- Utility-Scale Power Generation
Acting as the main AVR (Automatic Voltage Regulator) controller in Unitrol 6000 systems for 500MW+ generators.
- Medium Voltage Drives (ACS6000)
Managing complex motor control algorithms for large compressors in LNG plants or main propulsion motors on vessels.
- Static Frequency Converters (SFC)
Controlling the start-up sequence of gas turbines by operating the generator as a motor.
Case Study: The “Intermittent PWM” Mystery
Background: A massive steel mill used an ACS6000 drive to power its main rolling stand.
Problem: The drive was tripping intermittently on “Converter Hardware Fault.” The field team replaced the power modules, but the problem persisted.
Solution: We provided a tested UDC920BE 3BHE034863R0001. Upon installation, it was discovered that the old module’s DSP was failing under high thermal loads, causing jitter in the PWM signals.
Result: The new UDC920BE restored precise timing to the thyristor firing sequence. The rolling mill returned to 24/7 operation, avoiding an estimated $50,000 per hour in production loss.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Change Required | Cost Impact |
| UDC920BE | UDC920BE | ✅ Direct | N/A | 1:1 Replacement | Base |
| UDC920BE | UDC920AE | ⚠️ Limited | Older Revision | Firmware/Fiber speed | -10% |
| UDC920BE | AC 800PEC | ❌ Incompatible | Next-gen Platform | System Overhaul | +400% |
Engineer’s Note: The UDC920BE version is specifically optimized for high-speed fiber communication. If you are trying to replace an “AE” version with a “BE,” you must verify your fiber optic transceiver speeds (MBaud) in the system manual, or the communication handshake will fail.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Spare Relevance | Quick Check | Action |
| LED “F” (Fault) Red | Internal Processor Error | ✅ High | Check fiber link status in the HMI | Replace module |
| No PWM Outputs | Enable Signal Missing | ⚠️ Medium | Verify 24V “Enable” hardwire input | Check safety circuit |
| Fiber Link Error | Dirty/Damaged Optic | ❌ Low | Clean fiber ends with isopropyl alcohol | Replace fiber cable first |
| Unit “Dark” | Power Supply Fail | ❌ Low | Measure 24V DC at the module plug | Check sub-rack power |
❗ Critical Warning: Fiber Optic Handling
When installing the UDC920BE, do not bend the fiber optic cables tighter than a 50mm radius. These modules use high-speed optical data; even a slight “kink” in the cable will cause packet loss, leading to a “Controller Timeout” and a full system shutdown. Always use dust caps when the cables are disconnected.
SOP Quality & Testing Protocol:
We perform a Live Fiber-Loopback Test on every UDC920BE to ensure the DDCS/PPCS communication channels are operating at 100% throughput. The module is loaded into a Unitrol 6000 Test Sub-rack where we simulate high-speed PWM firing patterns for 24 hours. A full Test Certificate documenting the firmware version, MAC address, and thermal stability results is included. Video of the “Healthy” heartbeat LED and fiber port activity is available upon request.
