ABB UFC719AE01 3BHB003041R0101 3BHB000272R0001 | Main Control Unit

Description

• Model: UFC719AE01
• Part Numbers: 3BHB003041R0101 (Main Assembly) / 3BHB000272R0001 (Hardware/Base)
• Brand: ABB (Switzerland)
• Series: AC 800PEC / UNITROL 6000
• Core Function: Central processing and control for high-power semiconductor converters.
• Product Type: Universal Fast Controller (UFC) Module
• Key Specs: Real-time FPGA control Fiber optic I/O High-speed Ethernet

• Processor Architecture: Dual-core processing (FPGA for ultra-fast control loops + RISC CPU for system management).
• Control Cycle: Capable of sub-microsecond internal execution times.
• Communications:
  • Integrated Fiber Optic interfaces for direct control of power modules (IGCT/IGBT).
  • High-speed Ethernet for DCS and tool communication.
• Redundancy: Supports hardware-level hot-standby redundancy configurations.
• Platform: Part of the AC 800PEC (Power Electronics Controller) high-end family.
• Mounting: Standard sub-rack mounting within UNITROL or MEGATROL cabinets.

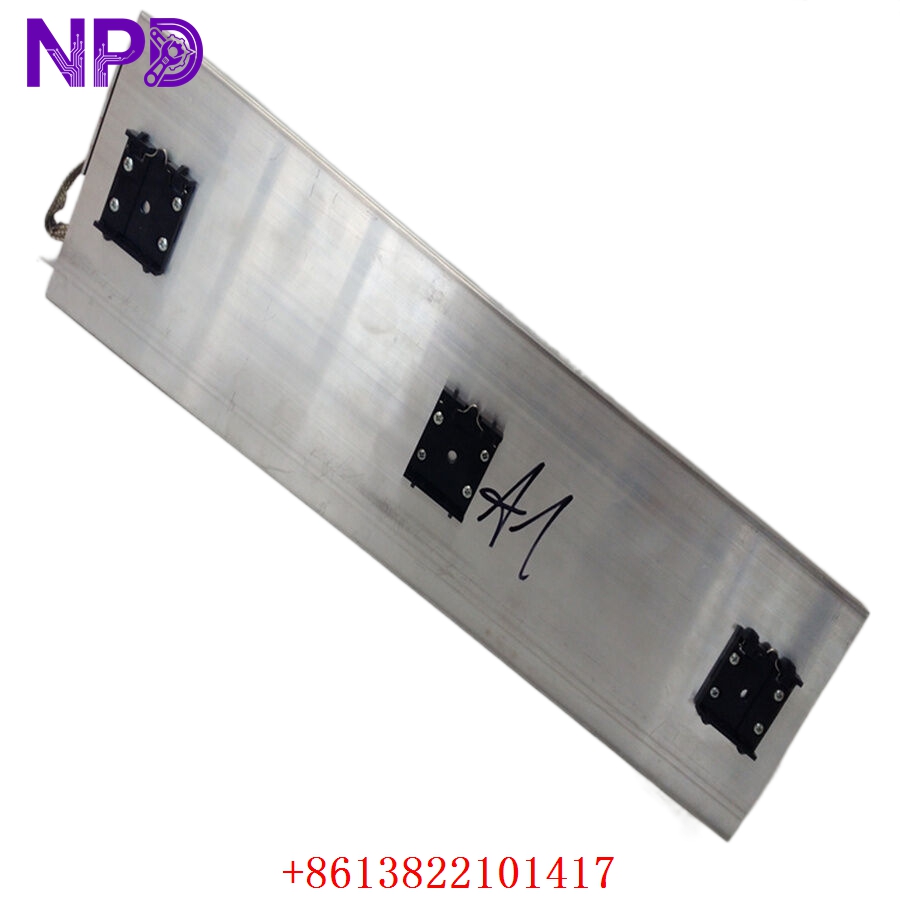

ABB UFC719AE01 3BHB003041R0101 3BHB000272R0001

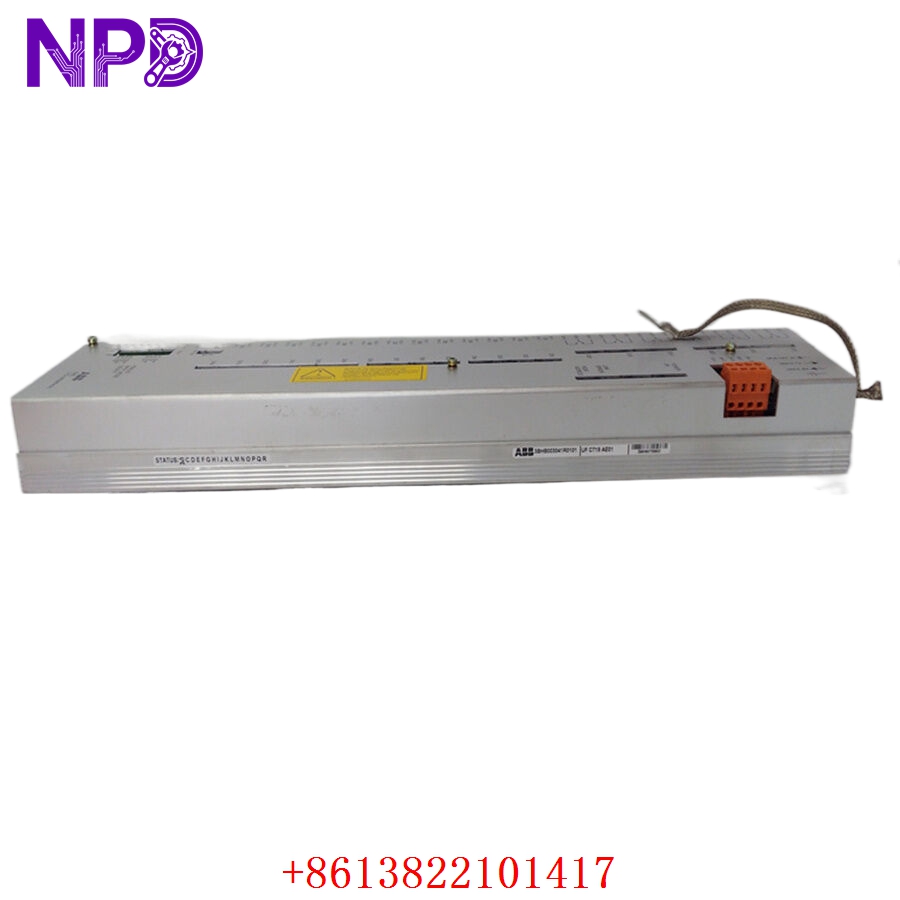

ABB UFC719AE01 3BHB003041R0101 3BHB000272R0001

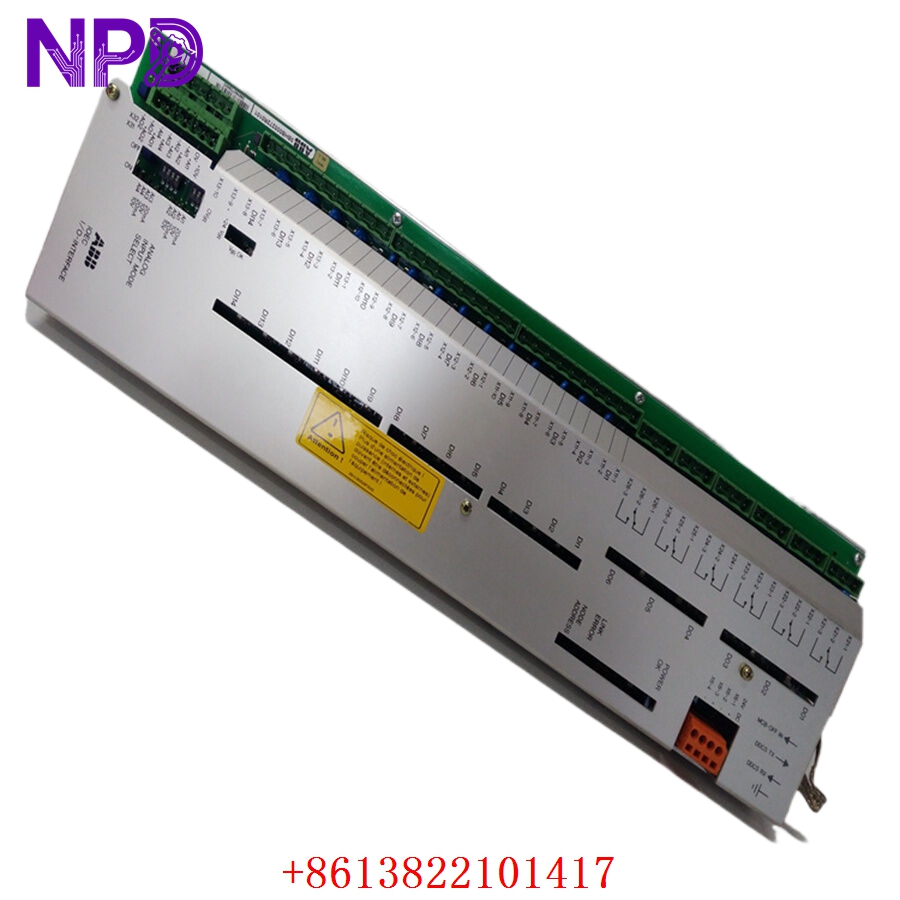

ABB UFC719AE01 3BHB003041R0101 3BHB000272R0001

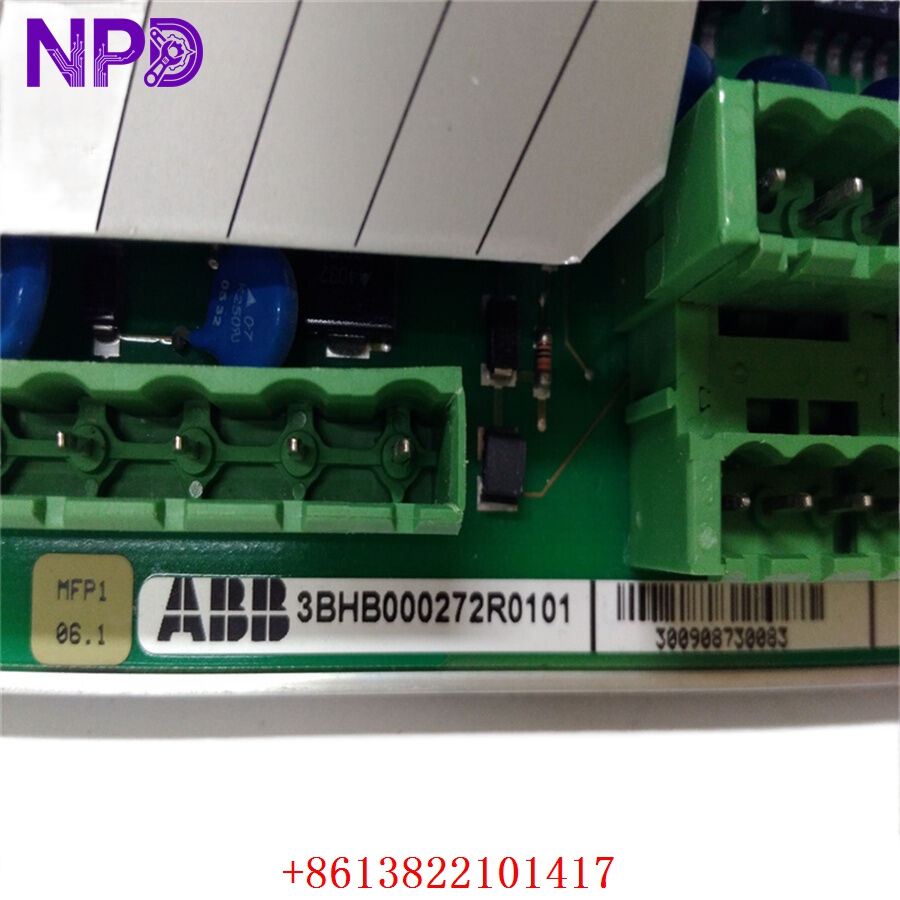

ABB UFC719AE01 3BHB003041R0101 3BHB000272R0001

Application Scenarios & Pain Points

The UFC719AE01 is a critical “fast controller” used primarily in UNITROL 6000 Excitation Systems and MEGATROL static frequency converters. Unlike a general-purpose PLC, this module is designed to handle the extremely high-speed switching requirements of power semiconductors.

The primary pain point for plant operators is the catastrophic impact of a failure. If the UFC719AE01 fails, the generator excitation is lost instantly, causing a full turbine trip. Because these units are specialized, finding replacements through standard channels can take months, leaving a power plant in a vulnerable position.

Typical Application Scenarios:

1. Large Scale Hydro & Thermal Excitation

   Managing the field current and voltage regulation for generators in the 50MW to 1000MW+ range.

2. Static Frequency Converters (SFC)

   Controlling the startup of large gas turbines by acting as a variable speed drive for the generator (turning it into a motor).

3. High-Power DC Applications

   Controlling massive rectifier banks for aluminum smelting or electrochemical production.

4. Grid Stabilization

   Managing Static Var Compensators (SVC) and STATCOM systems for voltage support on utility grids.

SOP Quality Transparency

High-performance controllers like the UFC719AE01 are highly sensitive. Our testing ensures they are ready for immediate field commissioning.

1. Fiber Optic Port Audit:

   The optical transceivers are the most common failure point. We use an optical power meter to verify that the light output and sensitivity meet the original ABB factory specifications. Ports are cleaned with specialized anti-static fiber cleaners.

2. Full Boot & Logic Test:
   • System Loading: We verify the module boots into the PEC tool environment without errors.
   • FPGA Verification: We run diagnostic scripts to ensure the high-speed FPGA fabric is fully functional and communicating with the RISC processor.
   • Memory Integrity: We perform a full read/write test on the internal Flash and RAM sectors.
3. Communication Stress Test:

   We establish a high-bandwidth Ethernet link and monitor for packet loss or latency spikes over a 24-hour “soak test” period.

4. Hardware Revision Matching:

   We verify the version codes (3BHB…) against known hardware revisions to ensure compatibility with your existing UNITROL 6000 software version.

5. Packaging:

   The unit is vacuum-sealed in a multi-layer ESD and moisture-barrier bag and shipped in a heavy-duty, foam-lined container designed for sensitive electronics.

Technical “Pitfall” Guide

Replacing a UFC719AE01 requires specific knowledge of the AC 800PEC environment.

1. Firmware Mismatch ❗

   The UFC719AE01 hardware is universal, but the behavior is defined by the firmware. A module pulled from an SFC system will not work in an Excitation system without a full firmware re-flash.

   The Fix: You must have the ABB Control Builder M or PEC Tool and the specific project source files (*.pc) to load the correct application software.

2. SFP Module Selection:

   If you are moving your fiber modules (SFP) from the old card to the new one, ensure the wave-lengths match. Some systems use 850nm (Multi-mode) and others use 1310nm (Single-mode).

   The Fix: Check the labels on your SFP transceivers. If they are mismatched, the link will stay “Down.”

3. Thermal Management ❗

   These modules run extremely hot due to the high-clock-speed FPGA.

   The Fix: Ensure the cabinet fan filters are clean. If the UFC719AE01 detects an over-temperature condition, it will shut down the generator excitation as a safety precaution.

4. Battery-Backed Data:

   If your system relies on persistent parameters stored in the UFC, verify the health of the onboard backup battery (if equipped on your specific carrier version).

Troubleshooting Quick Reference

Pro Tip: When swapping this module in a redundant system, always wait for the “SYNC” LED to turn solid before assuming the task is complete. If the module refuses to sync, check the “Version” of the software on both the active and the new standby module; they must be identical down to the build number.
